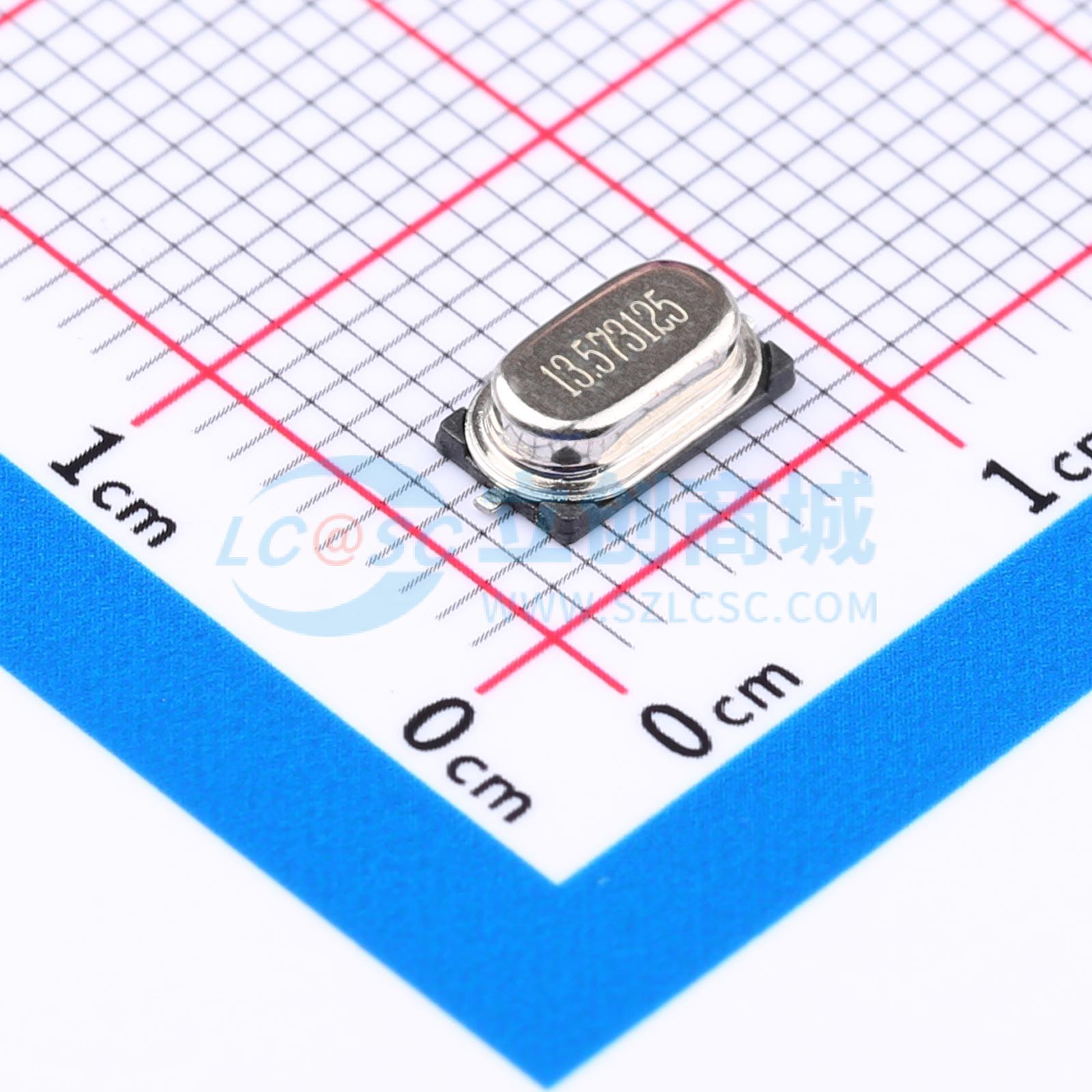

温馨提醒：图片仅供参考，商品以实物为准
S47SMD13.573125M20PF10R30B3
13.573125MHz ±10ppm 20pF
- 描述
- 石英晶体谐振器
- 品牌名称
- SOSET(索斯特)
- 商品型号
- S47SMD13.573125M20PF10R30B3
- 商品编号
- C5345019
- 商品封装
- HC-49S-SMD-2P-Mini
- 包装方式
- 编带
- 商品毛重
- 0.01克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 无源晶振 | |
| 频率 | 13.573125MHz | |
| 常温频差 | ±10ppm |
| 属性 | 参数值 | |
|---|---|---|
| 负载电容 | 20pF | |
| 频率稳定度 | ±30ppm | |
| 工作温度 | -20℃~+70℃ |
商品特性
- 频率：13.573125 MHz
- 负载电容：20 pF
- 频率公差：±10 ppm
- 工作温度范围：-20℃ ~ +70℃
- 封装：SMD
- 温度循环测试：-40℃ ~ +85℃，5次循环
- 高温高湿测试：+60℃，90% RH，96小时
- 寿命测试：+70℃，1000小时
