温馨提醒：图片仅供参考，商品以实物为准

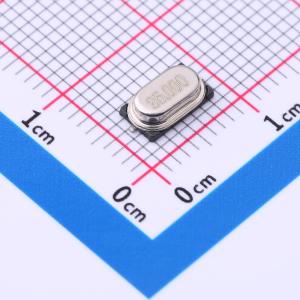

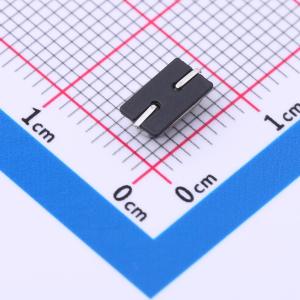

S47SMD25.000M20PF10R30B3
25MHz ±10ppm 20pF
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 石英晶体谐振器
- 品牌名称
- SOSET(索斯特)
- 商品型号
- S47SMD25.000M20PF10R30B3
- 商品编号
- C5345029
- 商品封装
- HC-49S-SMD-2P-Mini
- 包装方式
- 编带
- 商品毛重
- 0.21克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 无源晶振 | |
| 频率 | 25MHz | |
| 常温频差 | ±10ppm |
| 属性 | 参数值 | |
|---|---|---|
| 负载电容 | 20pF | |
| 频率稳定度 | ±30ppm | |
| 工作温度 | -20℃~+70℃ |
商品概述
该器件为表面贴装晶体振荡器，标称频率为25.000 MHz，频率公差为±10 ppm，工作温度范围为-40℃ ~ +85℃。其负载电容为20 pF，驱动电平为100 µW（最大值）。在+25℃条件下，年老化率不超过±3 ppm。储存温度范围为-55℃ ~ +125℃。
