温馨提醒：图片仅供参考，商品以实物为准

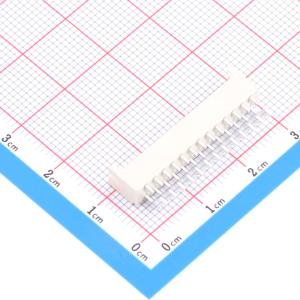

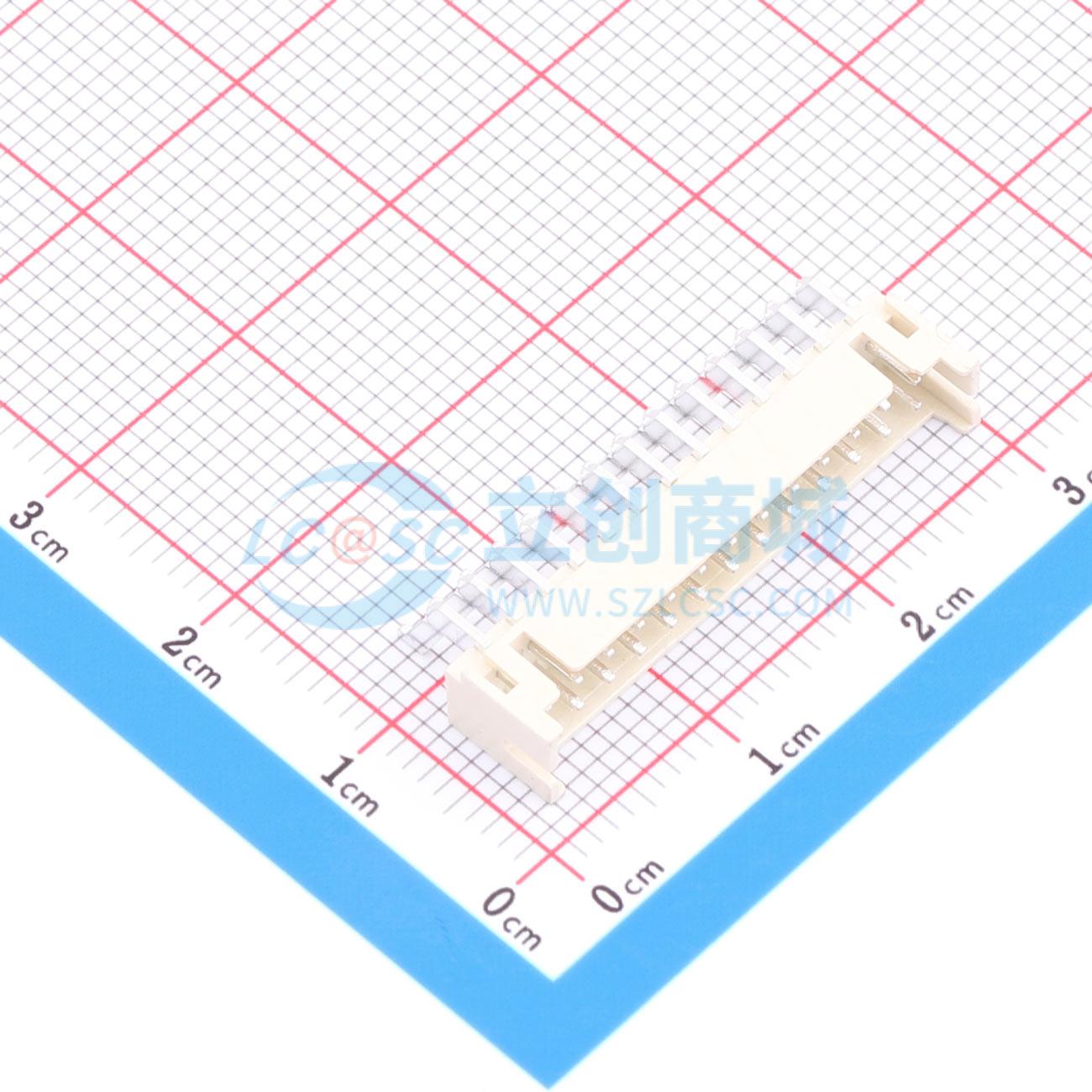

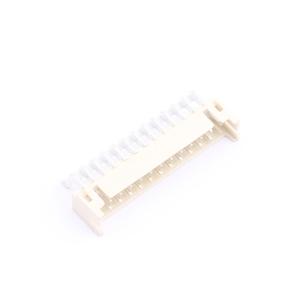

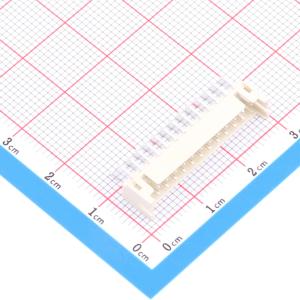

D-PHD2.0-W2-M13P42
PHD2.0mm 双排 卧贴 2*13P
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- PHD2.0mm 双排 卧贴 2*13P
- 品牌名称
- JXTCONN(聚兴泰)
- 商品型号
- D-PHD2.0-W2-M13P42
- 商品编号
- C55521922
- 商品封装
- SMD,P=2mm,卧贴
- 包装方式
- 编带
- 商品毛重
- 1.736克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x13P | |
| 间距 | 2mm | |
| 安装方式 | 卧贴 | |
| 参考系列 | PHD | |
| 总PIN数 | 26P | |
| 排数 | 2 | |
| 每排PIN数 | 13 | |
| 行距 | 2mm | |
| 额定电流 | 3A |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 铜合金 | |
| 触头镀层 | 锡 | |
| 工作温度 | -40℃~+105℃ | |
| 额定电压 | 250V | |
| 塑料材质 | LCP | |
| 阻燃等级 | UL94V-0 | |
| 颜色 | 米色 | |
| Z轴-板上高度 | 5.2mm | |
| X轴-板上底边长度(间距线) | 28mm | |
| Y轴-板上底边宽度 | 11.45mm |
