温馨提醒：图片仅供参考，商品以实物为准

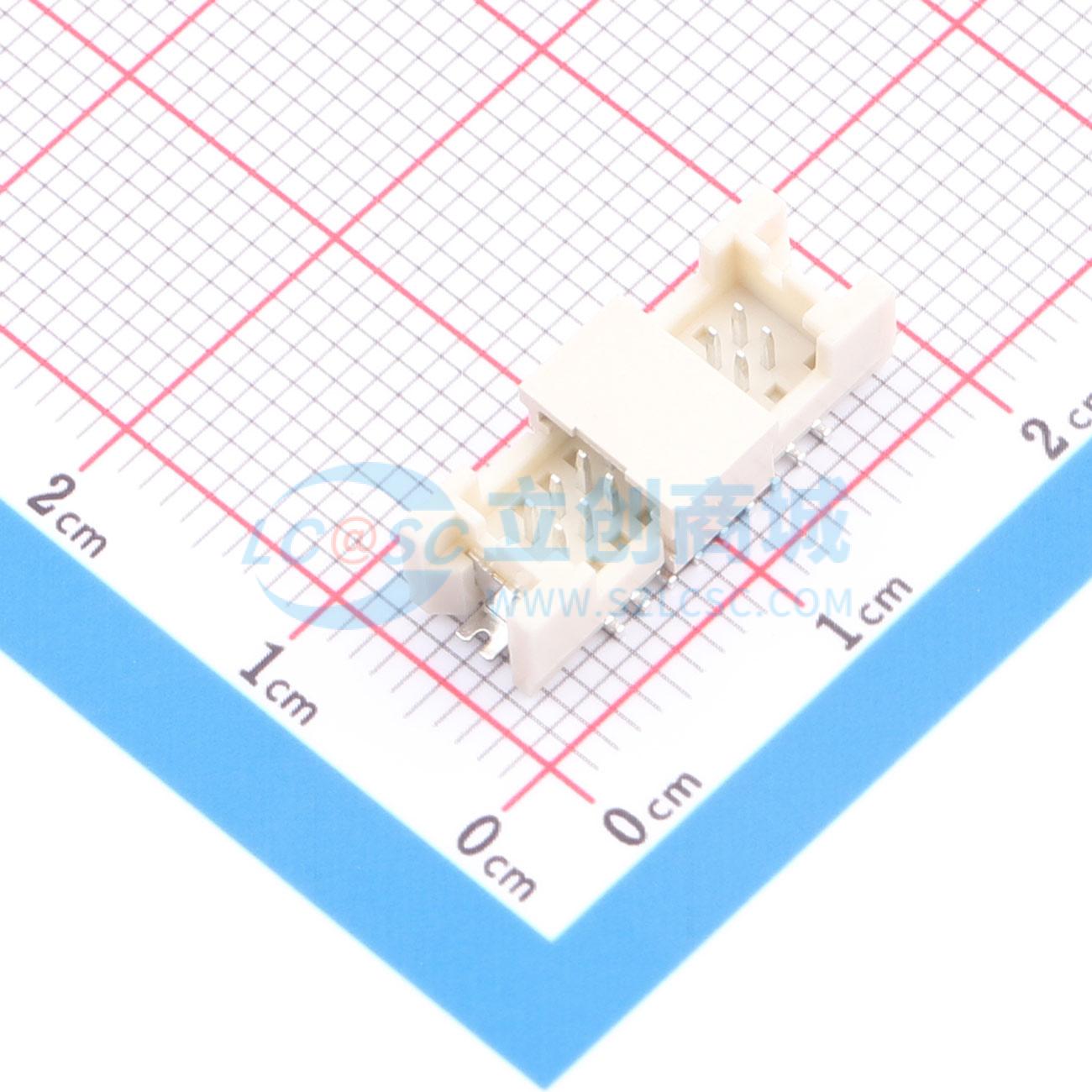

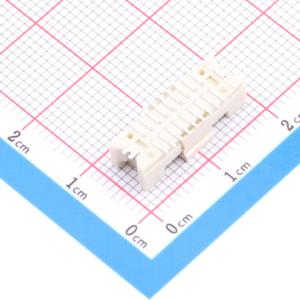

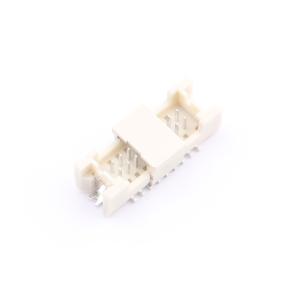

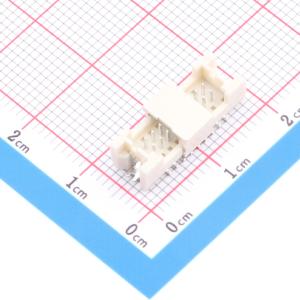

D-DF1.25-L2-Y9P41
1.25mm 双排 立贴 带柱 2*9P
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 1.25mm 双排 立贴 带柱 2*9P
- 品牌名称
- JXTCONN(聚兴泰)
- 商品型号
- D-DF1.25-L2-Y9P41
- 商品编号
- C55521929
- 商品封装
- SMD,P=1.25mm
- 包装方式
- 编带
- 商品毛重
- 0.781克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x9P | |
| 间距 | 1.25mm | |
| 安装方式 | 立贴 | |
| 参考系列 | DF | |
| 总PIN数 | 18P | |
| 排数 | 2 | |
| 每排PIN数 | 9 | |
| 行距 | 1.25mm | |
| 额定电流 | 1A |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 黄铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -40℃~+105℃ | |
| 额定电压 | 150V | |
| 塑料材质 | PA6T | |
| 阻燃等级 | UL94V-0 | |
| 颜色 | 米色 | |
| Z轴-板上高度 | 5.65mm | |
| X轴-板上底边长度(间距线) | 15.5mm | |
| Y轴-板上底边宽度 | 7.25mm |
