温馨提醒：图片仅供参考，商品以实物为准

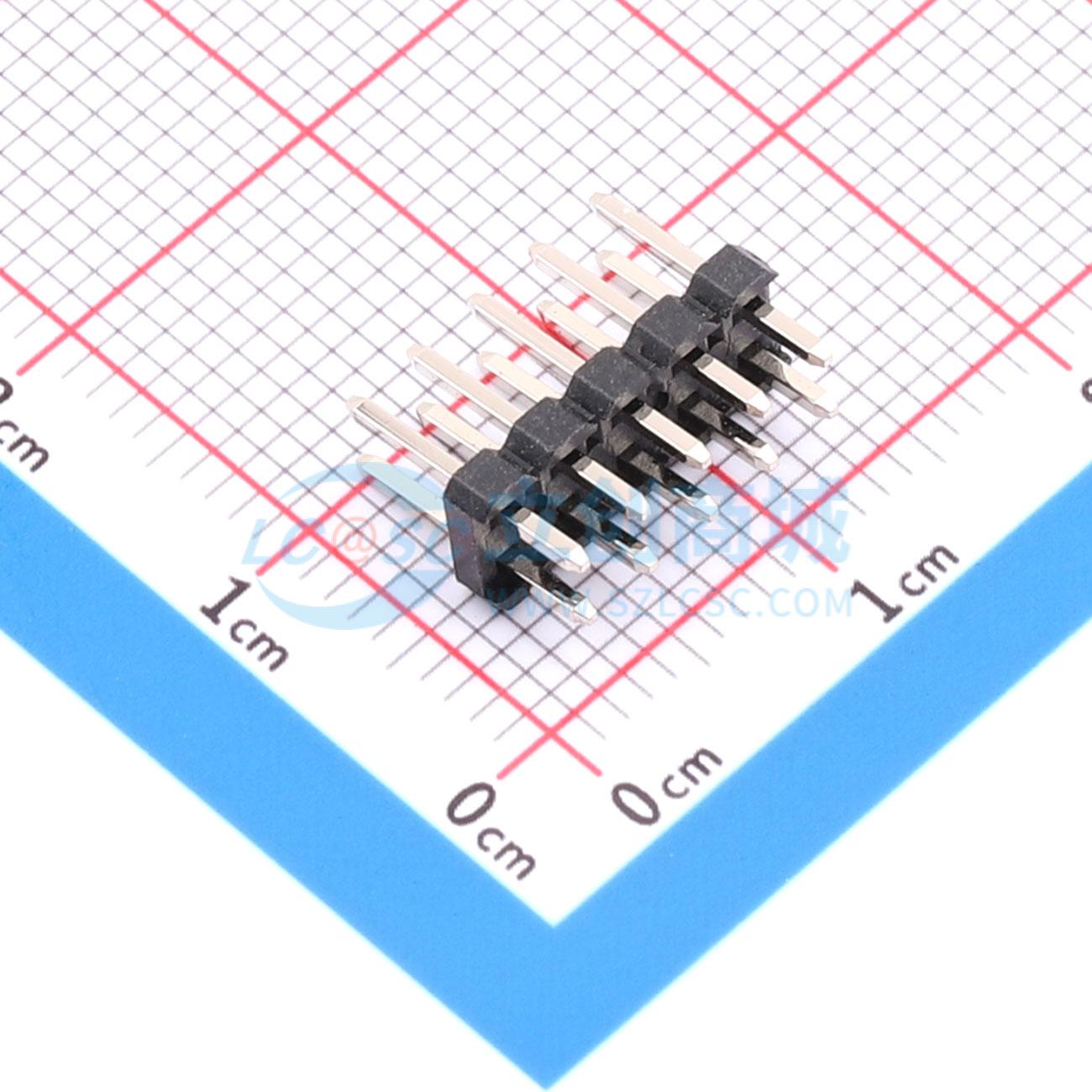

PHES04-10-G0-D-0500-0300-B-A-H1
2x5P 间距:2.54mm 方针 直插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 2.54*1.7MM排针,2*5PIN,180度，PA对插=5.0MM，PB插板=3.0MM，L针长=9.7MM ，PA6T料，镀0.8U普金，
- 品牌名称
- ANTENK(安泰珂)
- 商品型号
- PHES04-10-G0-D-0500-0300-B-A-H1
- 商品编号
- C55374988
- 商品封装
- 插件,P=2.54mm
- 包装方式
- 袋装
- 商品毛重
- 0.456897克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排针 | |
| 插针结构 | 2x5P | |
| 间距 | 2.54mm | |
| 行距 | 2.54mm | |
| 圆针/方针 | 方针 | |
| 安装方式 | 直插 | |
| 排数 | 双排 | |
| 总PIN位数 | 10P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3A | |
| 配合针长度 | 6mm | |
| 塑高 | 1.7mm | |
| 端接针长度 | 3mm | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -65℃~+125℃ | |
| 颜色 | 黑色 |
