温馨提醒：图片仅供参考，商品以实物为准

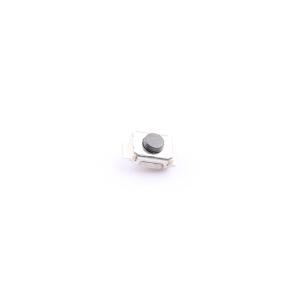

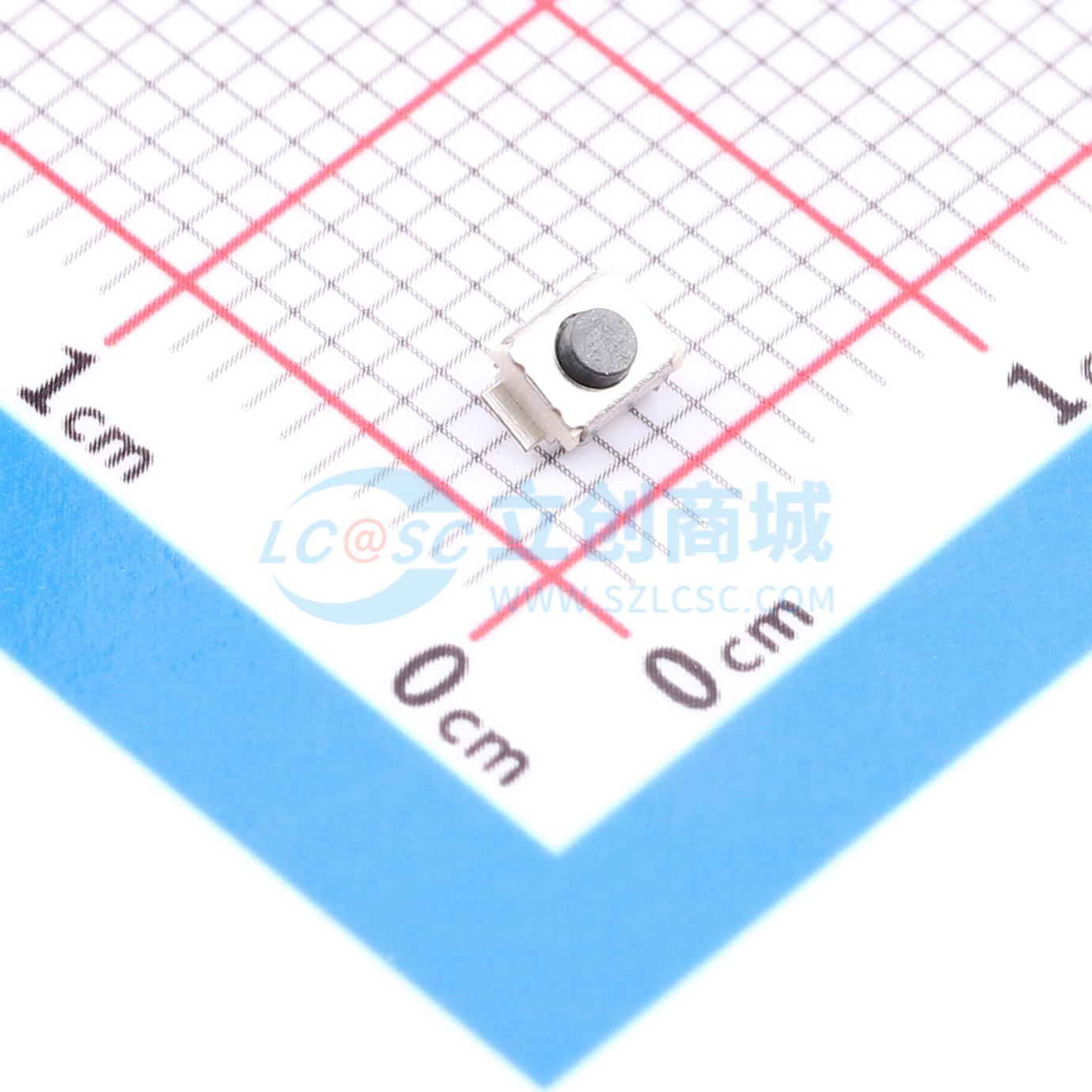

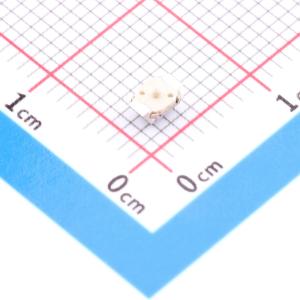

TS-064S-017250-D4-P
3*2.5*1.7mm带柱立贴轻触开关250gf
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 3.0*2.5*1.7立贴带柱250gf轻触开关
- 品牌名称
- Zhongdi(众迪)
- 商品型号
- TS-064S-017250-D4-P
- 商品编号
- C55067263
- 商品封装
- SMD,3x2.5mm
- 包装方式
- 编带
- 商品毛重
- 0.103275克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 轻触开关 | |
| 电路结构 | 单刀单掷 | |
| 按钮形状 | 圆形按钮 | |
| 作用力 | 2.5N | |
| 安装方式 | 立贴 | |
| 开关长度 | 3mm | |
| 开关宽度 | 2.5mm | |
| 开关高度 | 1.7mm |
| 属性 | 参数值 | |
|---|---|---|
| 带支架 | 不带支架 | |
| 触点电流 | 50mA | |
| 额定电压 | 12V | |
| 按钮/盖帽颜色 | 黑色 | |
| 引脚样式 | SMD接片 | |
| 工作寿命 | 10万次 | |
| 工作温度 | -25℃~+75℃ |
