温馨提醒：图片仅供参考，商品以实物为准

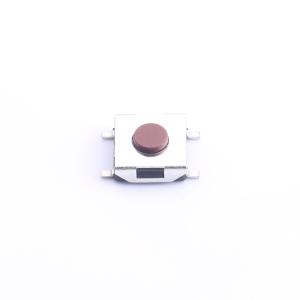

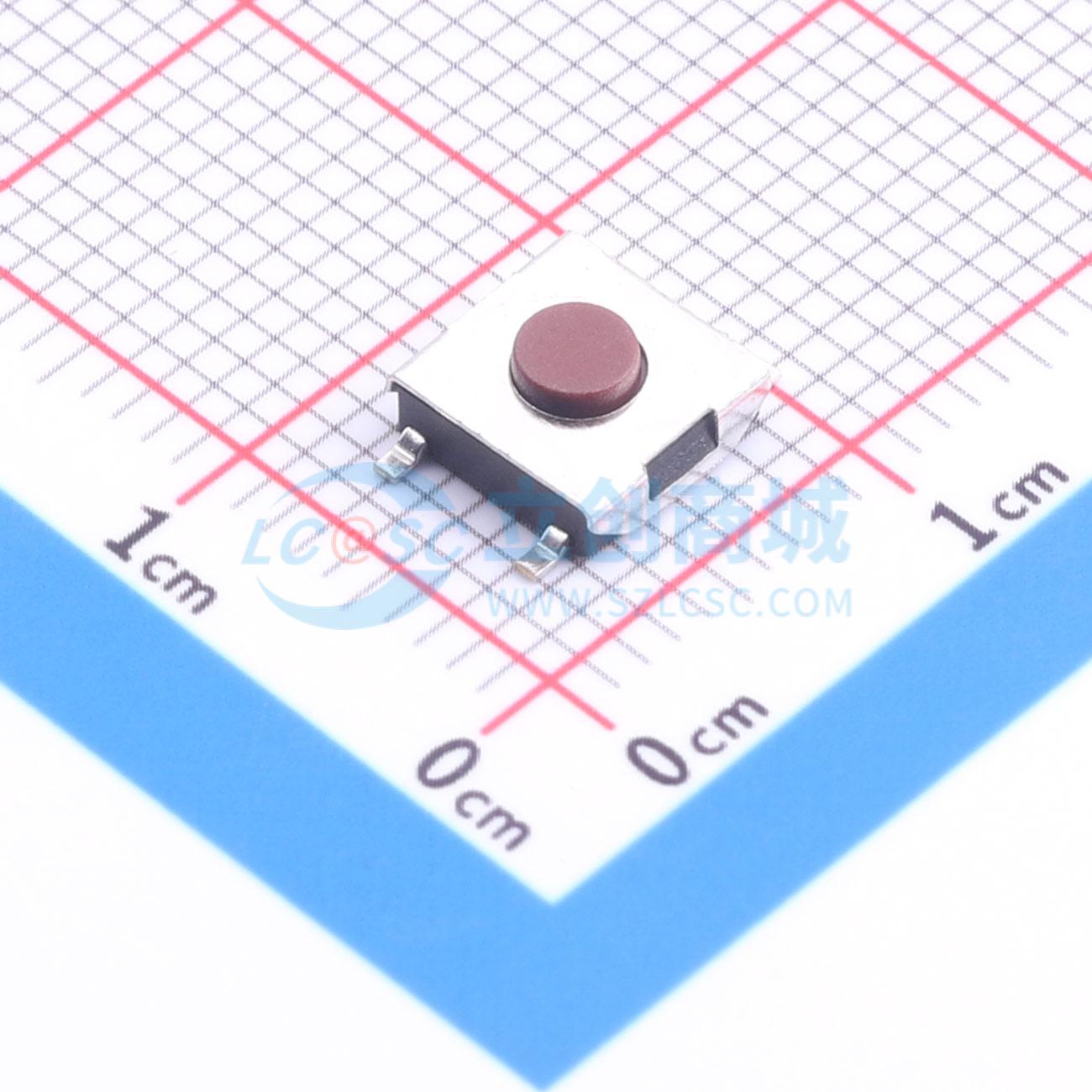

TS-080S-027180-D2-P
6.4*6.2*2.7mm 立贴四脚 轻触开关180gf
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 轻触开关,6.2x6.2x2.7,贴片,红色按钮四脚,180gf
- 品牌名称
- Zhongdi(众迪)
- 商品型号
- TS-080S-027180-D2-P
- 商品编号
- C55067274
- 商品封装
- SMD-4P,6.4x6.2mm
- 包装方式
- 编带
- 商品毛重
- 0.3982克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 轻触开关 | |
| 电路结构 | 单刀单掷 | |
| 按钮形状 | 圆形按钮 | |
| 作用力 | 1.8N | |
| 安装方式 | 立贴 | |
| 开关长度 | 6.4mm | |
| 开关宽度 | 6.2mm | |
| 开关高度 | 2.7mm |
| 属性 | 参数值 | |
|---|---|---|
| 带支架 | 不带支架 | |
| 触点电流 | 50mA | |
| 额定电压 | 12V | |
| 按钮/盖帽颜色 | 红色 | |
| 引脚样式 | 鸥翼型 | |
| 工作寿命 | 20万次 | |
| 工作温度 | -25℃~+75℃ |
