温馨提醒：图片仅供参考，商品以实物为准
FG-TC-06G-05-A6.8B6.8

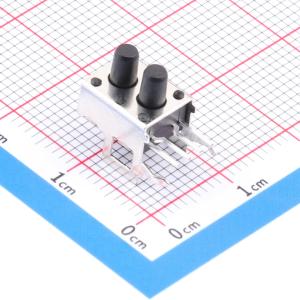

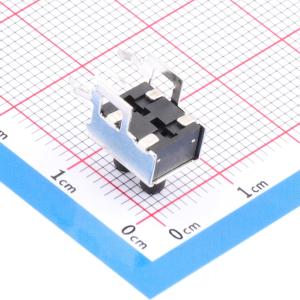

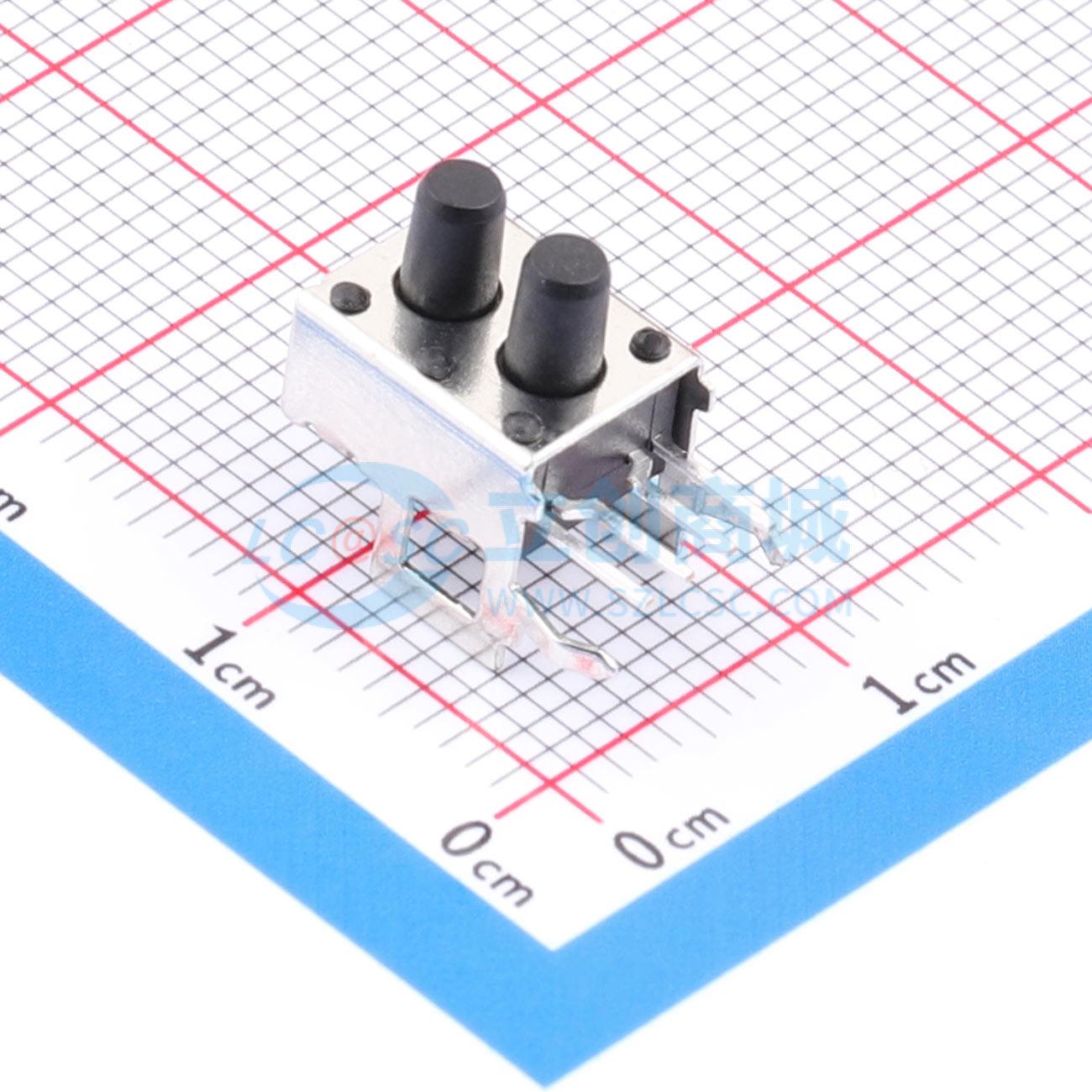

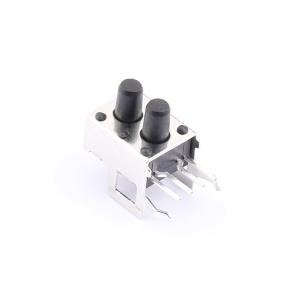

TC-06G-05-A6.8B6.8 特小双连支架上6.8H下6.8H160G不锈钢簧片ROHS
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- TC-06G-05-A6.8B6.8 特小双连支架上6.8H下6.8H160G不锈钢簧片ROHS
- 品牌名称
- FG(富港)
- 商品型号
- FG-TC-06G-05-A6.8B6.8
- 商品编号
- C54141276
- 商品封装
- 弯插-6P,9.7x7.3mm
- 包装方式
- 盒装
- 商品毛重
- 1.044608克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 轻触开关 | |
| 电路结构 | 双刀单掷 | |
| 按钮形状 | 圆形按钮 | |
| 作用力 | 1.6N | |
| 安装方式 | 弯插 | |
| 开关长度 | 9.7mm | |
| 开关宽度 | 7.3mm | |
| 开关高度 | 8.3mm |
| 属性 | 参数值 | |
|---|---|---|
| 带支架 | 带支架 | |
| 触点电流 | 50mA | |
| 额定电压 | 12V | |
| 按钮/盖帽颜色 | 黑色 | |
| 引脚样式 | PC引脚 | |
| 工作寿命 | 8万次 | |
| 工作温度 | -25℃~+85℃ |
