温馨提醒：图片仅供参考，商品以实物为准

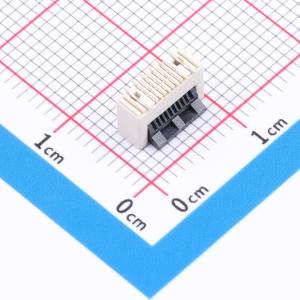

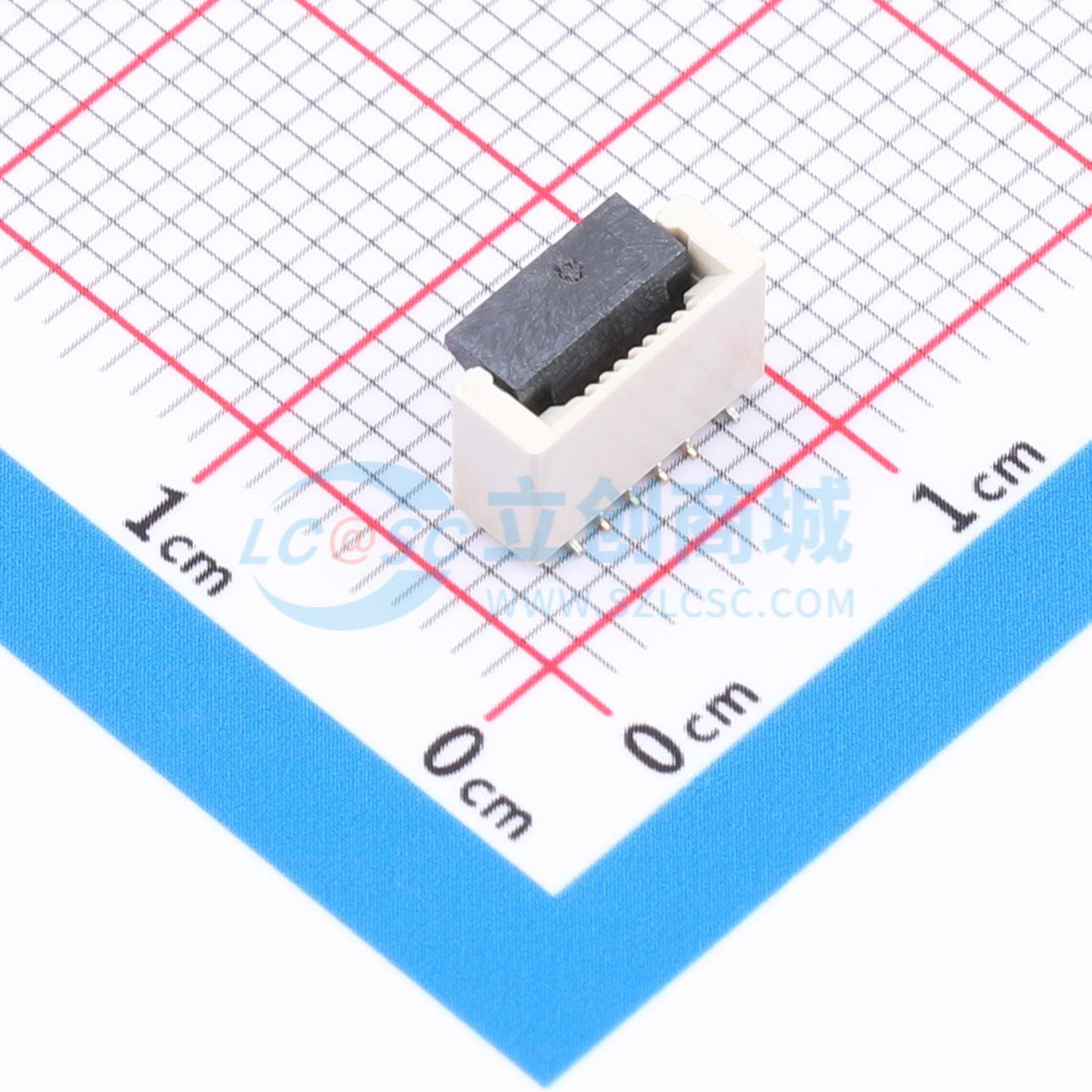

JXT-FC05-LC8PH52
翻盖式 P数:8P 间距:0.5mm
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 0.5-5.2H 8P 点镀金 立贴翻盖式 带扣
- 品牌名称
- JXTCONN(聚兴泰)
- 商品型号
- JXT-FC05-LC8PH52
- 商品编号
- C53432906
- 商品封装
- SMD,P=0.5mm(交错脚)
- 包装方式
- 编带
- 商品毛重
- 0.281克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | FFC/FPC连接器 | |
| 锁定特性 | 翻盖式 | |
| 触点数量 | 8P | |
| 间距 | 0.5mm | |
| 安装方式 | 立贴 | |
| 接入柔性电缆厚度 | 0.3mm |
| 属性 | 参数值 | |
|---|---|---|
| 板上高度 | 5.2mm | |
| 触头材质 | 铜合金 | |
| 触头镀层 | 金 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 50V | |
| 额定电流 | 500mA |
商品特性
- 塑件表面应光洁、无毛边、无明显收缩、缺陷、裂纹等现象
- 温度范围：-25°C ~ 85°C
- 额定电压：50V，AC/DC（等效）
- 接触电阻：50mΩ
- 绝缘电阻：≥500MΩ
- 耐电压：150V AC/Minute
应用领域
适用扁平线
