温馨提醒：图片仅供参考，商品以实物为准

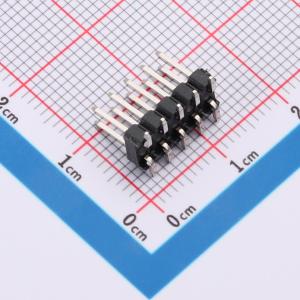

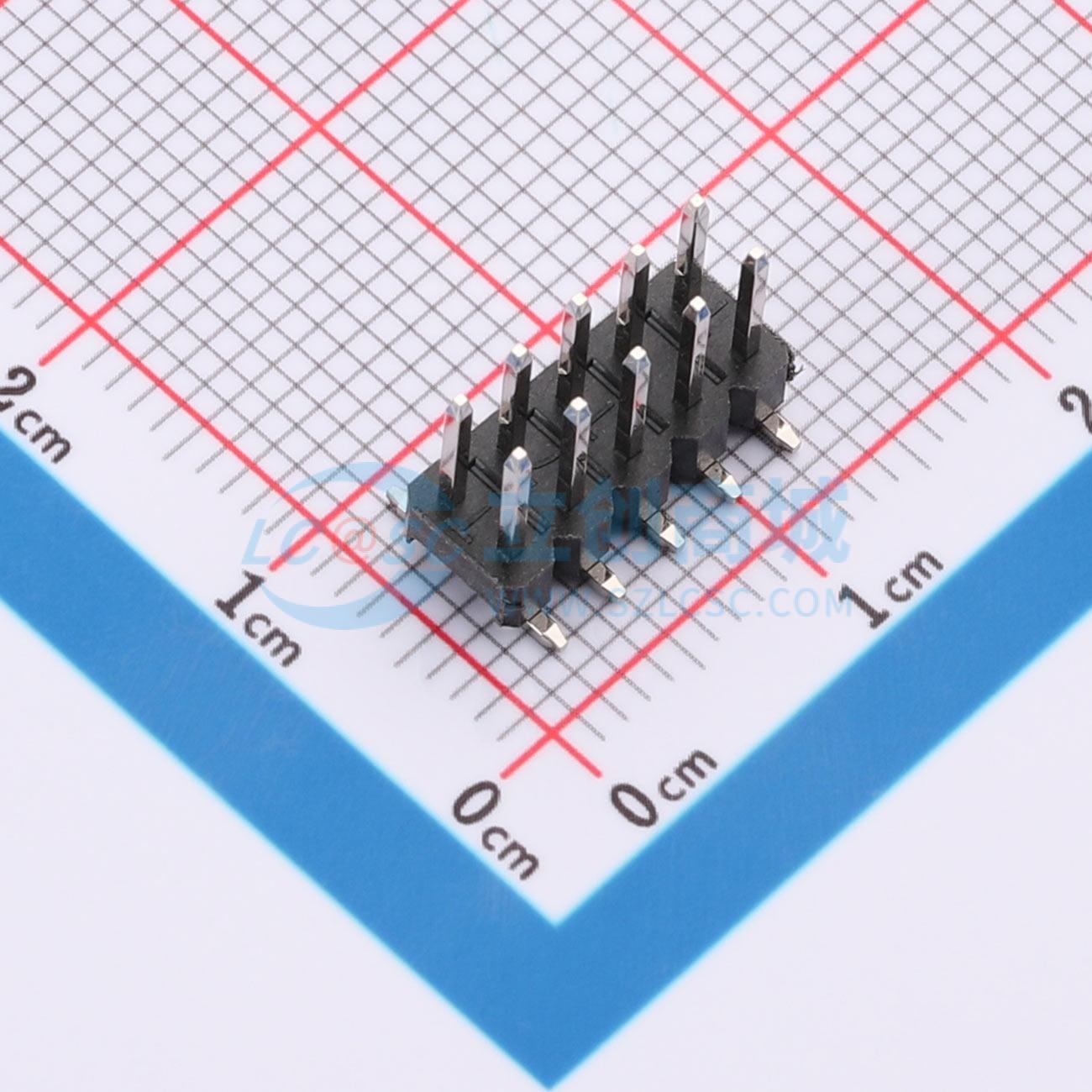

XY-PZ2.54VS-02-10P
2x5P 间距:2.54mm 方针 立贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 2x5P 间距:2.54mm 方针 弯插
- 品牌名称
- XYECONN(辛译)
- 商品型号
- XY-PZ2.54VS-02-10P
- 商品编号
- C53244535
- 商品封装
- SMD,P=2.54mm
- 包装方式
- 袋装
- 商品毛重
- 0.6072克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排针 | |
| 插针结构 | 2x5P | |
| 间距 | 2.54mm | |
| 行距 | 2.54mm | |
| 圆针/方针 | 方针 | |
| 安装方式 | 立贴 | |
| 排数 | 双排 | |
| 总PIN位数 | 10P | |
| 额定电流 | 3A |
| 属性 | 参数值 | |
|---|---|---|
| 额定电压 | - | |
| 配合针长度 | 6mm | |
| 塑高 | 2.5mm | |
| 端接针长度 | - | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -40℃~+105℃ | |
| 颜色 | - | |
| 附加特征 | - |
