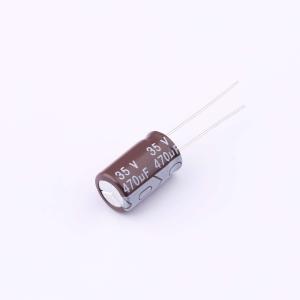

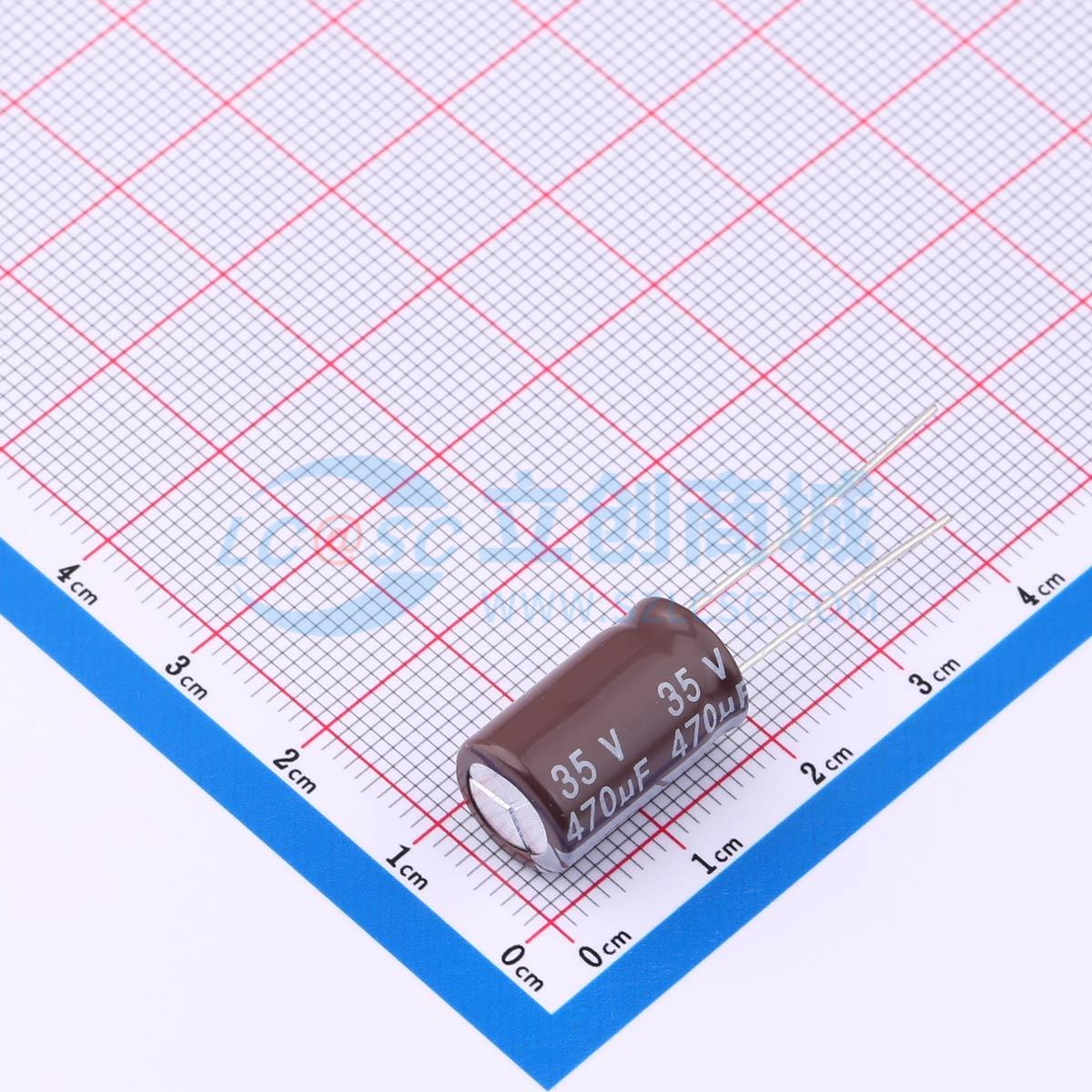

DHG035M477H160S1AA
470uF ±20% 35V
- 描述
- 35V 470UF 直插铝电解电容
- 品牌名称
- KNSCHA(科尼盛)
- 商品型号
- DHG035M477H160S1AA
- 商品编号
- C46551001
- 商品封装
- 插件,D10xL16mm
- 包装方式
- 袋装
- 商品毛重
- 1.7356克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 直插铝电解电容 | |
| 容值 | 470uF | |
| 精度 | ±20% | |
| 额定电压 | 35V | |
| 纹波电流 | 1.3A@100kHz | |
| 等效串联电阻(ESR) | 50mΩ@100kHz |
| 属性 | 参数值 | |
|---|---|---|
| 脚间距 | 5mm | |
| 电容体直径 | 10mm | |
| 电容体长度 | 16mm | |
| 工作寿命 | 5000hrs@105℃ | |
| 工作温度 | -40℃~+105℃ |
优惠活动
购买数量
(250个/袋，最小起订量 10 个)个
起订量：10 个250个/袋
总价金额：
￥ 0.00近期成交1单
