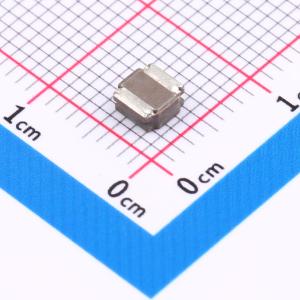

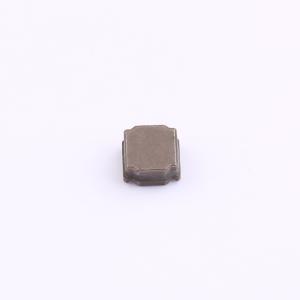

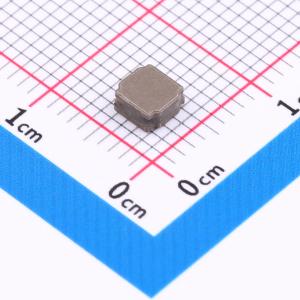

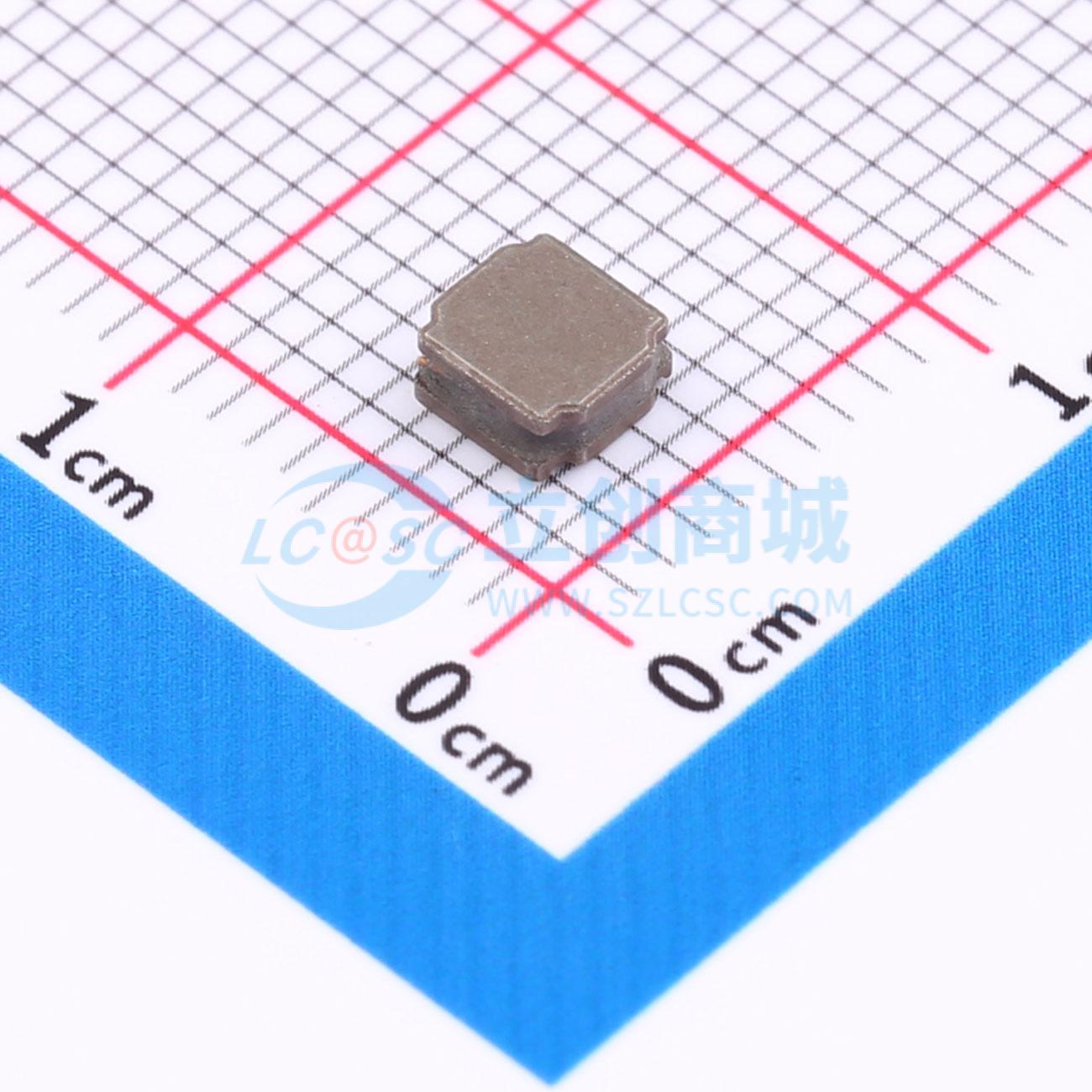

温馨提醒：图片仅供参考，商品以实物为准
SMHT4020-100MT
10uH ±20% 2.8A
- 描述
- SMD,4.0x4.0x2.0mm，温升电流(Irms):2A,大电流,合金磁胶电感
- 品牌名称
- SXN(顺翔诺)
- 商品型号
- SMHT4020-100MT
- 商品编号
- C42924178
- 商品封装
- SMD,4x4mm
- 包装方式
- 编带
- 商品毛重
- 0.247333克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 10uH | |
| 精度 | ±20% |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 2A | |
| 饱和电流(Isat) | 2.8A | |
| 直流电阻(DCR) | 220mΩ |
商品特性
- 磁性胶水涂敷结构极大减少了蜂鸣声
- 直接在磁芯上金属化电极,抗跌落冲击强经久耐用
- Magnetic-resin shielded construction reduces buzz Noise to ultra-low levels
- Alloy core provides large saturation current
- Metallization on Ferrite Core results in excellent shock Resistance and damage-free durability
- Closed magnetic circuit design reduces leakage Flux and Electro Magnetic Interference (EMI)
- Takes up less PCB real estate and save more power Small parasitic capacitance
- RoHS, Halogen Free and REACH Compliance
