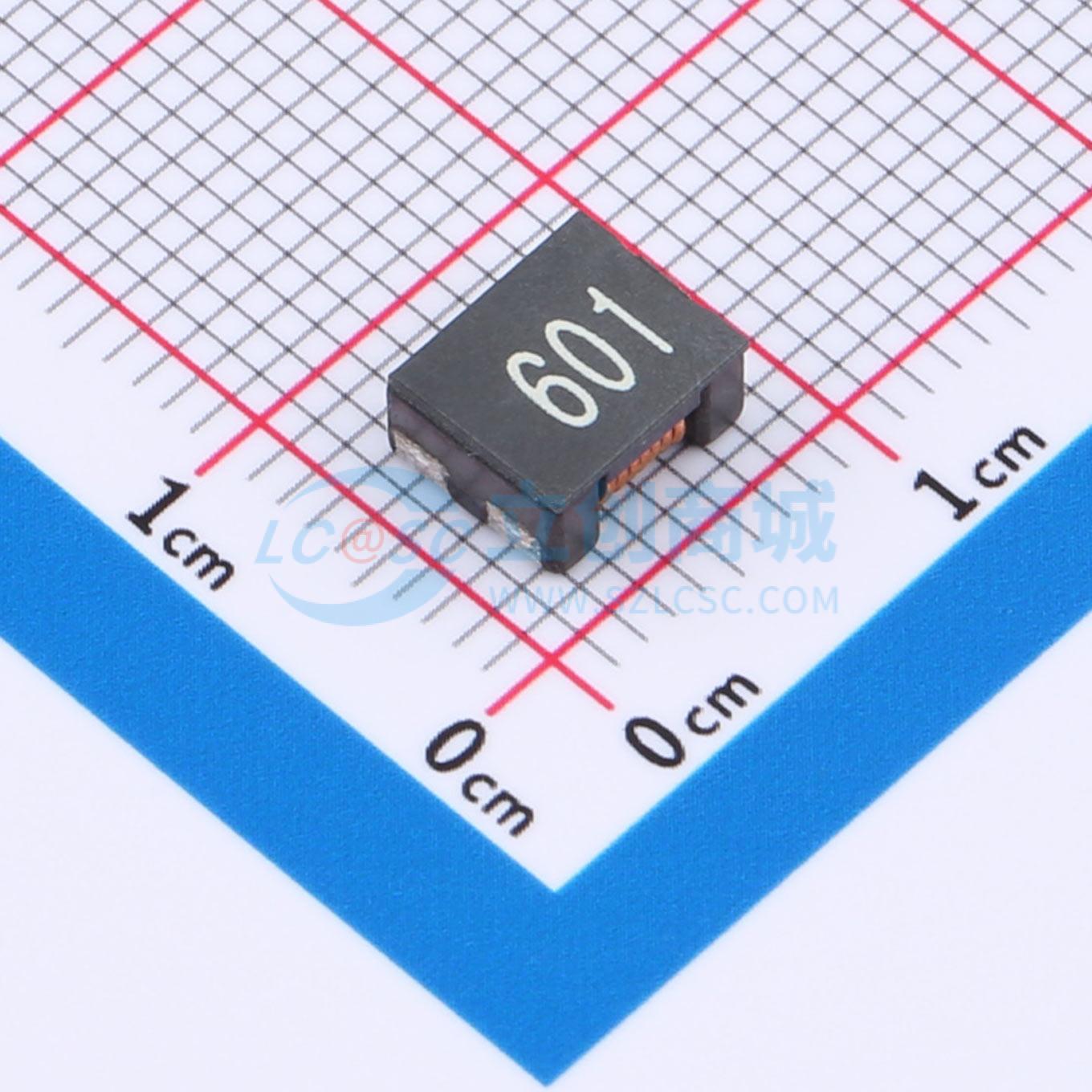

温馨提醒：图片仅供参考，商品以实物为准

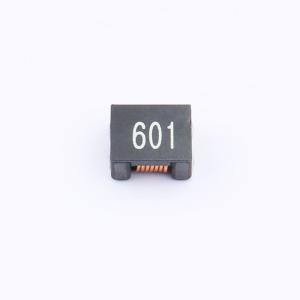

AL-7060A-601T0
线绕结构共模扼流圈，具备最佳EMI抑制效果，适用于电源线抗共模噪声辐射，兼容RoHS指令和AEC-Q200
- 描述
- 共模阻抗：600Ω 100MHz 额定电流：5.0A
- 品牌名称
- EEC(绵阳敦源)
- 商品型号
- AL-7060A-601T0
- 商品编号
- C42394196
- 商品封装
- SMD-4P,7.5x6mm
- 包装方式
- 编带
- 商品毛重
- 0.636克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 共模滤波器 | |
| 线路数 | 2 | |
| 电感@频率 | - | |
| 额定电流 | 5A | |
| 阻抗@频率 | 600Ω@100MHz |
| 属性 | 参数值 | |
|---|---|---|
| 额定电压 | 125V | |
| 耐电压 | - | |
| 直流电阻(DCR) | 10mΩ | |
| 工作温度 | -40℃~+125℃ | |
| 绝缘电阻 | 10MΩ |
