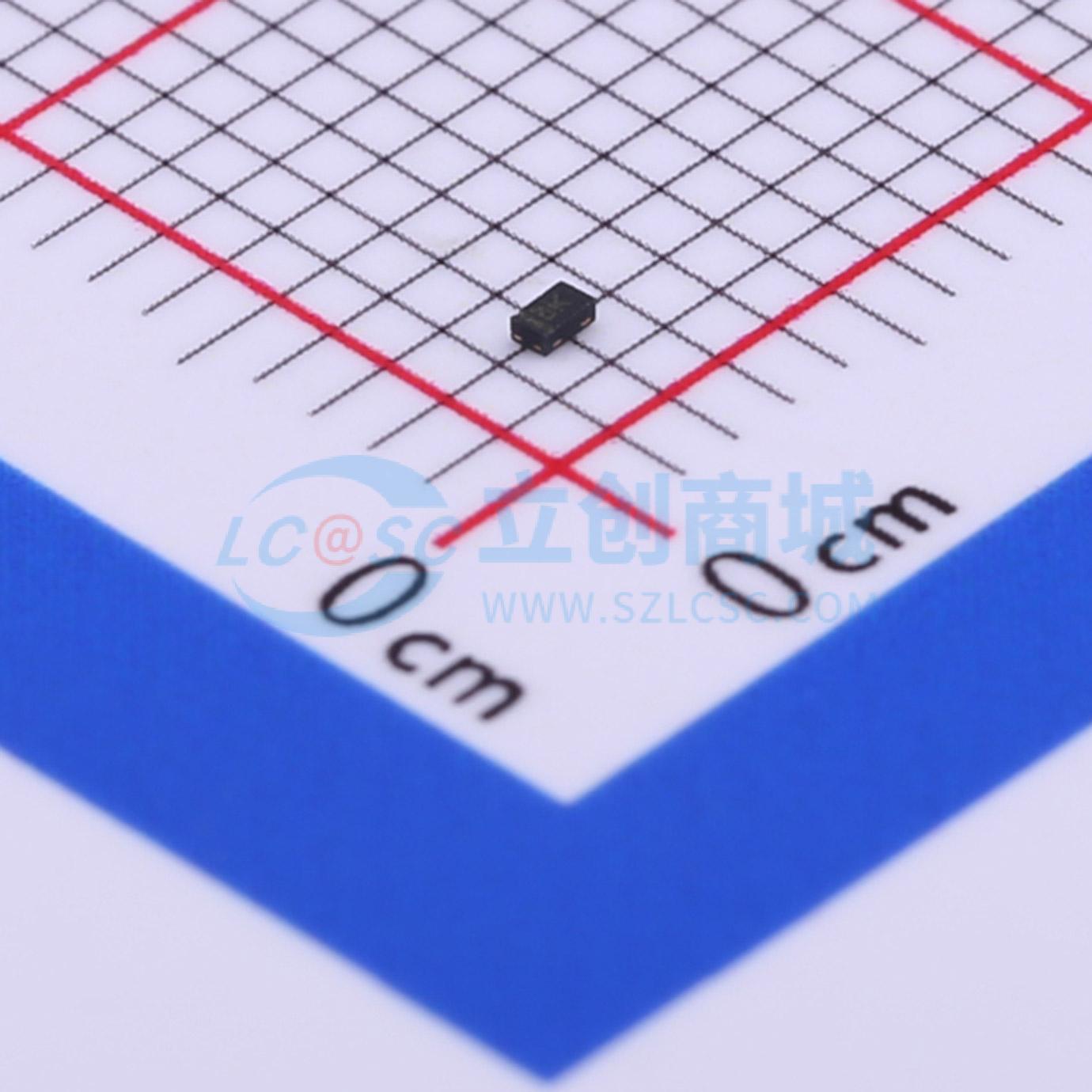

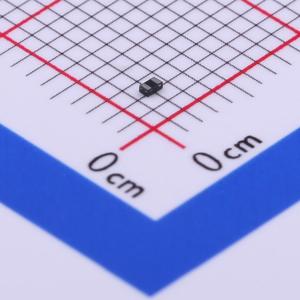

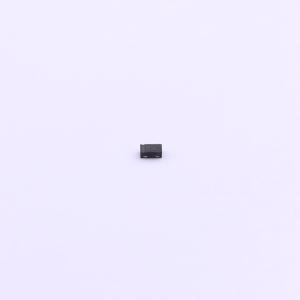

TPD1E05U06DPYR

单向 5.5V 2.5A@8/20us

SMT扩展库SMT补贴嘉立创PCB免费打样

私有库下单最高享92折

描述: TPD1E05U06 适用于高速接口且采用 0402 封装的 0.5pF、5.5V、±12kV ESD 保护二极管
品牌名称: TI(德州仪器)
商品型号: TPD1E05U06DPYR
商品编号: C436349
商品封装: X1SON-2(0.6x1)
包装方式: 编带
商品毛重: 0.008克(g)

商品参数

商品概述

TPDxE05U06 is a product series of electrostatic discharge (ESD) protection diodes based on unidirectional transient voltage suppressors (TVS), featuring ultra-low capacitance. The ESD shock dissipation value of each device is higher than the highest level specified in the IEC61000-4-2 international standard. The ultra-low load capacitance characteristic of TPDxE05U06 makes this device highly suitable for protecting any high-speed signal pins.

商品特性

IEC61000-4-2 Level 4 ESD protection: ±12kV contact discharge, ±15kV air-gap discharge
IEC 61000-4-4 EFT protection - 80A (5/50ns)
IEC 61000-4-5 surge protection -2.5A (8/20μs)
IO capacitance: 0.42pF to 0.5pF (typical)
DC breakdown voltage: 6.5V (minimum)
Ultra-low leakage current: 10nA (maximum)
Low ESD clamping voltage
Industrial temperature range: -40°C to +125°C
Simple through-wiring package
Industry-standard SOD-523 package (1.60mmx0.80mmx0.65mm)

应用领域

HDMI 1.4b
HDMI 2.0
USB 3.0
MHL
LVDS interface
DisplayPort
PCI-express
eSata interface
V-by-One HS

	属性	参数值
	商品目录	静电和浪涌保护(TVS/ESD)
	极性	单向
	反向截止电压(Vrwm)	5.5V
	钳位电压	14V
	峰值脉冲电流(Ipp)	2.5A@8/20us
	峰值脉冲功率(Ppp)	40W@8/20us
	击穿电压	8.5V

	属性	参数值
	反向电流(Ir)	10nA
	通道数	单路
	工作温度	-40℃~+125℃
	防护等级	IEC 61000-4-4；IEC 61000-4-5；IEC 61000-4-2
	类型	ESD
	Cj-结电容	0.42pF
