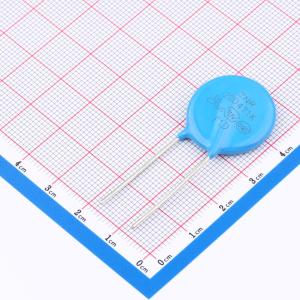

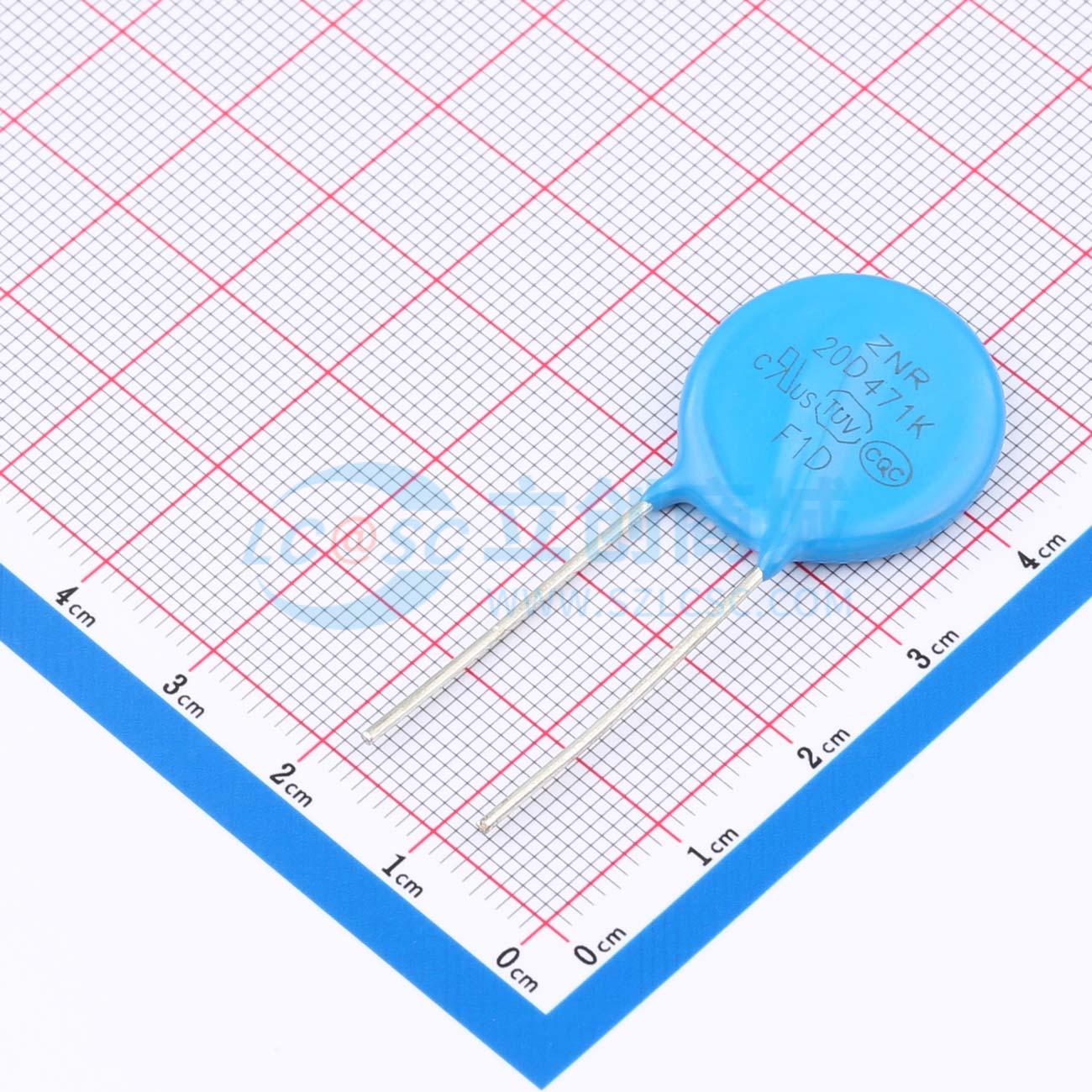

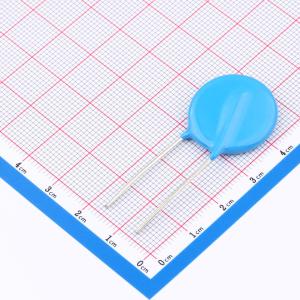

RM20D471KE1IE100

壓敏電阻是一種具有在一定的電壓條件下支援電流急速流出的電壓-電流特性的產品。 壓敏電阻的作用：保護在電子線路中的電子元器件免受過電壓的影響。當有脈衝(脈衝電流Is：由脈衝電壓Vs和阻抗Zs決定)施加在電路上时，脈衝電流（Is）限制脈衝電壓在壓敏電阻的限制電壓Vc之內。 由於可承受電壓大於最大的限定電壓，電路可以長时間的免於脈衝電壓的損壞。 Owing to the characteristic, the varistors are extremely effective as protecting devices of electronic and electric equipment by absorption of abnormal voltages and lightening pulses.

• 符合RoHS 2.0、REACH及無鹵 Comply with rohs 2.0, reach, halogen-free available.
• 安規認證Safety certification
• 18V~360V is only applicable to GB/T 10193-1997, GB/T 10194-1997
• Additional test for 10D, 14D, 20D series: Annex Q of IEC 60950-1:2005/A2:2013, clause 14.13 of IEC 60065:2014 and clause G.8.1 of IEC 62368-1:2018.
• 标准型85℃到125℃降额系数为2.5%/℃ D type: 85°C to 125°C derating factor: 2.5% per °C
• 儲存溫度範圍 Storage temperature range: -55°C~+125°C
• 絕緣電壓 Insulation voltage: 2500V 60s (body Insulation)

• 消費電子產品：電視機、音訊輸出設備、安全插座、機上盒等 Consumer electronics products: television, audio output device, safety plug, STB etc.
• 工業產品：馬達、半導體元件、繼電器、電磁開關、電源線路、三相整流線路、自動控制線路等 Industrial products: motor, semiconductor component, relay, electromagnetic switch, power circuit, three-phase rectifier circuit, automatic control circuit etc.
• 通信設備：電話機、傳真機、交換機等 Communication equipment: Telephone, facsimile, exchanger etc.
• 電腦：電腦、顯示器、印表機、掃描器、電源、電源適配器等 Computer: computer, displayer, printer, scanner, power supply, adapter etc.
• 汽車電子產品 Automotive electronics products
