- 引脚图

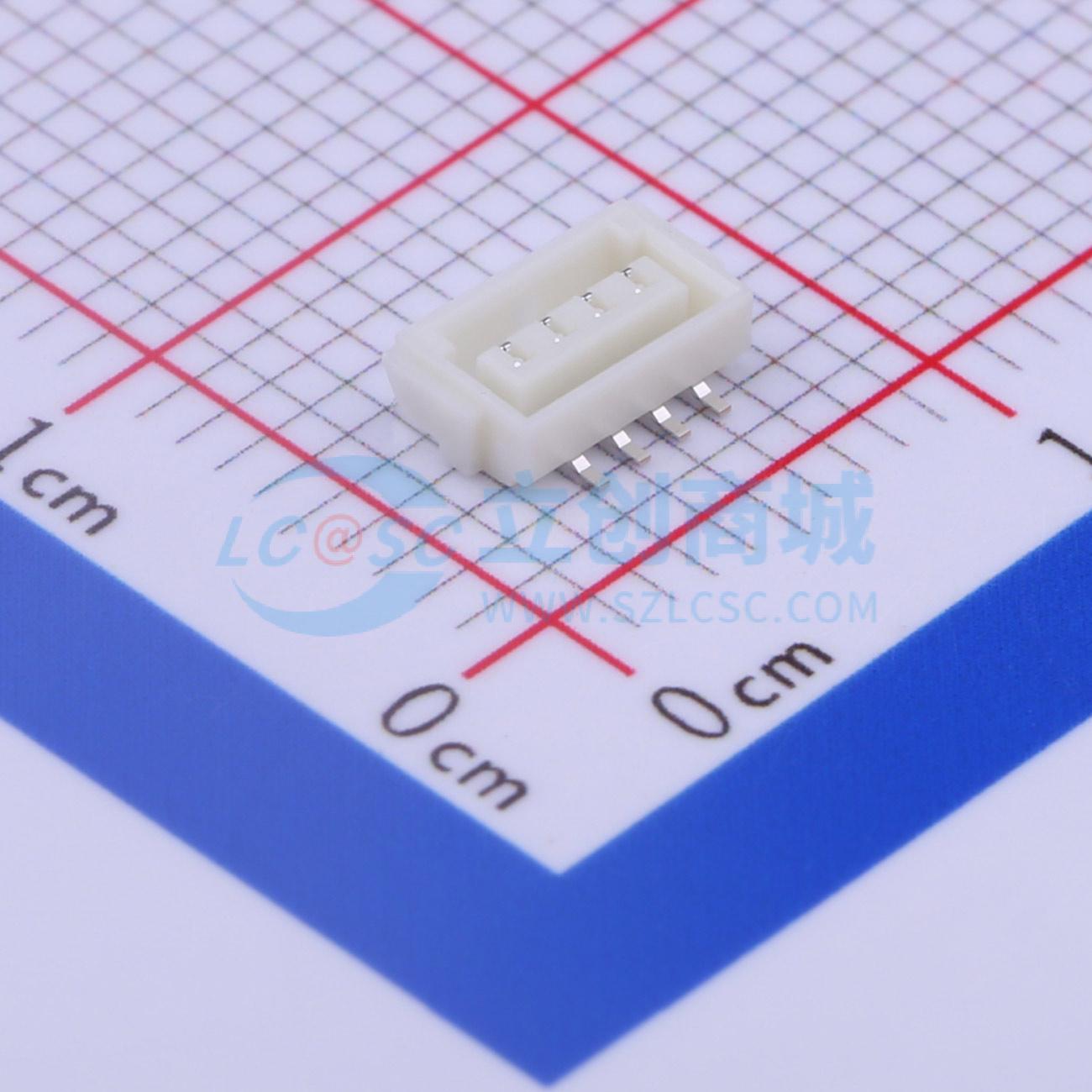

温馨提醒：图片仅供参考，商品以实物为准
BM04B-ASRS-TF(LF)(SN)
1x4P 立贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 特性：紧凑。双U型槽绝缘位移部分。三点夹紧结构。专为真空拾放机器人设计的插头
- 品牌名称
- JST
- 商品型号
- BM04B-ASRS-TF(LF)(SN)
- 商品编号
- C265374
- 商品封装
- SMD,P=1mm
- 包装方式
- 编带
- 商品毛重
- 0.154克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x4P | |
| 安装方式 | 立贴 | |
| 总PIN数 | 4P | |
| 排数 | 1 | |
| 每排PIN数 | 4 | |
| 额定电流 | 700mA |
| 属性 | 参数值 | |
|---|---|---|
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 50V | |
| 塑料材质 | PA6T | |
| Z轴-板上高度 | 3.5mm | |
| X轴-板上底边长度(间距线) | 6.4mm | |
| Y轴-板上底边宽度 | 3.6mm |
