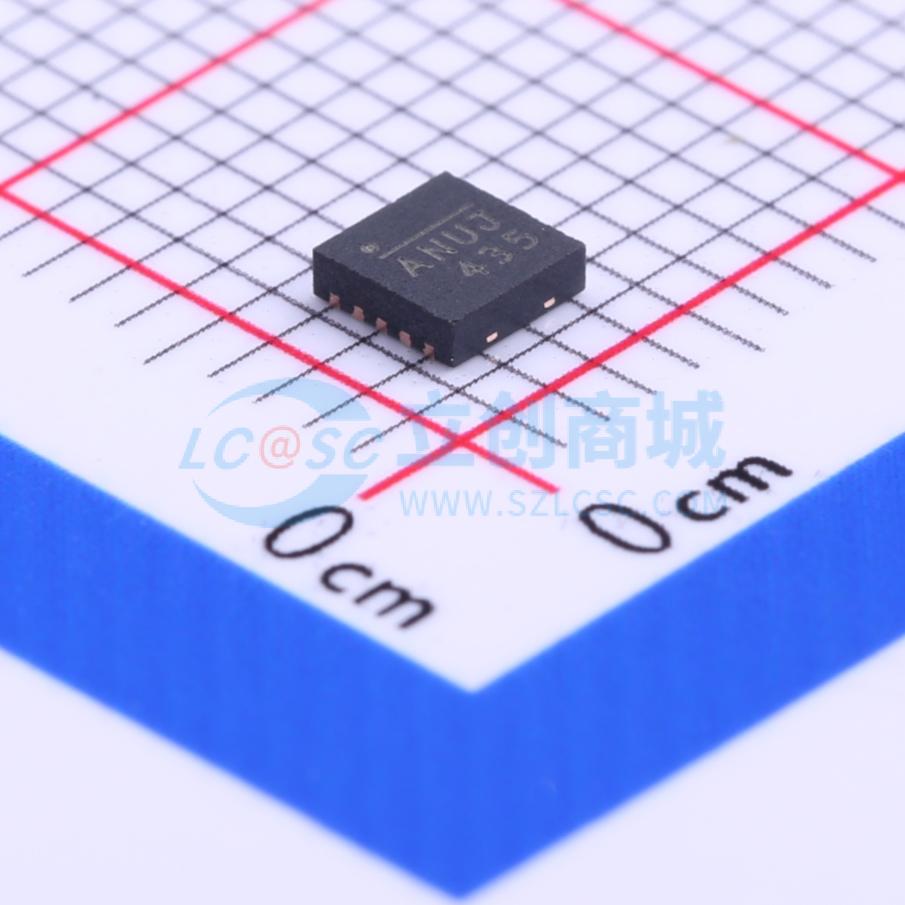

The MP8003A is an IEEE, 802.3af/at, Power over Ethernet (PoE) compliant, powered device (PD), interface controller. The MP8003A has all the functions of IEEE 802.3af/at, including detection, 1-event and 2-event classification, input current control, and a 100V hot-swap MOSFET. The MP8003A sets the inrush current limit at about 120mA during start-up and switches to 840mA when the output pass MOSFET is turned on completely. A PG signal set to high indicates when the output is fully charged and pulls low when the output drops under the overload condition. The MP8003A also provides a T2P signal when it is connected to Type-2 power sourcing equipment (PSE). An auxiliary power input detector (AUX) provides a smooth power switch from PSE to an auxiliary wall adapter. The MP8003A also features built-in thermal protection and a wide-input UVLO hysteresis. The MP8003A is available in a QFN-10 (3mmx3mm) package.
Product Features
-
Compatible with 802.3af/at Specifications
-
100V, 0.48O Integrated Pass Switch
-
120mA Inrush Current Limit
-
840mA Operation Current Limit
-
2-Event Classification
-
Auxiliary Adapter O-Ring Power Supply
-
Self-Driving Power Good Inductor
-
Open-Drain Type-2 PSE Indicator
-
Over-Temperature Protection (OTP)
-
Available in QFN-10 (3mmx3mm) Package
Parametrics
-
PoE Standards Supported802.3af/at
-
Aux Supply Vrange (V)Dec-57
-
Fault ResponseAuto Retry
-
GradeCatalog
-
PackageQFN-10 (3x3)
-
mps_Status2
-
Mps StatusActive
-
PoE Inrush Limit (mA)120
-
PoE Ilimit (mA)840
-
Pass Switch Rds(on) (Ω)0.48
