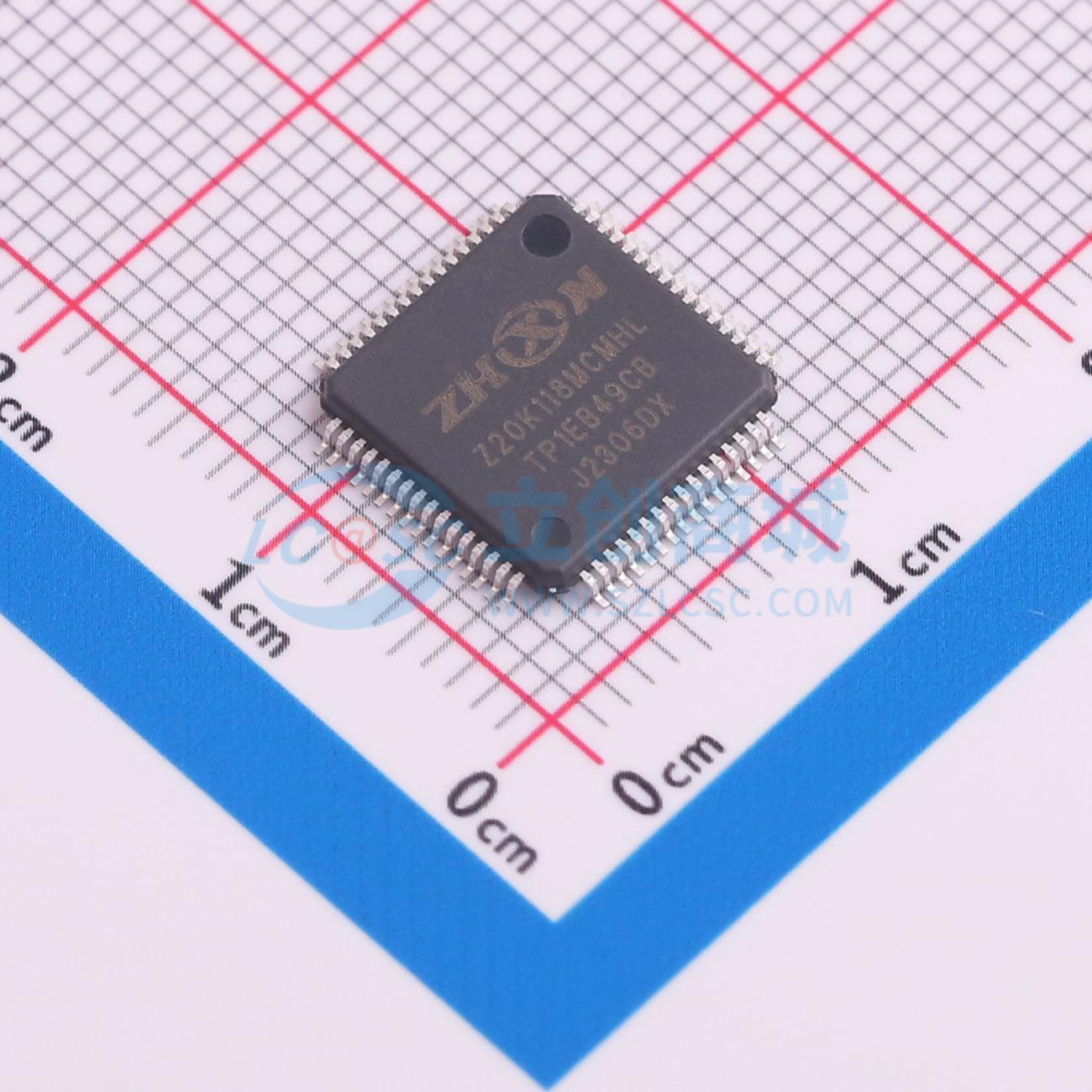

温馨提醒：图片仅供参考，商品以实物为准

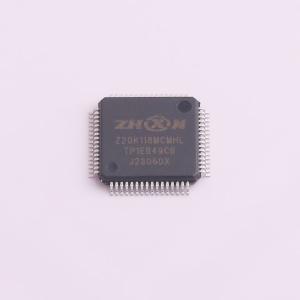

Z20K118MCMHLT
Z20K118MCMHLT
SMT扩展库SMT补贴嘉立创PCB免费打样
- 品牌名称
- ZHXN(智芯科技)
- 商品型号
- Z20K118MCMHLT
- 商品编号
- C20624069
- 商品封装
- LQFP-64(10x10)
- 包装方式
- 托盘
- 商品毛重
- 7克(g)
商品参数
参数完善中
商品特性
- Operating characteristics ― Voltage range: 2.97 V to 5.5 V supply with fully functional flash memory program/erase/read operations Ambient operating temperature range: -40 °C to 125 °C
- Arm Cortex M0+δ core, 32-bit CPU Up to 64 MHz frequency Configurable Nested Vectored Interrupt Controller (NVIC) Core MPU
- Clock interfaces: 4 - 40 MHz external oscillator Up to 50 MHz DC external square input clock in external clock mode Up to 64 MHz Internal RC oscillator 32.768 KHz external oscillator 32 KHz Low Power Internal RC Oscillator 32 KHz Real Time Counter external clock (RTC_CLKIN) ― Up to 20 MHz SWD_CLK
- Power management ― Low-power Arm Cortex-M0+ core with excellent energy efficiency ― Power Management Unit (PMU) with multiple power modes: RUN, WAIT, STOP, Standby Clock gating and low power operation supported on specific peripherals
- Memory and memory interfaces Up to 256 KB Code Flash memory with ECC Up to 128 KB Data Flash memory with ECC Up to 32 KB User IFR with ECC Up to 32 KB SRAM with ECC
- Mixed-signal analog ― One 12-bit Analog-to-Digital Converter (ADC) with up to 18 external analog inputs ― One Analog Comparator (CMP, up to 11 channels) with internal 8-bit Digital-to-Analog Converter (DAC)
- Debug functionality Serial Wire Debug Port (SWD)
- Human-machine interface (HMI) Up to 55 GPIO pins with interrupt functionality Non-maskable Interrupt (NMI)
- Communications interfaces ― Up to four Universal Asynchronous Receiver/Transmitter (UART/LIN) modules with DMA support and low power availability ― Up to three Serial Peripheral Interface (SPI) modules with DMA support and low power availability 一 Up to two Inter-Integrated Circuit (I2C) modules with DMA support and low power availability 一 Up to two CAN modules (with optional CAN-FD support)
- Safety and Security 128-bit Unique Identification (ID) number Error-Correcting Code (ECC) on flash and SRAM memories CPU Memory Protection Unit Cyclic Redundancy Check (CRC) module Internal Watchdog (WDOG) External Watchdog Timer (EWDT) module
- Timing and control ― Up to three independent 16-bit Timers (TIM) modules, offering up to 8 standard channels (IC/OC/PWM) per module One 4 channels 32-bit System Timer (STIM) One Trigger Delay Generator (TDG) with flexible trigger system ― 32-bit Real Time Counter (RTC)
- Package ― 32-pin QFN-EP, 48-pin LQFP, 64-pin LQFP with up to 55 GPIO pins
- DMA and DMAMUX ― 16 channel DMA with up to 57 request sources using DMAMUX
