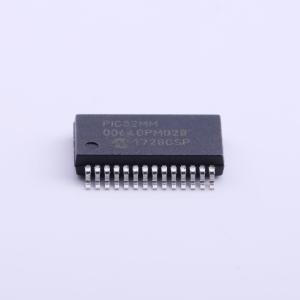

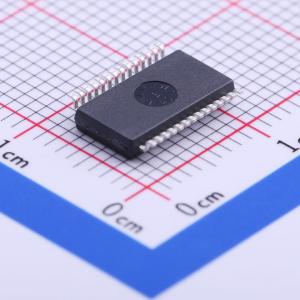

Name: MICROCHIP(美国微芯) PIC32MM0064GPM028T-I/SS
Brand: MICROCHIP(美国微芯)
SKU: C219157
Price: 5.48 CNY
Availability: OutOfStock

工作条件：2.0V to 3.6V，-40℃ to +85℃，DC to 25 MHz
低功耗模式：
- Idle - CPU off，peripherals run from system clock
- Sleep - CPU and peripherals off，Fast wake - up
- Sleep with retention - Low - power Sleep with retention 0.65 μA Sleep current for RAM Retention Regulator mode and 5 μA for Regulator Standby mode
- On - Chip 1.8V Voltage Regulator (VREG)
- On - Chip Ultra Low - Power Retention Regulator
高性能32位RISC CPU：
- microAptiv TM UC 32 - Bit Core with 5 - Stage Pipeline
- microMlPSTM Instruction Set for 35% Smaller Code and 98% Performance compared to MiPS32 Instructions
- 1.53 DMIPS/MHz (37 DMIPS)(Dhrystone 2.1) Performance
- 3.17 CoreMark/MHz (79 CoreMark) Performance
- 16 - Bit/32 - Bit Wide Instructions with 32 - Bit Wide DataPath
- Two Sets of 32 Core Register Files (32 - bit) to Reduce Interrupt Latency
- Single - Cycle 32x16 Multiply and Two - Cycle 32×32 Multiply
- 64 - Bit, Zero Wait State Flash with ECC to Maximize Endurance/Retention
微控制器特性：
- Up to 256K Flash Memory，20,000 Erase/Write Cycle Endurance，20 Years Minimum Data Retention，Self - Programmable under Software Control
- Up to 32K SRAM Memory
- Multiple Interrupt Vectors with Individually Programmable Priority
- Fail - Safe Clock Monitor mode
- Configurable Watchdog Timer with On - Chip, Low - Power RC Oscillator
- Programmable Code Protection
- Selectable Oscillator Options Including: High - precision, 8 MHz (FRC) internal RC oscillator；2x/3x/4x/6x/12x/24x PLL, which can be clocked from FRC or the Primary Oscillator；Primary high - speed, crystal/resonator oscillator or external clock
外设特性：
- USB 2.0 Compliant Full - Speed and Low - Speed Device, Host and On - The - Go (OTG) Controller: Dedicated DMA；Device mode operation from FRC oscillator; no crystal oscillator required
- Atomic Set, Clear and Invert Operation on Select Peripheral Registers
- High - Current Sink/Source
- Independent, Low - Power 32 kHz Timer Oscillator
- Three 4 - Wire SPl modules: 16 - byte FIFO；Variable width；2S mode
- Three I²C Master and Slave w/Address Masking and IPMI Support
- Three Enhanced Addressable UARTs: RS - 232, RS - 485 and LIN/J2602 support, IrDA with on - chip hardware encoder and decoder
- External Edge and Level Change Interrupt on All Ports
- Hardware Real - Time Clock and Calendar (RTCC)
- Up to 24 Peripheral Pin Select (PPS) Remappable Pins
- 21 Total 16 - Bit Timers: Three dedicated 16 - bit timers/counters；Two can be concatenated to form a 32 - bit timer；Two additional 16 - bit timers in each MCCP and SCCP module, totaling 18
- Capture/Compare/PWM/Timer modules: Two 16 - bit timers or one 32 - bit timer in each module；PWM resolution down to 21 ns；Three Multiple Output (MCCP) modules: Flexible configuration as PWM, input capture, output compare or timers；Six PWM outputs；Programmable dead time；Auto - shutdown；Six Single Output (SCCP) modules: Flexible configuration as PWM, input capture, output compare or timers；Single PWM output
- Reference Clock Output (REFO)
- Four Configurable Logic Cells (CLC) with Internal Connections to Select Peripherals and PPS
- 4 - Channel Hardware DMA with Automatic Data Size Detection and CRC Engine
调试特性：
- Two Programming and Debugging Interfaces: 2 - wire ICSPTM interface with non - intrusive access and real - time data exchange with application；4 - wire MIPS standard Enhanced JTAG interface
- IEEE Standard 1149.2 Compatible (JTAG) Boundary Scan
模拟特性：
- Three Analog Comparators with Input Multiplexing
- Programmable High/Low - Voltage Detect (HLVD)
- 5 - Bit Comparator Voltage Reference DAC with Pin Output
- Up to 24 - Channel, Software - Selectable 10/12 - Bit SAR Analog - to - Digital Converter(ADC): 12 - bit 200K samples/second conversion rate (single Sample - and - Hold)；10 - bit 300K samples/second conversion rate (single Sample - and - Hold)；Sleep mode operation；Low - voltage boost for input；Band gap reference input feature；Windowed threshold compare feature；Auto - scan feature

	属性	参数值
	商品目录	单片机(MCU/MPU/SOC)
	CPU内核	MIPS32 microAptiv
	CPU最大主频	25MHz
	CPU位数	32 Bit
	程序存储容量	64KB
	程序存储器类型	FLASH
	RAM容量	16KB

	属性	参数值
	EEPROM容量	-
	I/O数量	21
	ADC(位数)	10bit；12bit
	振荡器类型	内置
	工作电压	2V~3.6V
	工作温度	-40℃~+85℃
