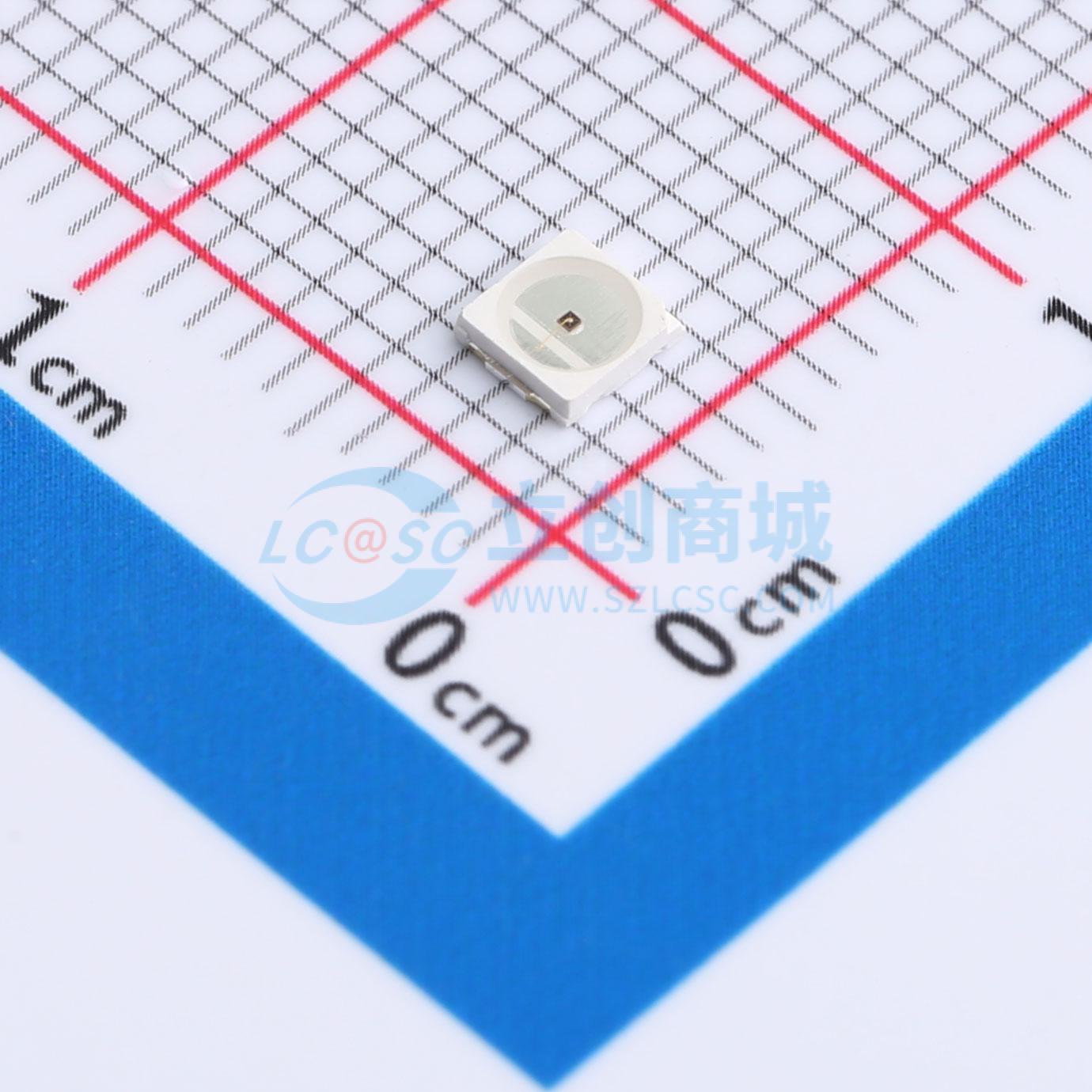

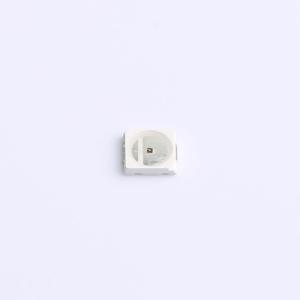

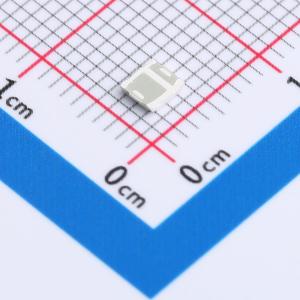

JNJ-3030JI0106W140/14mil-D/845-860nm
3030晶元14MIL-D平面红外灯源845-860nm
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 产品尺寸：3.0x3.0x0.6
- 品牌名称
- JNJOPTO(强生光电)
- 商品型号
- JNJ-3030JI0106W140/14mil-D/845-860nm
- 商品编号
- C18199776
- 商品封装
- SMD3030-2P
- 包装方式
- 编带
- 商品毛重
- 0.041267克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 红外发射管 | |
| 正向压降(Vf) | 2V；1.3V | |
| 波长 | 855nm | |
| 辐射强度 | 10mW/sr@100mA |
| 属性 | 参数值 | |
|---|---|---|
| 正向电流 | 100mA | |
| 直流反向耐压(Vr) | 5V | |
| 工作温度 | -40℃~+100℃ |
