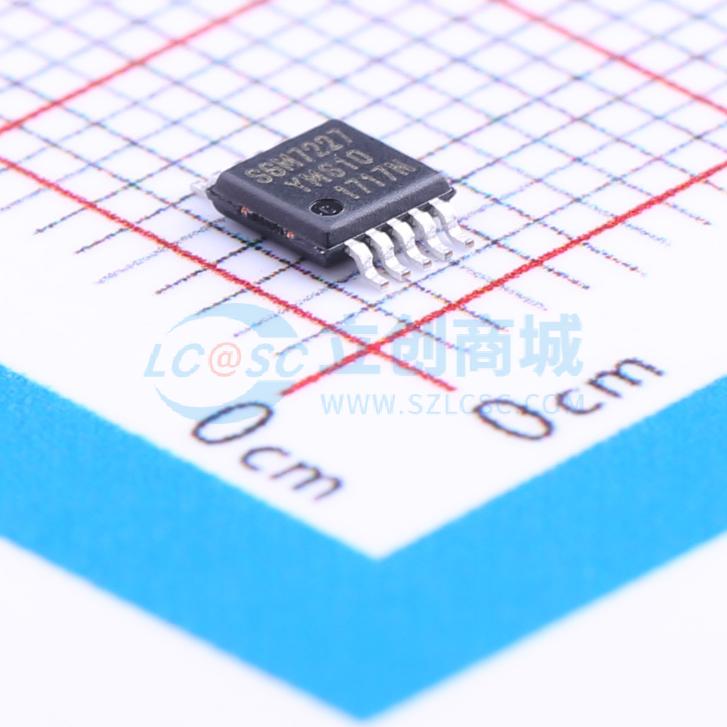

温馨提醒:图片仅供参考,商品以实物为准

SGM7227YMS10G/TR

“SMT扩展库”
嘉立创SMT补贴
含增值税(原厂管控价)
1+:

¥5.36 / 个

10+:

¥4.24 / 个

30+:

¥3.68 / 个

100+:

¥3.12 / 个 (折合1圆盘9360元)

嘉立创贴片惊喜价格 立即查看>>
江苏仓库存: 0 广东仓库存: 0 广东SMT仓库存:99 到货通知 近期成交:37单
库存地点:
内地
内地交货!
3000个/圆盘
购买数量:
圆盘
圆盘
总额: ¥0
已优惠¥0元!
按整包装: 圆盘(1圆盘有个)
SGMICRO(圣邦微)
品  牌: SGMICRO(圣邦微)
厂家型号: SGM7227YMS10G/TR

单击复制

商品编号: C182085

单击复制

封装: MSOP-10
数据手册: 下载文件
商品毛重: 0.118克(g)
包装方式: 编带
查看套装 推荐商品 选择时请仔细核对商品参数信息
< 1 / >
< 1 / 2 >
商品介绍 数据手册PDF 如果您发现商品信息不准确, 欢迎纠错

商品介绍

USB2.0 DPDT 模拟信号开关 高速信号开关。
找到类似商品:20查看类似商品
属性 参数值
商品目录 模拟开关/多路复用器
开关电路 -

GENERAL DESCRIPTION

The SGM7227 is a high-speed, low-power double-pole/double-throw (DPDT) analog switch that operates from a single 1.8V to 4.3V power supply.

SGM7227 is designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os.

The SGM7227 has low bit-to-bit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps). Each switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. Its bandwidth is wide enough to pass high-speed USB 2.0 differential signals (480 Mb/s) with good signal integrity.

The SGM7227 contains special circuitry on the D+/D- pins which allows the device to withstand a VBUS short to D+ or D- when the USB devices are either powered off or powered on.

SGM7227 is available in Green UTQFN-1.8×1.4-10L and MSOP-10 packages. It operates over an ambient temperature range of -40 to +85.


PIN CONFIGURATIONS


FEATURES

? RON is Typically 5Ω at 3.0V
? Voltage Operation: 1.8V to 4.3V
? Fast Switching Times:
    tON 15ns
    tOFF 20ns
? Crosstalk: -30dB at 250MHz
? Off-Isolation: -35dB at 250MHz
? Rail-to-Rail Input and Output Operation
? Break-Before-Make Switching
? Extended Industrial Temperature Range:
    -40 to +85
? Available in Green UTQFN-1.8×1.4-10L and
    MSOP-10 Packages

APPLICATIONS

Route Signals for USB 2.0
MP3 and Other Personal Media Players
Digital Cameras and Camcorders
Portable Instrumentation
Set-Top Box
PDAs


数据手册PDF

SGM7227YMS10G/TR数据手册PDF下载
