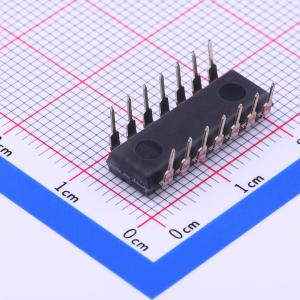

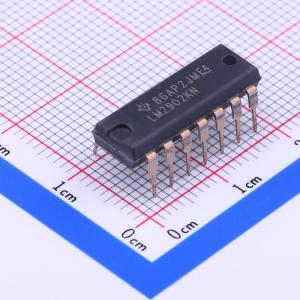

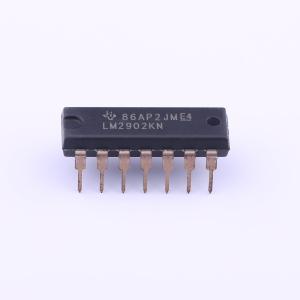

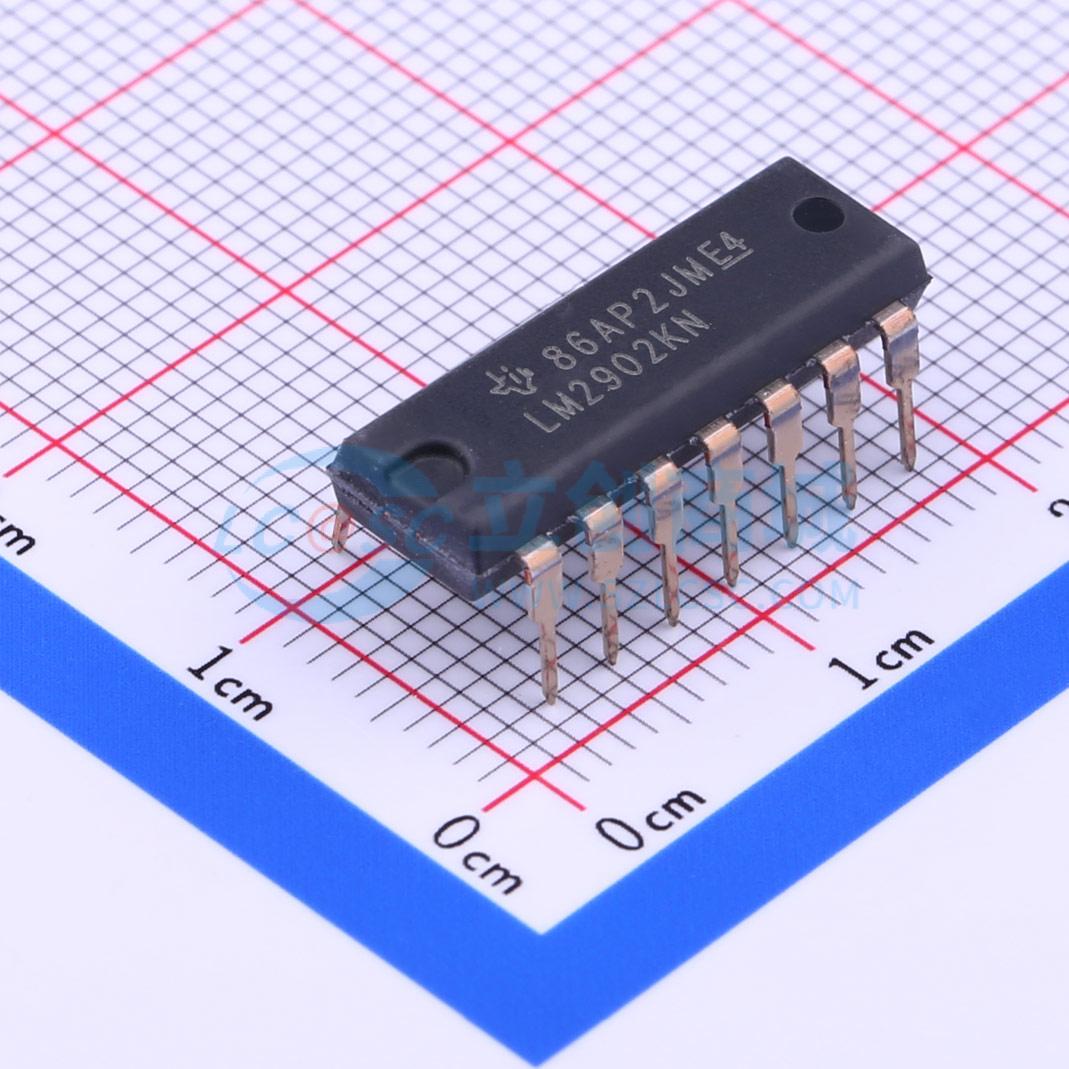

LM2902KN
LM2902KN
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- LM2902K 四通道、26V、1.2MHz、ESD 经改进 (2kV) 的运算放大器
- 品牌名称
- TI(德州仪器)
- 商品型号
- LM2902KN
- 商品编号
- C163647
- 商品封装
- DIP-14
- 包装方式
- 管装
- 商品毛重
- 1.68克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 运算放大器 | |
| 放大器数 | 四路 | |
| 最大电源宽度(Vdd-Vss) | 26V | |
| 轨到轨 | - | |
| 增益带宽积(GBP) | 1.2MHz | |
| 输入失调电压(Vos) | 3mV | |
| 输入失调电压温漂(Vos TC) | 1uV/℃ | |
| 压摆率(SR) | 500V/ms | |
| 输入偏置电流(Ib) | 20nA |
| 属性 | 参数值 | |
|---|---|---|
| 输入失调电流(Ios) | 2nA | |
| 噪声密度(eN) | 35nV/√Hz@1kHz | |
| 共模抑制比(CMRR) | 80dB | |
| 输入失调电流温漂(Ios TC) | - | |
| 静态电流(Iq) | 700uA | |
| 输出电流 | - | |
| 工作温度 | -40℃~+125℃ | |
| 单电源 | 3V~26V | |
| 双电源(Vee~Vcc) | -13V~-1.5V；1.5V~13V |
-
2-kV ESD Protection for:
- LM224K, LM224KA
- LM324K, LM324KA
- LM2902K, LM2902KV, LM2902KAV
-
Wide Supply Ranges
-
Single Supply: 3 V to 32 V
(26 V for LM2902) -
Dual Supplies: ±1.5 V to ±16 V
(±13 V for LM2902)
-
Single Supply: 3 V to 32 V
-
Low Supply-Current Drain Independent of
Supply Voltage: 0.8 mA Typical -
Common-Mode Input Voltage Range Includes
Ground, Allowing Direct Sensing Near Ground -
Low Input Bias and Offset Parameters
-
Input Offset Voltage: 3 mV Typical
A Versions: 2 mV Typical - Input Offset Current: 2 nA Typical
-
Input Bias Current: 20 nA Typical
A Versions: 15 nA Typical
-
Input Offset Voltage: 3 mV Typical
-
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage:
32 V (26 V for LM2902) -
Open-Loop Differential Voltage Amplification:
100 V/mV Typical - Internal Frequency Compensation
-
On Products Compliant to MIL-PRF-38535,
All Parameters are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include Testing
of All Parameters.
