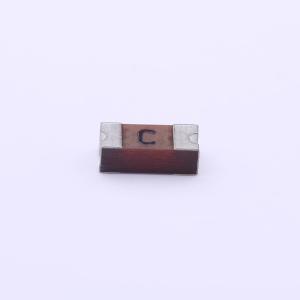

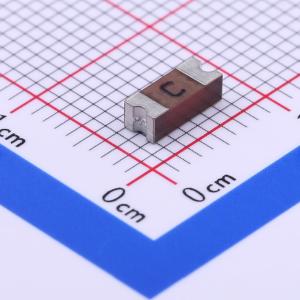

温馨提醒：图片仅供参考，商品以实物为准
MF2410F0.500TM
250V贴片式保险丝
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 高浪涌电流承受能力
- 品牌名称
- AEM
- 商品型号
- MF2410F0.500TM
- 商品编号
- C91409
- 商品封装
- 2410
- 包装方式
- 编带
- 商品毛重
- 0.05克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 一次性保险丝 | |
| 类型 | 贴片式保险丝 | |
| 额定电流 | 500mA | |
| 额定电压 (AC) | 250V | |
| 额定电压 | 250V | |
| 工作温度 | -55℃~+125℃ |
| 属性 | 参数值 | |
|---|---|---|
| 熔断I2t | 0.11 | |
| 分断能力 | 100A | |
| 长度 | 6.1mm | |
| 宽度 | 2.49mm | |
| 高度 | 2.16mm |
250V UMF for AC Applications: MF2410
Features:
? Extremely small size with 250 VAC rating
? Surface mount fuses in AC applications
? Excellent inrush current withstanding capability
? Operating temperature range: -55°C to +125 °C (with de-rating)
? Complying with IEC 60127-4
? Fiberglass enforced epoxy fuse body
? Copper termination with nickel and tin plating
? Halogen free, RoHS compliant
? 100% lead-free
Features:
? Extremely small size with 250 VAC rating
? Surface mount fuses in AC applications
? Excellent inrush current withstanding capability
? Operating temperature range: -55°C to +125 °C (with de-rating)
? Complying with IEC 60127-4
? Fiberglass enforced epoxy fuse body
? Copper termination with nickel and tin plating
? Halogen free, RoHS compliant
? 100% lead-free
