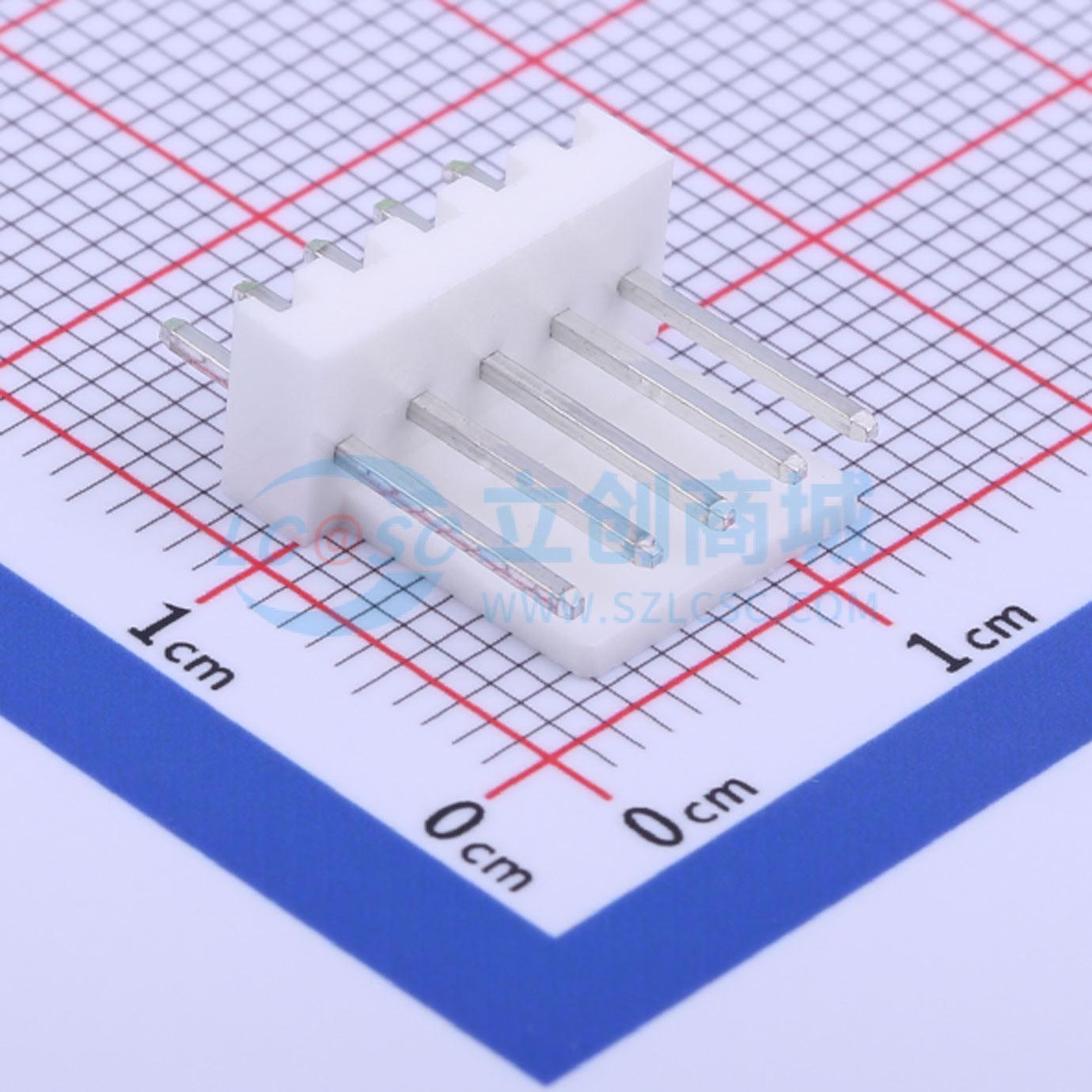

温馨提醒：图片仅供参考，商品以实物为准

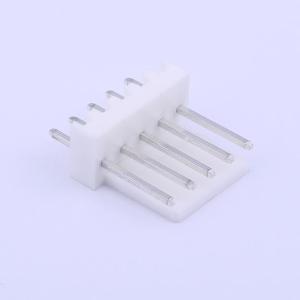

X2510WV-05-N0SN
1x5P 间距:2.54mm 直插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 配套:针座X2510WV-05-N0SN 胶壳X2510H-05-N0 端子X2510T-PSN
- 商品型号
- X2510WV-05-N0SN
- 商品编号
- C843334
- 商品封装
- 插件,P=2.54mm
- 包装方式
- 袋装
- 商品毛重
- 0.554克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x5P | |
| 间距 | 2.54mm | |
| 安装方式 | 直插 | |
| 参考系列 | - | |
| 总PIN数 | 5P | |
| 排数 | 1 | |
| 每排PIN数 | 5 | |
| 行距 | - |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3A | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 250V | |
| 塑料材质 | PA66 | |
| 阻燃等级 | UL94V-0 | |
| X轴-板上底边长度(间距线) | 12.7mm |
