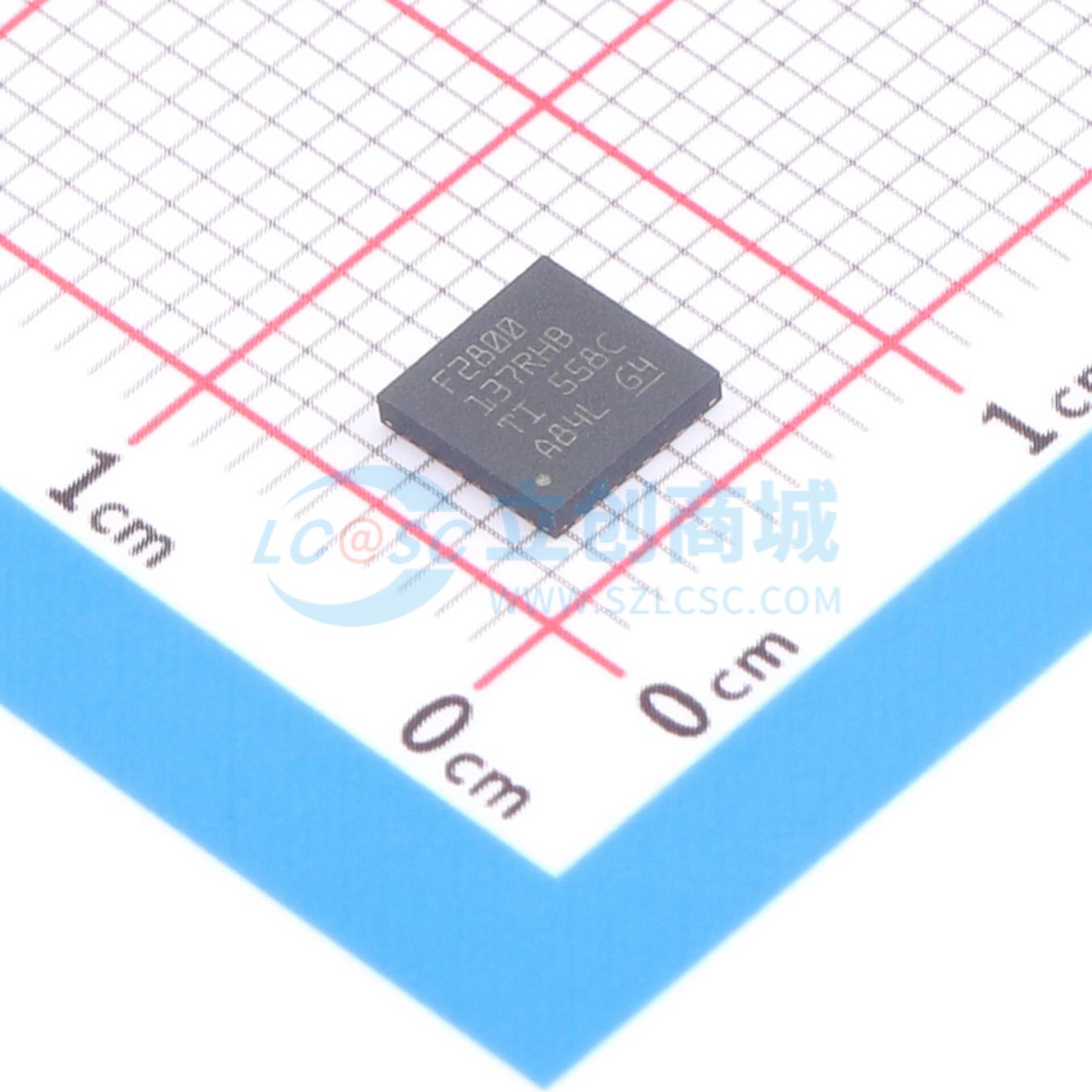

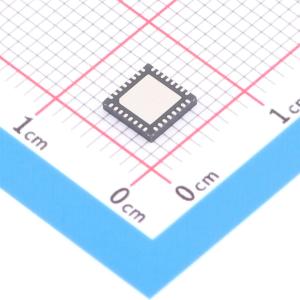

Name: TI(德州仪器) F2800137RHBR
Brand: TI(德州仪器)
SKU: C7437499
Price: 9.93 CNY
Availability: InStock

Real-time processing – 120-MHz C28x 32-bit DSP CPU Equivalent to 240-MHz Arm -M7 based device on real-time signal chain performance Floating Point Unit (FPU) for more precise mathematical calculations Trigonometric Math Unit (TMU) speeds up algorithms key to real-time control systems
On-chip memory 256KB (128KW) of single bank flash (ECCprotected) – 36KB (18KW) of RAM (ECC/Parity-protected) – Dual-zone security Secure Boot and JTAG Lock
Clock and system control Two internal 10-MHz oscillators – External resistor support for improved internal oscillator performance (ExtR) – Crystal oscillator or external clock input – Windowed watchdog timer module – Missing clock detection circuitry – Dual-clock Comparator (DCC)
3.3-V I/O design 一 Internal VREG generation – Brownout reset (BOR) circuit
System peripherals – 38 individually programmable multiplexed General-Purpose Input/Output (GPIO) pins (11 shared with Analog) – 10 digital inputs on analog pins – Enhanced Peripheral Interrupt Expansion (ePIE) Multiple low-power mode (LPM) support Unique Identification (UID) number
Communications peripherals – Two Inter-integrated Circuit (I2C) interfaces – One Controller Area Network (CAN/DCAN) bus port One Serial Peripheral Interface (SPI) ports Three UART-compatible Serial Communication Interface (SCI)
Analog system Two 4-MSPS, 12-bit Analog-to-Digital Converters (ADCs) • Up to 21 external channels (11 shared with GPIO)
Four integrated Post-Processing Blocks (PPB) per ADC One windowed comparator (CMPSS) with 12-bit reference Digital-to-Analog Converters (DACs) • Digital glitch filters • COMPDACOUT (11 bit) Three windowed comparators (CMPSS_LITE with 9.5-bit effective reference DACs Digital glitch filters
Enhanced control peripherals 14 ePWM channels with two channels that have high-resolution capability (150-ps resolution) • Integrated dead-band support • Integrated hardware trip zones (TZs) Two Enhanced Capture (eCAP) modules One Enhanced Quadrature Encoder Pulse (eQEP) modules with support for CW/CCW operation modes Embedded Pattern Generator (EPG) CMAC Keys (128-bits) for SW AES
Package options: – 64-pin Low-profile Quad Flatpack (LQFP) [PM suffix] 48-pin LQFP [PT suffix] 48-pin Very Thin Quad Flatpack No Lead (VQFN) [RGZ suffix] 32-pin VQFN [RHB suffix]
Temperature options: – Ambient (TA): -40°C to 125°C

	属性	参数值
	商品目录	单片机(MCU/MPU/SOC)
	CPU内核	其他
	CPU最大主频	120MHz
	CPU位数	32 Bit
	程序存储容量	256KB
	程序存储器类型	FLASH

	属性	参数值
	RAM容量	18KB
	EEPROM容量	-
	I/O数量	19
	振荡器类型	内置+外置
	工作电压	2.8V~3.63V
	工作温度	-40℃~+125℃
