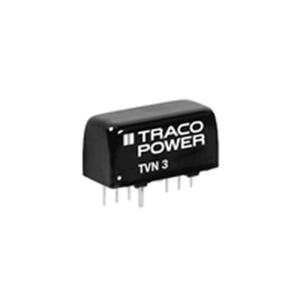

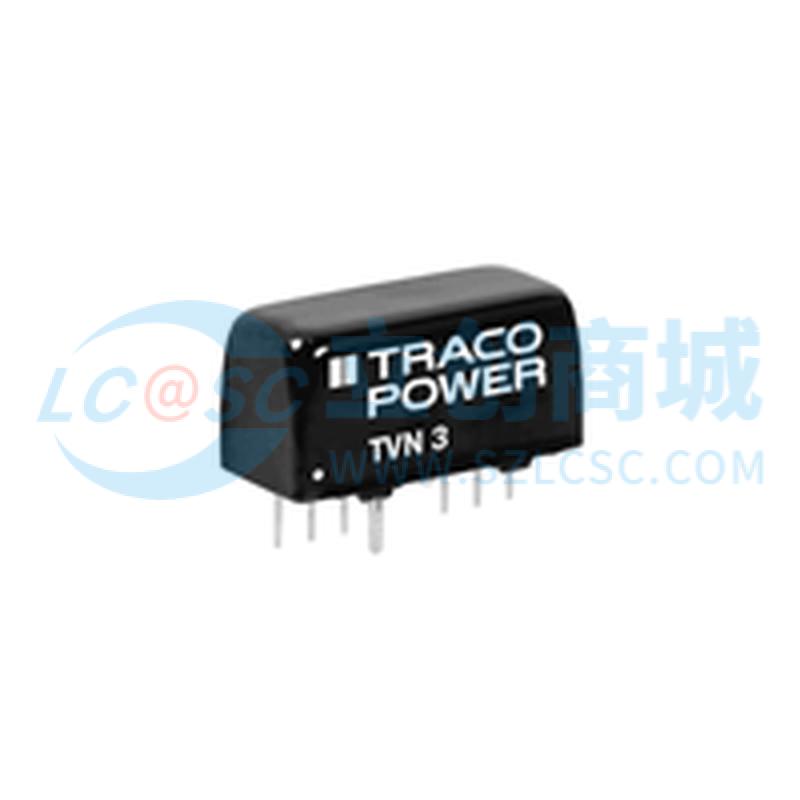

TVN 3-1213
- 工业品
价格：￥197.61价格含税（税率13%）
- 品牌名称
- TRACO POWER
- 商品型号
- TVN 3-1213
- 商品编号
- C6896292
- 商品毛重
1克(g)
广东仓0
购买数量
个
(10个/管，最小起订量1个，递增量：1)
总价金额：
￥0.00近期成交0单
- 商品参数
- 商品详情
- 规格书
商品参数
参数完善中
商品详情
产品特点 FEATURES
1
Ultra-low ripple and noise (10mVp-p typical, 20MHz bandwidth), ensuring stable power for precision devices
2
Compact SIP-8 package, ideal for space-constrained applications
3
Input voltage range:9-18VDC (nominal 12VDC)
4
Output:12VDC regulated, maximum current 250mA
5
High I/O isolation voltage:1600VDC, enhancing safety in isolated systems
6
Wide operating temperature range: -40°C to +75°C (no derating); up to +90°C with 50% load derating
7
Fully regulated outputs with tight voltage accuracy (±1% max) and low regulation (±1% max for input/load variations)
8
Built-in short circuit protection, ensuring device safety during faults
9
Long service life: MTBF of 6,500,000 hours (ground benign condition)
10
3-year manufacturer warranty for reliable after-sales support
11
High efficiency:85% typical, reducing power loss
12
Compliance with safety standard EN62368-1 (IT/multimedia equipment)
13
Natural convection cooling, no additional heat sink required under normal conditions
14
Isolation resistance:≥1000MΩ min, ensuring electrical insulation integrity
使用场景 APPLICATIONS
1
Industrial automation: Power supply for compact PLC modules, sensors, and control systems in factory settings
2
Telecom and networking: Isolated power for small-form-factor routers, switches, and communication modules
3
Test and measurement instruments: Precision devices like oscilloscopes, signal generators, and data loggers needing low-noise power
4
Embedded systems: IoT devices, portable electronics, and microcontroller-based projects with limited space
5
Audio/visual equipment: Power for compact AV components requiring stable, low-ripple power
6
Non-critical medical auxiliary devices: Equipment complying with EN62368-1 that needs isolated power supplies
注意事项 PRECAUTIONS
1
Confirm input voltage is within the specified 9-18VDC range before powering on to prevent damage
2
Follow the correct pinout (as per product datasheet) during wiring
3
Do not exceed the maximum operating temperature without proper derating (full load up to +75°C;50% load up to +90°C)
4
Use an appropriate external input fuse (size to be assessed based on application)
5
Ensure natural convection cooling is unobstructed
6
Avoid exposure to moisture or condensing environments (relative humidity ≤95% non-condensing)
7
Follow TRACO POWER's official cleaning guidelines for maintenance
8
Keep purchase documentation to validate the 3-year warranty
9
Do not disassemble the device; unauthorized modification voids the warranty
10
For remote control functionality, refer to TRACO POWER's application notes
