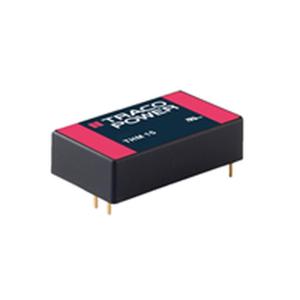

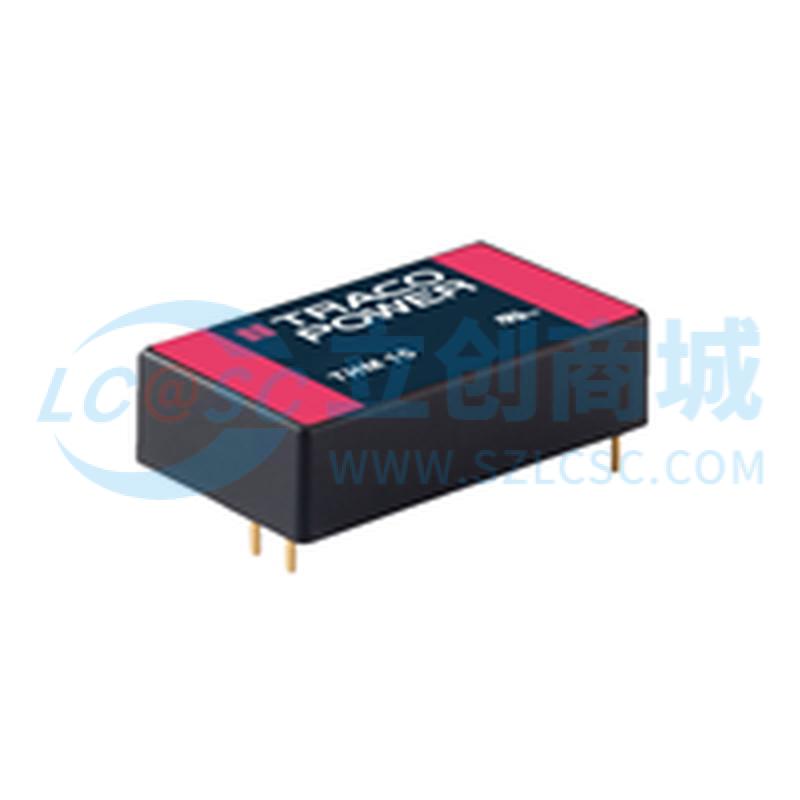

THM 15-2411

工业品

价格：￥428.19价格含税（税率13%）

品牌名称: TRACO POWER
商品型号: THM 15-2411
商品编号: C6880013
商品毛重: 1克(g)

广东仓10

购买数量

个

(10个/管，最小起订量1个，递增量：1)

总价金额：

￥0.00

近期成交0单

商品参数
商品详情
规格书

商品参数

参数完善中

商品详情

产品特点 FEATURES

1 Brand: TRACO POWER; Model: THM15-2411; Category: DC/DC medical converter (15W, THM15 series)

2 Input parameters: Wide 2:1 voltage range (18-36VDC, nominal 24VDC)

3 Output parameters: Single-channel output (5VDC, maximum 3000mA); Typical efficiency up to 90%

4 Isolation performance: 5000VAC input-output isolation, 250VAC working voltage; Reinforced insulation system

5 Certifications: Compliant with IEC/EN/ES60601-1 Edition3.2 (2xMOPP), ISO14971 risk management, IPC-A-610 Level3 (electronic assemblies)

6 Key electrical features: Low leakage current (<2.5μA), output voltage adjustable (-10% to +20% for 5/12/24V models), short circuit protection (continuous automatic recovery), overvoltage protection (125% typical of nominal output)

7 Environmental & mechanical specs: Operating temperature range -40°C to +85°C; Storage temperature range -55°C to +125°C; PCB mount type (THD-Through-Hole Device); 1×1 inch plastic case

8 Guarantee: 5-year product warranty

使用场景 APPLICATIONS

1 Medical equipment: Suitable for patient monitoring systems, diagnostic instruments, and medical imaging accessories requiring reliable power conversion

2 Industrial control: Applicable to control & measurement instruments (e.g., sensors, data loggers) and IGBT driver circuits

3 Transportation systems: Vehicle-mounted control units that need to withstand harsh temperature ranges

4 General electronics: Other electronic systems needing high isolation and low leakage current (complying with medical safety standards)

注意事项 PRECAUTIONS

1 Installation: Use PCB mount (THD type); Follow lead-free wave soldering profile (maximum 265°C for 10 seconds)

2 Operation: Do not exceed the specified input voltage range (18-36VDC); Avoid operating beyond 5000m altitude

3 Safety: Ensure compliance with relevant medical safety standards during integration; Over-temperature protection activates at approximately 115°C (automatic recovery)

4 Maintenance: Adhere to TRACO POWER's official cleaning guidelines for washing processes; Do not disassemble the product (may void warranty)

5 Guarantee: 5-year warranty is valid for original purchases; Maintain usage in line with product specifications to retain warranty coverage
