单端口6类无源千兆级中跨/供电器

BT-CAT6-P1

• 工业品

描述

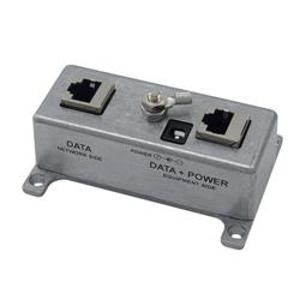

6类无源千兆位中继器/接入器，单端口 - BT-CAT6-P1 The BT-CAT6-P1 Single-Port Gigabit CAT6 Midspan/Injector is a commercial grade Power-over-Ethernet device that provides DC or AC power for one 10/100/1000 Base-T Power-over-Ethernet, PoE equipped Network Appliance device. The unit uses Gigabit transformers on all four data pairs in contrast to cheaper designs that only use transformers for two pairs. It is compatible with devices that support the IEEE 802.3af standard PoE power feed using Mode B (Pins 4/5 and 7/8). Power-over-Ethernet eliminates the need for an AC outlet at each Network Appliance location. <br><br>The BT-CAT6-P1 features shielded RJ45 jacks. This along with the BT-CAT6-P1's metal housing helps reduce the effects of EMI interference. A ground lug and terminal is provided directly on the injector housing providing superior grounding. The cast aluminum housing includes integral mounting feet for ease of installation.<br><br>This unit is also available in the following kits:<br><br>With 48VDC @ 48 Watt Power Supply - BT-CAT6-P1-4848<br>With 48VDC @ 70 Watt Power Supply - BT-CAT6-P1-4870<br>With 56VDC @ 117.6 Watt Power Supply - BT-CAT6-P1-56118<br><br>For additional information and complete specifications, click on the data sheet in the Downloads tab.<br><br>

品牌名称

L-com(诺通)

商品型号

BT-CAT6-P1

商品编号

C6425642

包装方式

袋装

商品毛重

1克(g)
