- 引脚图
- 焊盘图
温馨提醒：图片仅供参考，商品以实物为准

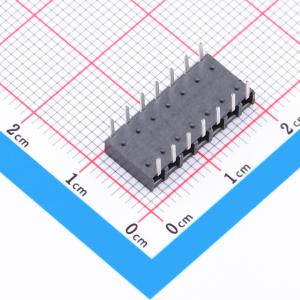

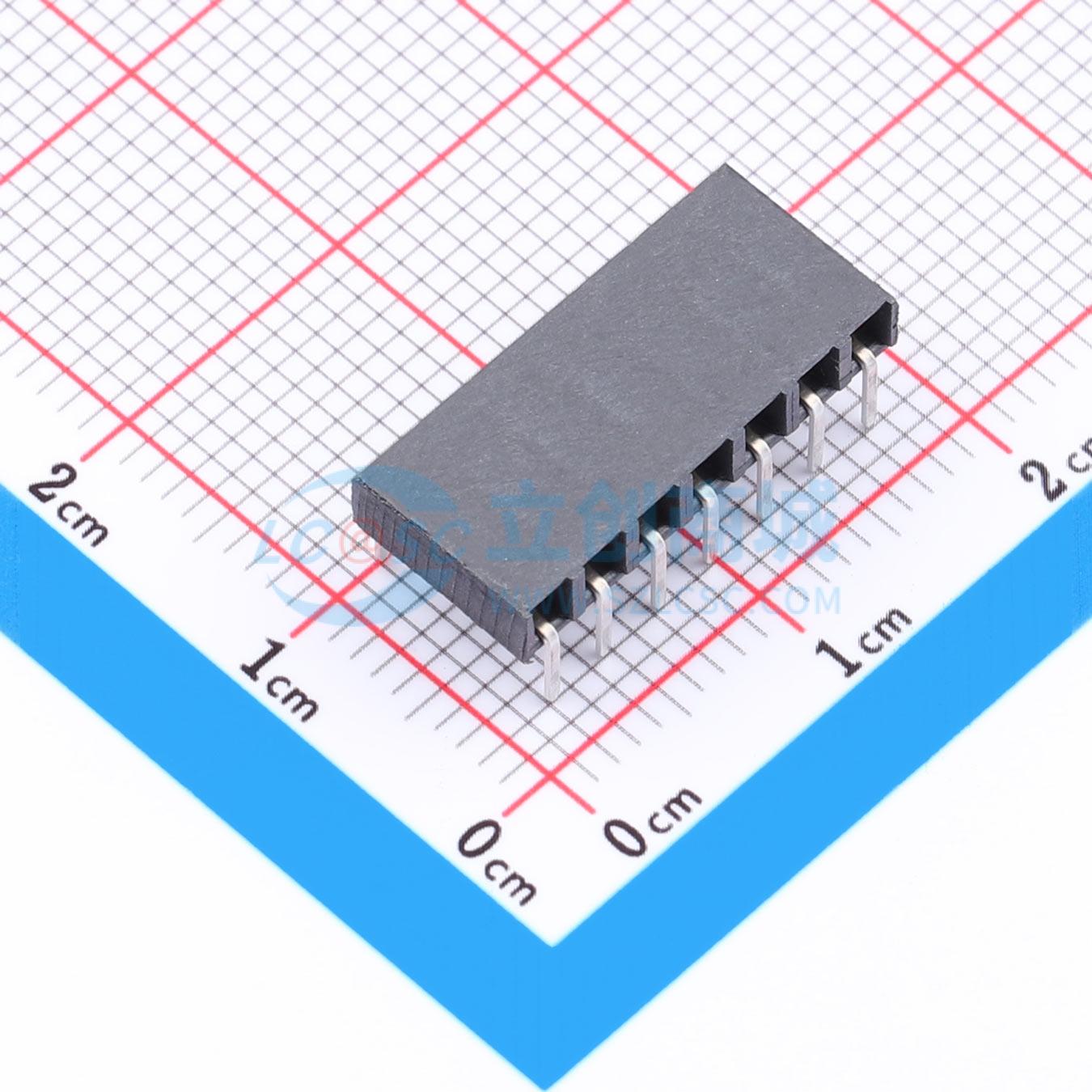

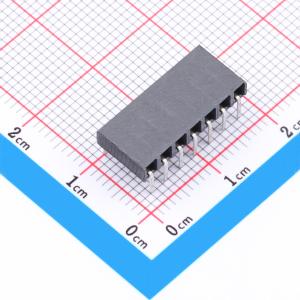

BCS-107-L-S-HE
1x7P 间距:2.54mm 弯插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- SAMTEC
- 商品型号
- BCS-107-L-S-HE
- 商品编号
- C5952147
- 商品封装
- 弯插,P=2.54mm
- 包装方式
- 管装
- 商品毛重
- 1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排母 | |
| 插孔结构 | 1x7P | |
| 间距 | 2.54mm | |
| 圆孔/方孔 | 方孔 | |
| 安装方式 | 弯插 | |
| 排数 | 单排 | |
| 总孔位数 | 7P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 4.6A | |
| 额定电压 | 475V | |
| 插孔方向 | 侧面 | |
| 塑高 | 3.18mm | |
| 触头材质 | 磷青铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -55℃~+125℃ |
