温馨提醒：图片仅供参考，商品以实物为准

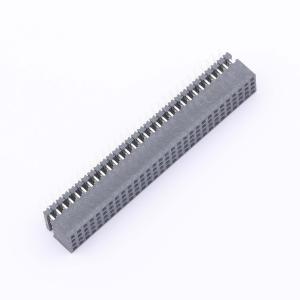

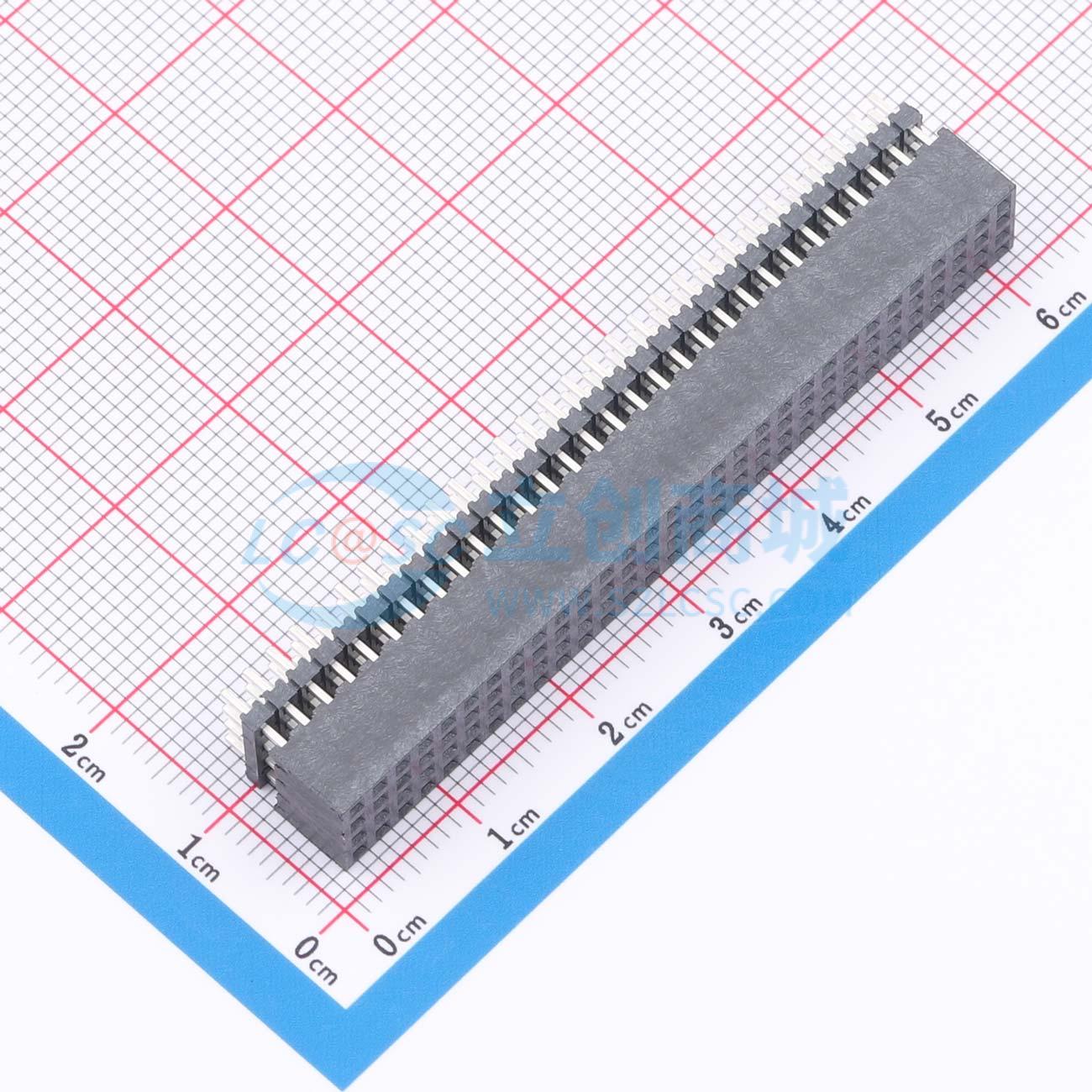

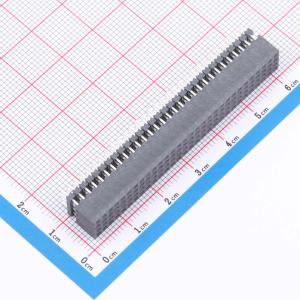

ESQT-130-03-M-Q-368
4x30P 间距:2mm 直插
- 品牌名称
- SAMTEC
- 商品型号
- ESQT-130-03-M-Q-368
- 商品编号
- C5736426
- 商品封装
- 插件,P=2mm
- 包装方式
- 管装
- 商品毛重
- 1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排母 | |
| 插孔结构 | 4x30P | |
| 间距 | 2mm | |
| 行距 | 2mm | |
| 圆孔/方孔 | 方孔 | |
| 安装方式 | 直插 | |
| 排数 | 四排 | |
| 总孔位数 | 120P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 4.5A | |
| 插孔方向 | 顶部 | |
| 塑高 | 9.35mm | |
| 触头材质 | 磷青铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -55℃~+105℃ | |
| 附加特征 | 双塑 | |
| 针脚长度 | 1.27mm |
