2.54x2.5 2x5P PA6.0 PC3.0 L11.6

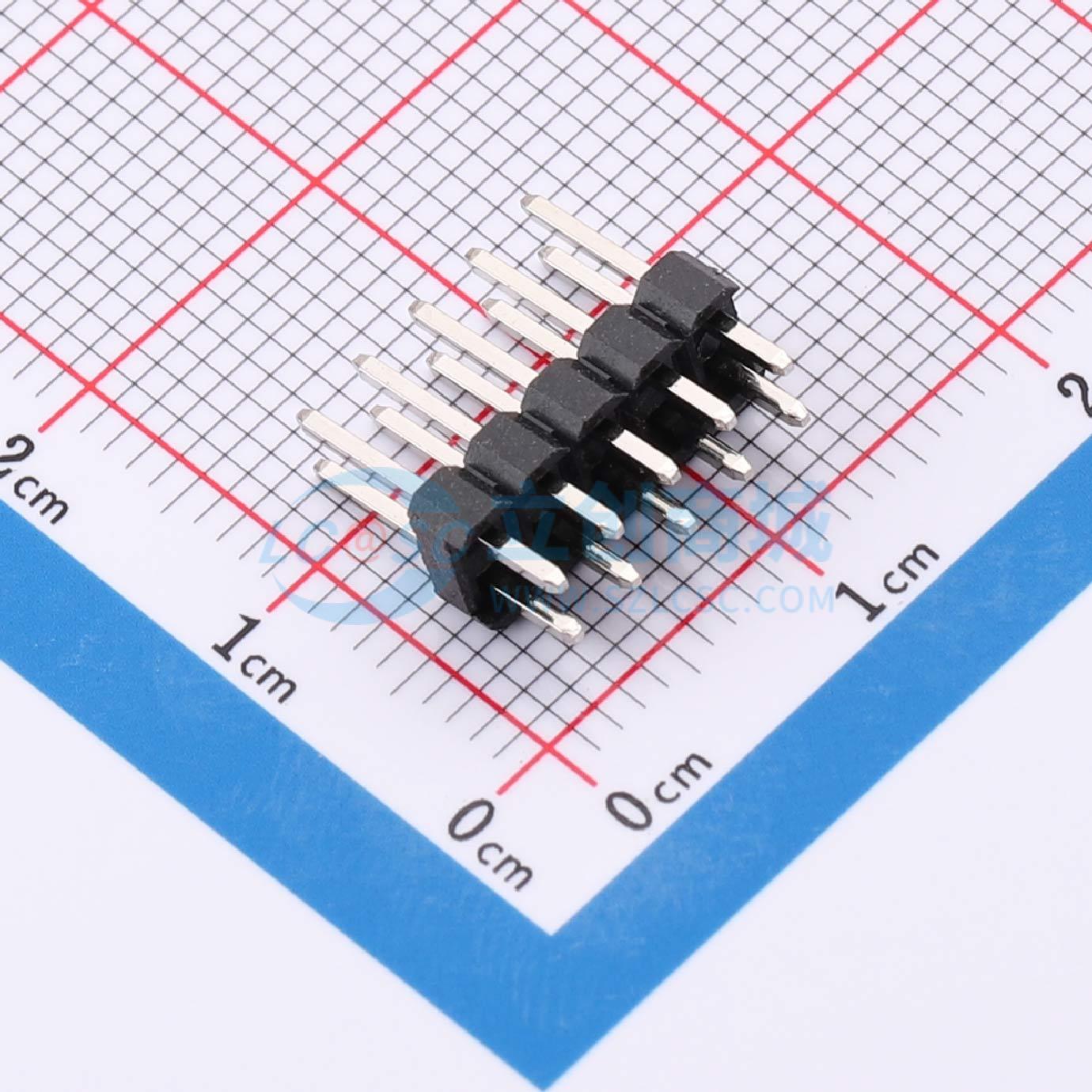

2x5P 间距:2.54mm 方针 直插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 2x5P 间距:2.54mm 方针 直插 配合针长度6mm 塑高2.5 端接针长度3mm
- 品牌名称
- JMEconn(文章济美)
- 商品型号
- 2.54x2.5 2x5P PA6.0 PC3.0 L11.6
- 商品编号
- C55829517
- 商品封装
- 插件,P=2.54mm
- 包装方式
- 袋装
- 商品毛重
- 0.5457克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排针 | |
| 插针结构 | 2x5P | |
| 间距 | 2.54mm | |
| 圆针/方针 | 方针 | |
| 安装方式 | 直插 | |
| 排数 | 双排 | |
| 总PIN位数 | 10P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3A | |
| 额定电压 | 500V | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -40℃~+105℃ | |
| 颜色 | 黑色 |
