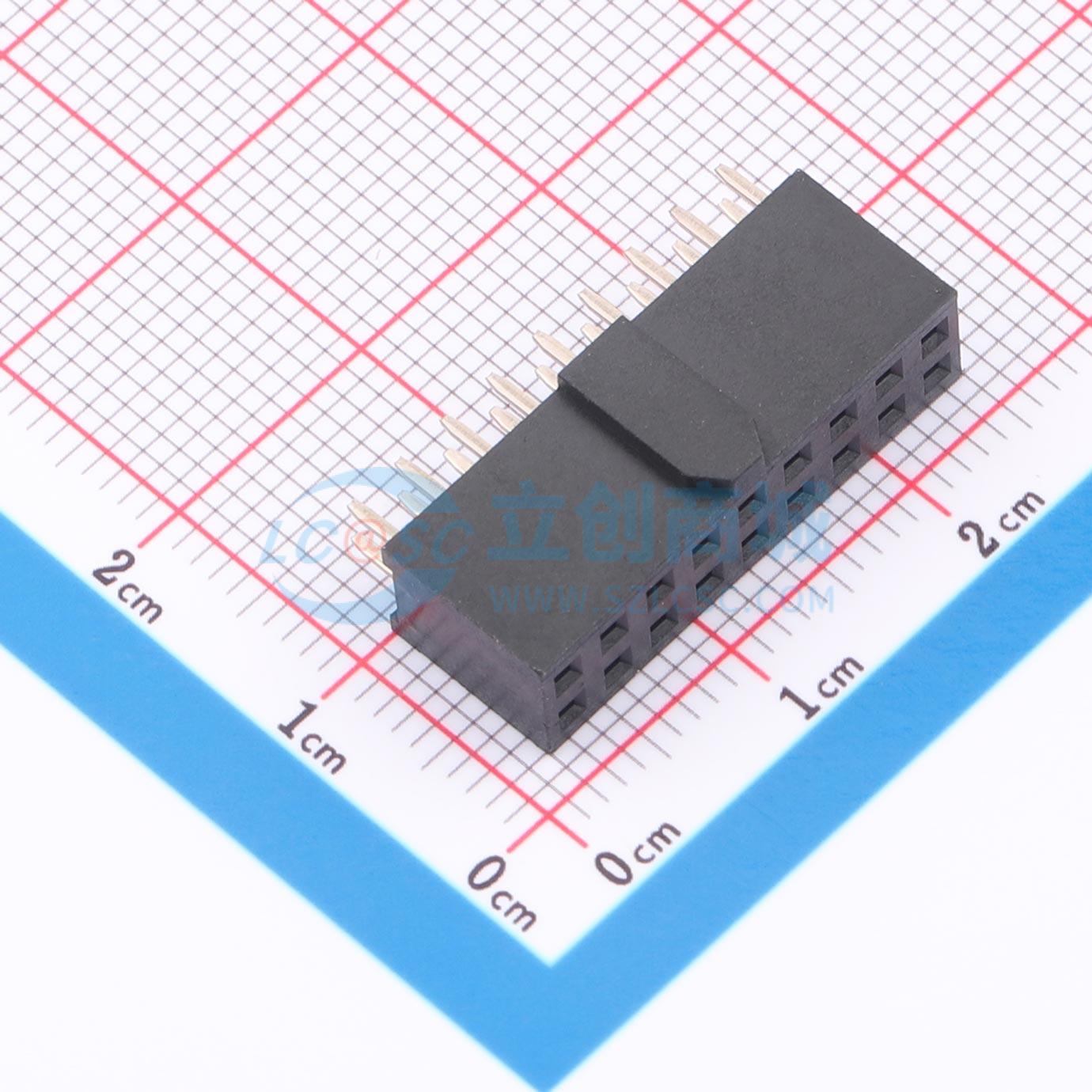

温馨提醒：图片仅供参考，商品以实物为准

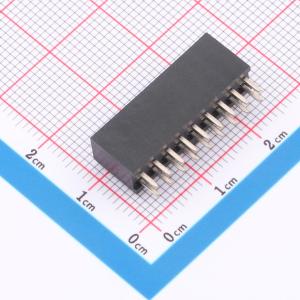

PM254V-F-12-18-H85
2x9P 间距:2.54mm 直插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 排母2.54mm直插 2x09P H8.5mm Y型 PC3.2 带凸点 镀金
- 品牌名称
- XFCN(兴飞)
- 商品型号
- PM254V-F-12-18-H85
- 商品编号
- C55595088
- 商品封装
- 插件,P=2.54mm
- 包装方式
- 托盘
- 商品毛重
- 8.455396克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排母 | |
| 插孔结构 | 2x9P | |
| 间距 | 2.54mm | |
| 行距 | 2.54mm | |
| 圆孔/方孔 | 方孔 | |
| 安装方式 | 直插 | |
| 排数 | 双排 |
| 属性 | 参数值 | |
|---|---|---|
| 总孔位数 | 18P | |
| 额定电流 | 3A | |
| 插孔方向 | 顶部 | |
| 塑高 | 8.5mm | |
| 触头材质 | 黄铜 | |
| 工作温度 | -40℃~+105℃ | |
| 针脚长度 | 3.2mm |
