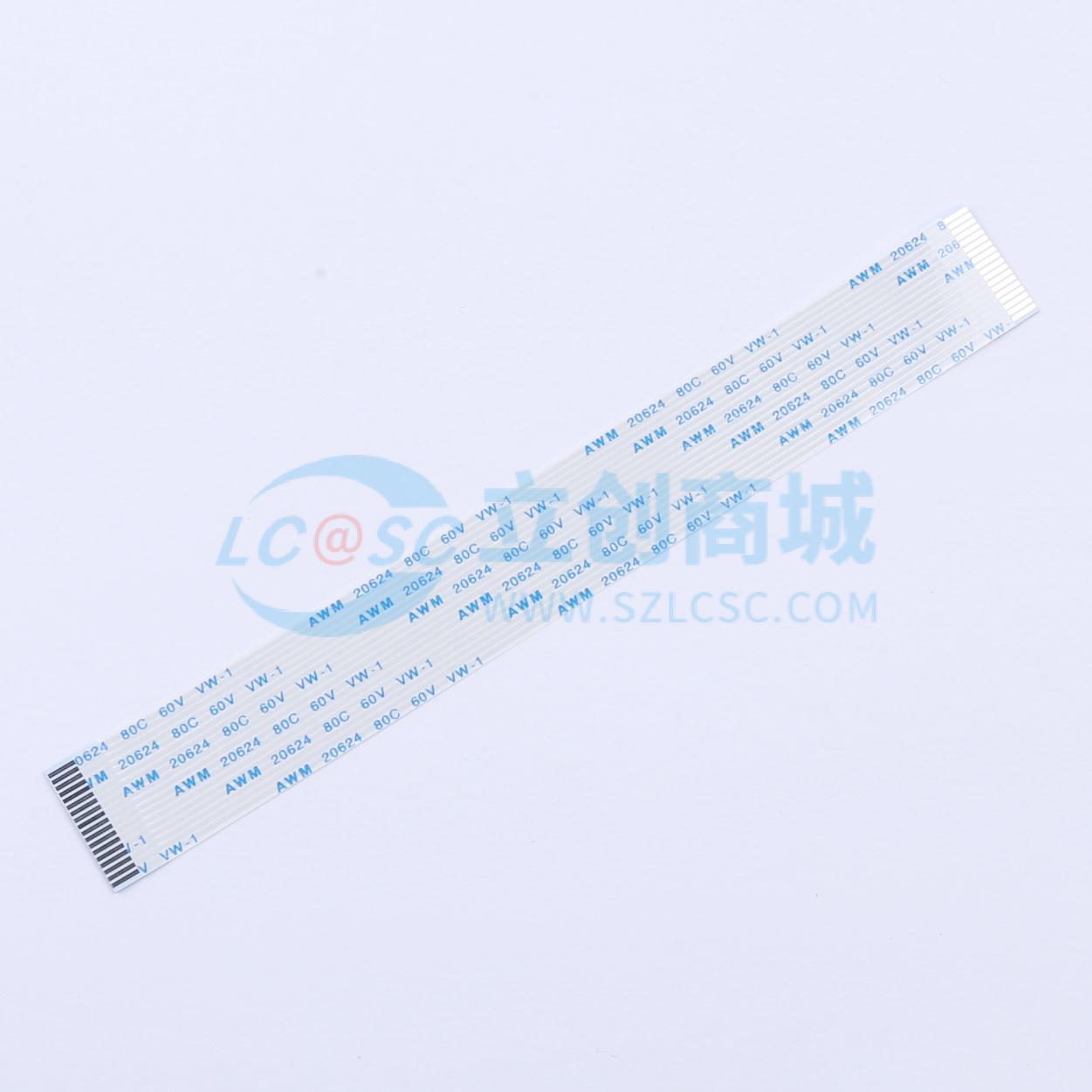

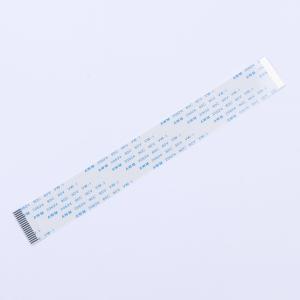

FC-1.0B-18P-150mm
FC-1.0B-18P-150mm
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- FFC排线 1.0mm 18P 总长150mm同向金手指4mm 加强板8mm
- 品牌名称
- DEALON(德艺隆)
- 商品型号
- FC-1.0B-18P-150mm
- 商品编号
- C5242897
- 商品封装
- P=1mm
- 包装方式
- 袋装
- 商品毛重
- 1.04克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | FFC连接线(柔性扁平线缆) | |
| 总PIN数 | 18P | |
| 间距 | 1mm | |
| 插入厚度 | 0.3mm | |
| 触点 | 同向 |
| 属性 | 参数值 | |
|---|---|---|
| 总长度 | 15cm | |
| 补强板长度 | 8mm | |
| 金手指长度 | 4mm | |
| 是否带补强 | 双端补强 |
