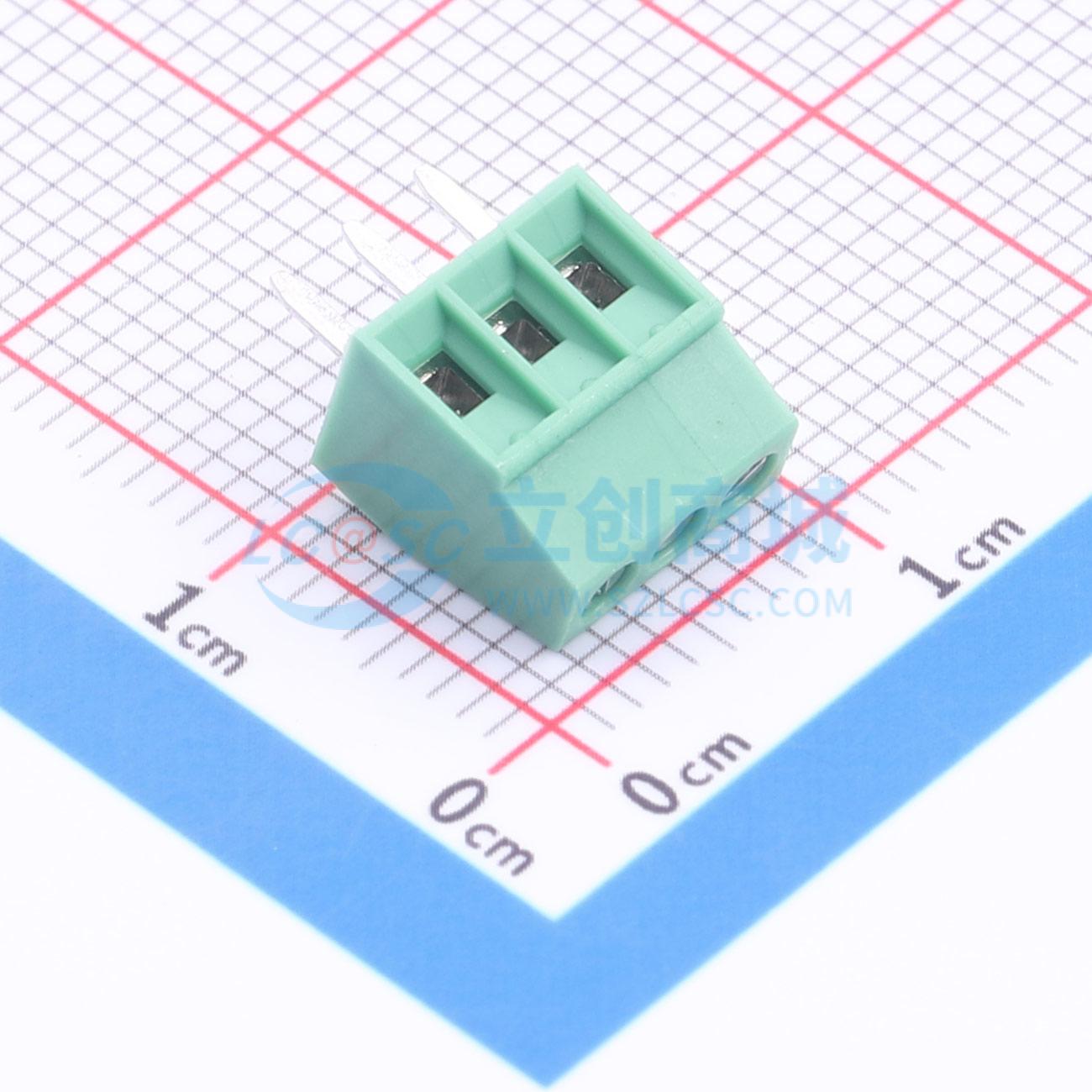

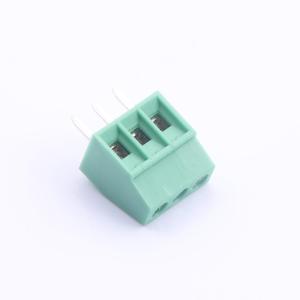

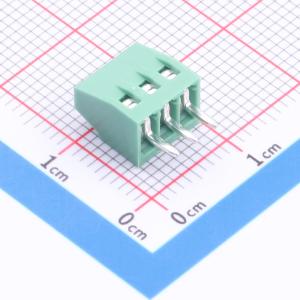

温馨提醒：图片仅供参考，商品以实物为准
G-DT254S3P-L000
1x3P 2.54mm 直插 排数:1 每排P数:3
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 绿色端子台 DTEK254-2.54-3P 直针 螺钉式
- 品牌名称
- Ckmtw(灿科盟)
- 商品型号
- G-DT254S3P-L000
- 商品编号
- C55469819
- 商品封装
- 插件,P=2.54mm
- 包装方式
- 袋装
- 商品毛重
- 1.122222克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 螺钉式接线端子 | |
| 结构 | 1x3P | |
| 间距 | 2.54mm | |
| 颜色 | 绿色 | |
| 安装类型 | 直插 | |
| 总PIN数 | 3P | |
| 排数 | 1 | |
| 每排PIN数 | 3 |
| 属性 | 参数值 | |
|---|---|---|
| 螺钉规格 | M1.6 | |
| 额定电流 | 7A | |
| 额定电压 | 150V | |
| 线规 - AWG | 18~26 | |
| 线规 - 平方毫米 | 0.5~1 | |
| 工作温度 | -40℃~+105℃ | |
| 板上高度 | 8.5mm |
