温馨提醒：图片仅供参考，商品以实物为准

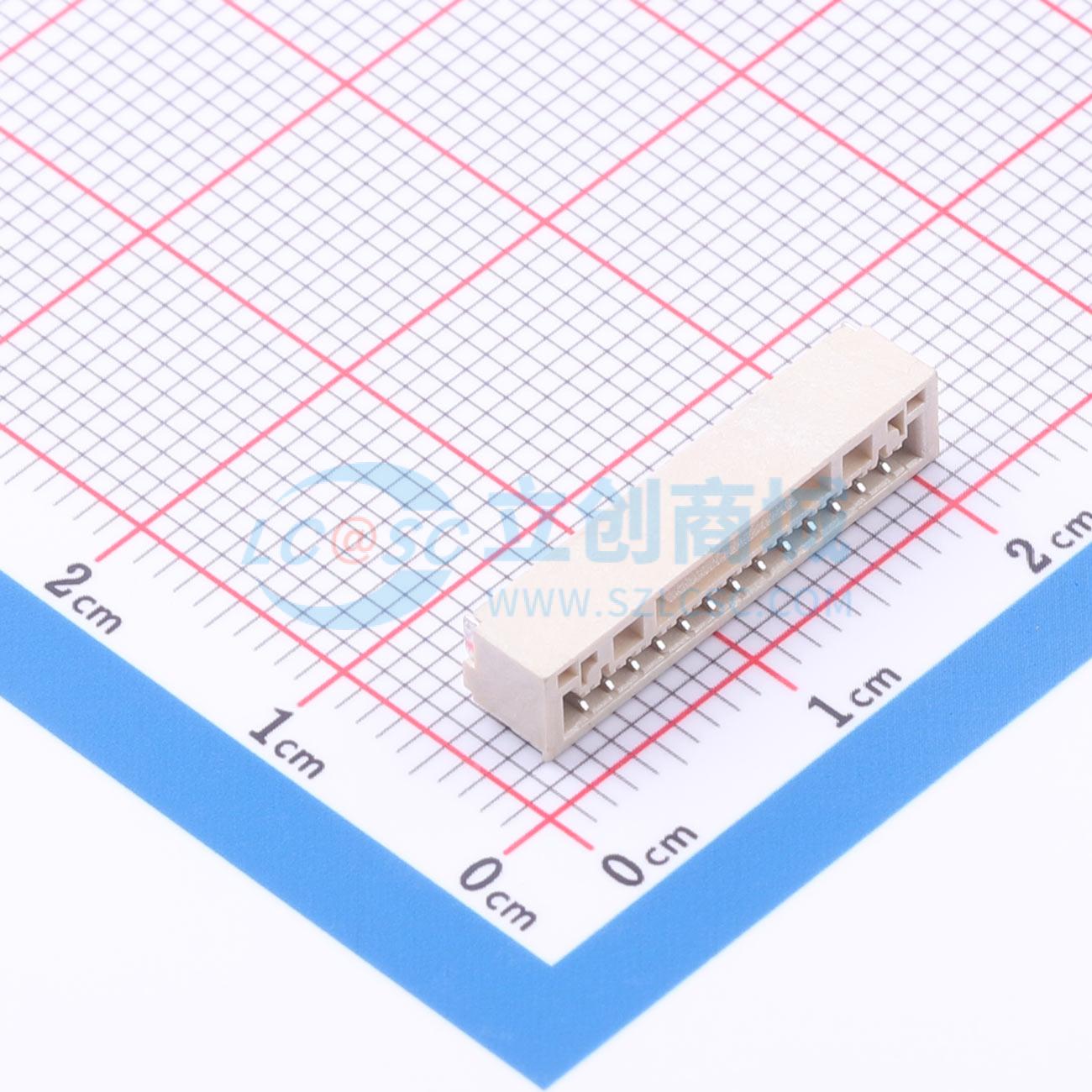

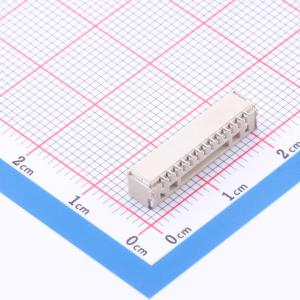

ESWF-125GH-W-13-A-A
1x13P 间距:1.25mm 卧贴 系列:GH
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 1.25间距-13pin卧贴带扣编带wafer
- 品牌名称
- ES(恩盛)
- 商品型号
- ESWF-125GH-W-13-A-A
- 商品编号
- C55271574
- 商品封装
- SMD,P=1.25mm,卧贴
- 包装方式
- 编带
- 商品毛重
- 0.628333克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x13P | |
| 间距 | 1.25mm | |
| 安装方式 | 卧贴 | |
| 参考系列 | GH | |
| 总PIN数 | 13P | |
| 排数 | 1 | |
| 每排PIN数 | 13 |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 1A | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 125V | |
| 颜色 | 白色 | |
| Z轴-板上高度 | 4.25mm | |
| X轴-板上底边长度(间距线) | 19.55mm | |
| Y轴-板上底边宽度 | 4.05mm |
