温馨提醒：图片仅供参考，商品以实物为准

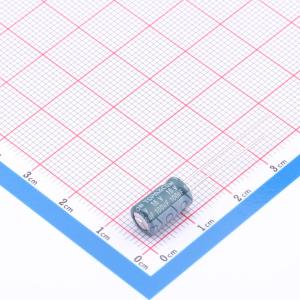

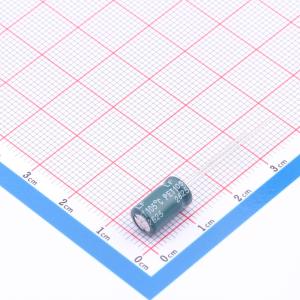

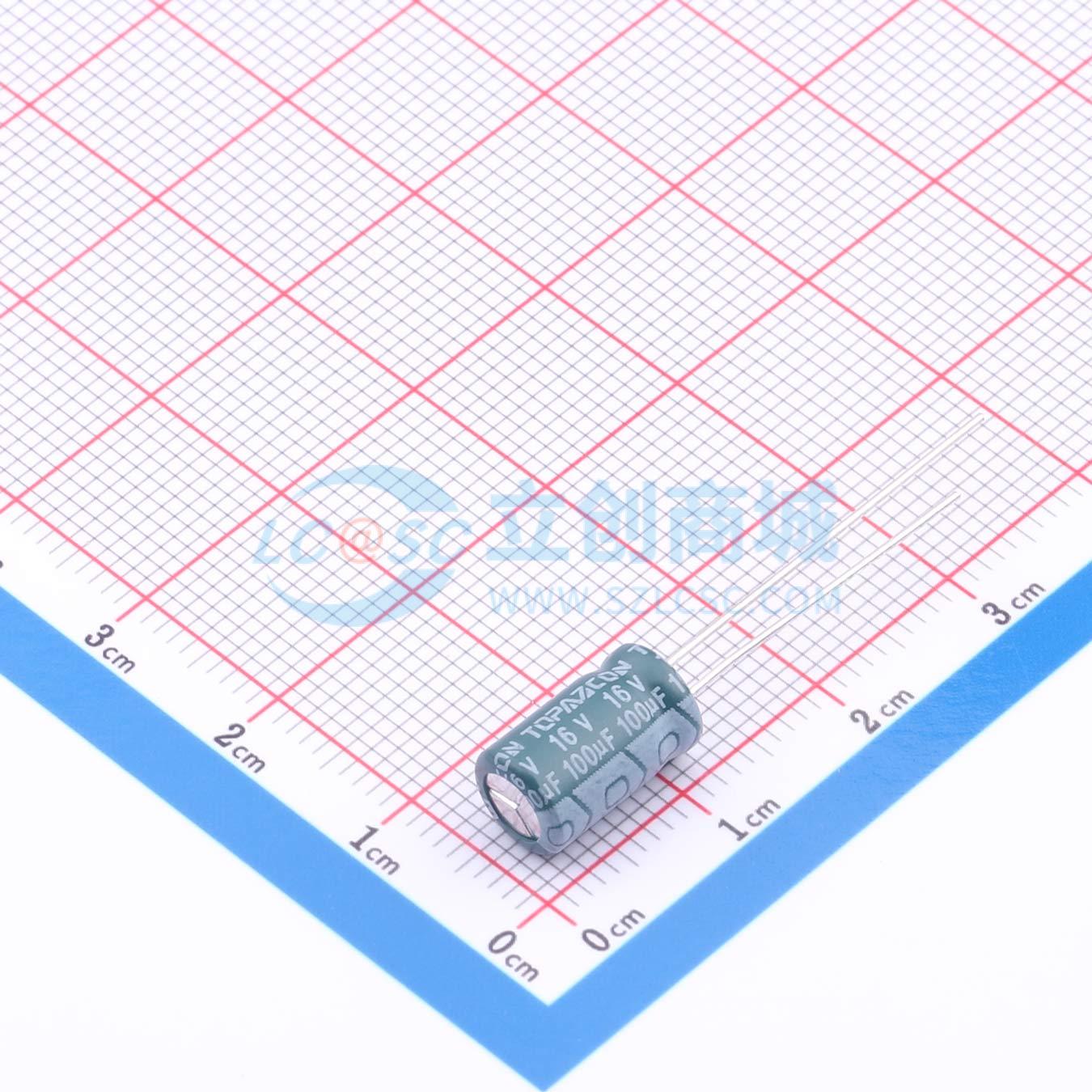

ELF1C101M061100I
100uF ±20% 16V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 100uF/16V/6.3x11/105℃/±20%/PET/3000小时/Impd:0.22Ω@100KHz/RC:340mA@100KHz
- 品牌名称
- TOPAZCON(黄宝石)
- 商品型号
- ELF1C101M061100I
- 商品编号
- C55265386
- 商品封装
- 插件,D6.3xL11mm
- 包装方式
- 袋装
- 商品毛重
- 0.6017克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 直插铝电解电容 | |
| 容值 | 100uF | |
| 精度 | ±20% | |
| 额定电压 | 16V | |
| 纹波电流 | 340mA@100kHz | |
| 等效串联电阻(ESR) | 220mΩ@100kHz |
| 属性 | 参数值 | |
|---|---|---|
| 脚间距 | 2.5mm | |
| 电容体直径 | 6.3mm | |
| 电容体长度 | 11mm | |
| 工作寿命 | 3000hrs@105℃ | |
| 工作温度 | -40℃~+105℃ |
