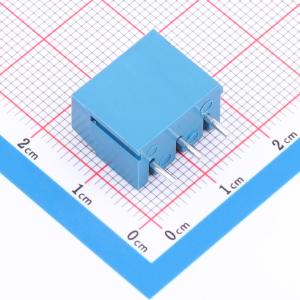

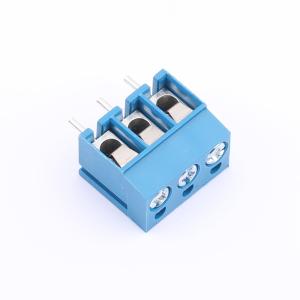

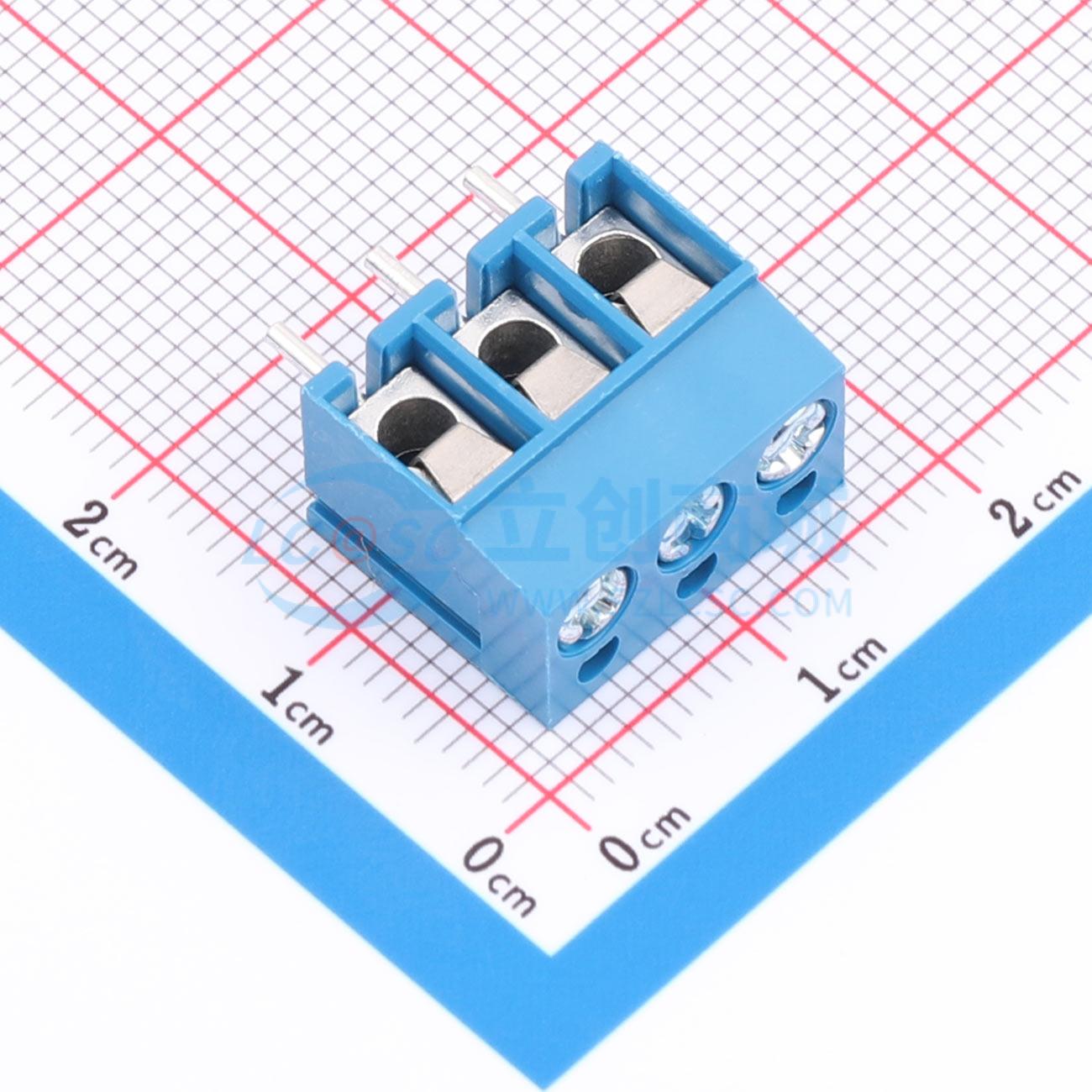

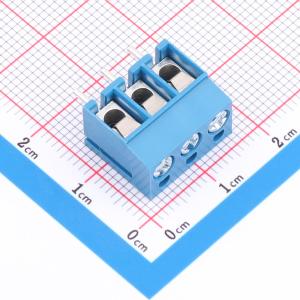

MX300V-5.00-3P-12-10AH
MX300V-5.00-3P-12-10AH
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 环保 阻燃 可拼接 直脚180度直插 弹片式 PA66 有认证
- 品牌名称
- EATS(亿思特)
- 商品型号
- MX300V-5.00-3P-12-10AH
- 商品编号
- C55238566
- 商品封装
- 插件,P=5mm
- 包装方式
- 袋装
- 商品毛重
- 3.4185克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 螺钉式接线端子 | |
| 结构 | 1x3P | |
| 间距 | 5mm | |
| 颜色 | 蓝色 | |
| 安装类型 | 直插 | |
| 总PIN数 | 3P | |
| 排数 | 1 | |
| 每排PIN数 | 3 |
| 属性 | 参数值 | |
|---|---|---|
| 螺钉规格 | M3 | |
| 额定电流 | 10A | |
| 额定电压 | 300V | |
| 线规 - AWG | 12~26 | |
| 线规 - 平方毫米 | 2.5 | |
| 工作温度 | -40℃~+105℃ | |
| 板上高度 | 12.6mm |
