温馨提醒：图片仅供参考，商品以实物为准

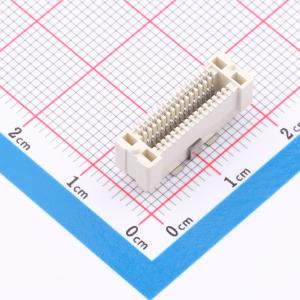

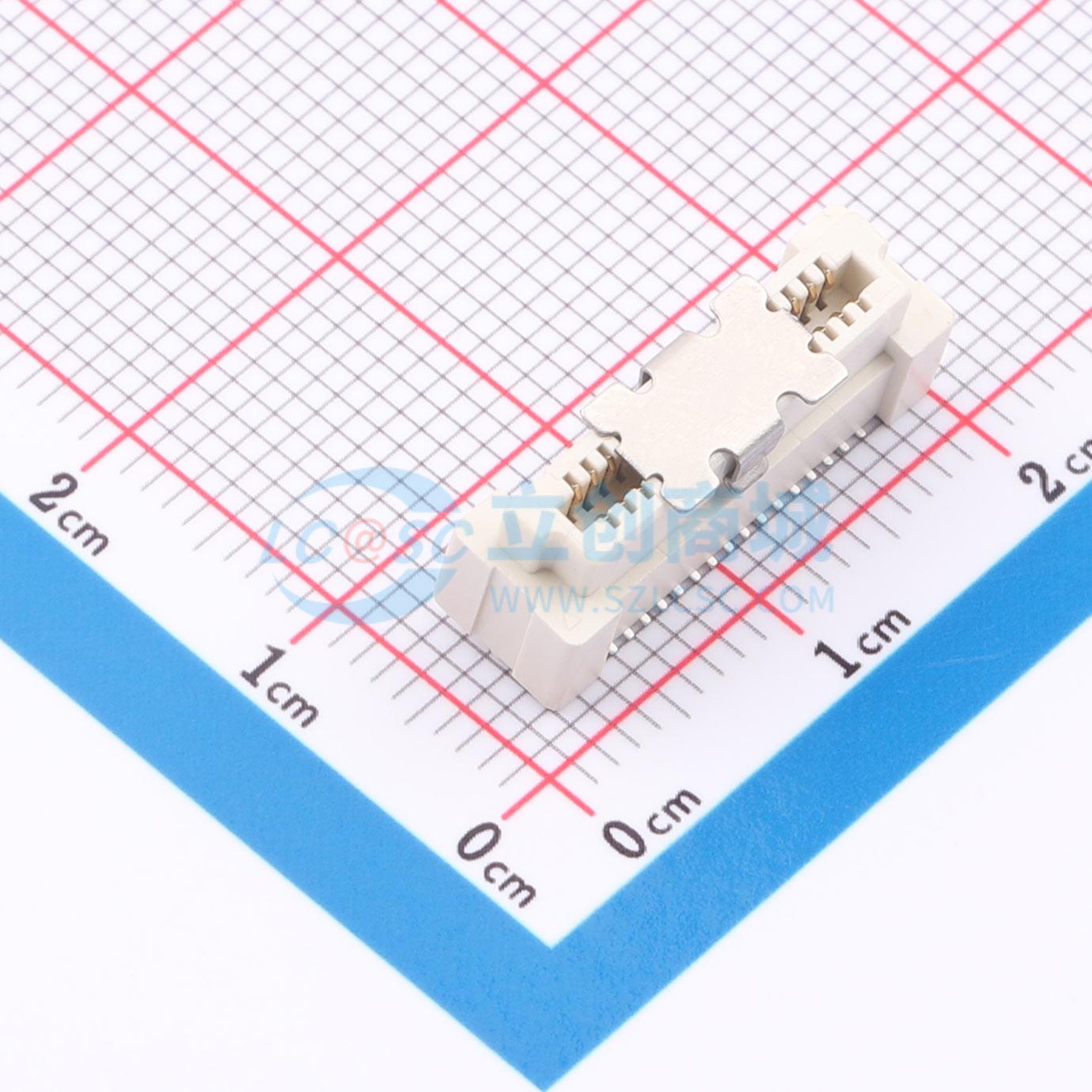

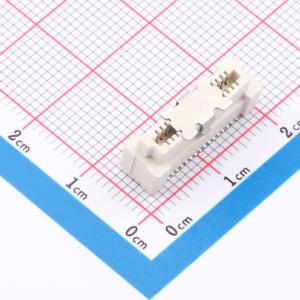

BTB0.877-32PLBDB2-MB42
PIN:32P 间距:0.8mm 立贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 0.8 PitchB型单槽立式母座(单高7.7)带柱无焊片点镀金 2*16P
- 品牌名称
- XUNPU(讯普)
- 商品型号
- BTB0.877-32PLBDB2-MB42
- 商品编号
- C55223668
- 商品封装
- SMD,P=0.8mm
- 包装方式
- 编带
- 商品毛重
- 1.174667克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 板对板与背板连接器 | |
| 总PIN数 | 32P | |
| 间距 | 0.8mm | |
| 公母 | 母 | |
| 系统配合高度 | 9mm；10mm；11mm；12mm | |
| 安装方式 | 立贴 |
| 属性 | 参数值 | |
|---|---|---|
| 排数 | 2 | |
| 额定电压 | 100V | |
| 连接方式 | 槽型对接 | |
| 触头材质 | 铜合金 | |
| 触头镀层 | 金 | |
| 工作温度 | -40℃~+85℃ |
