温馨提醒：图片仅供参考，商品以实物为准

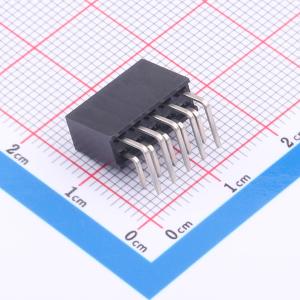

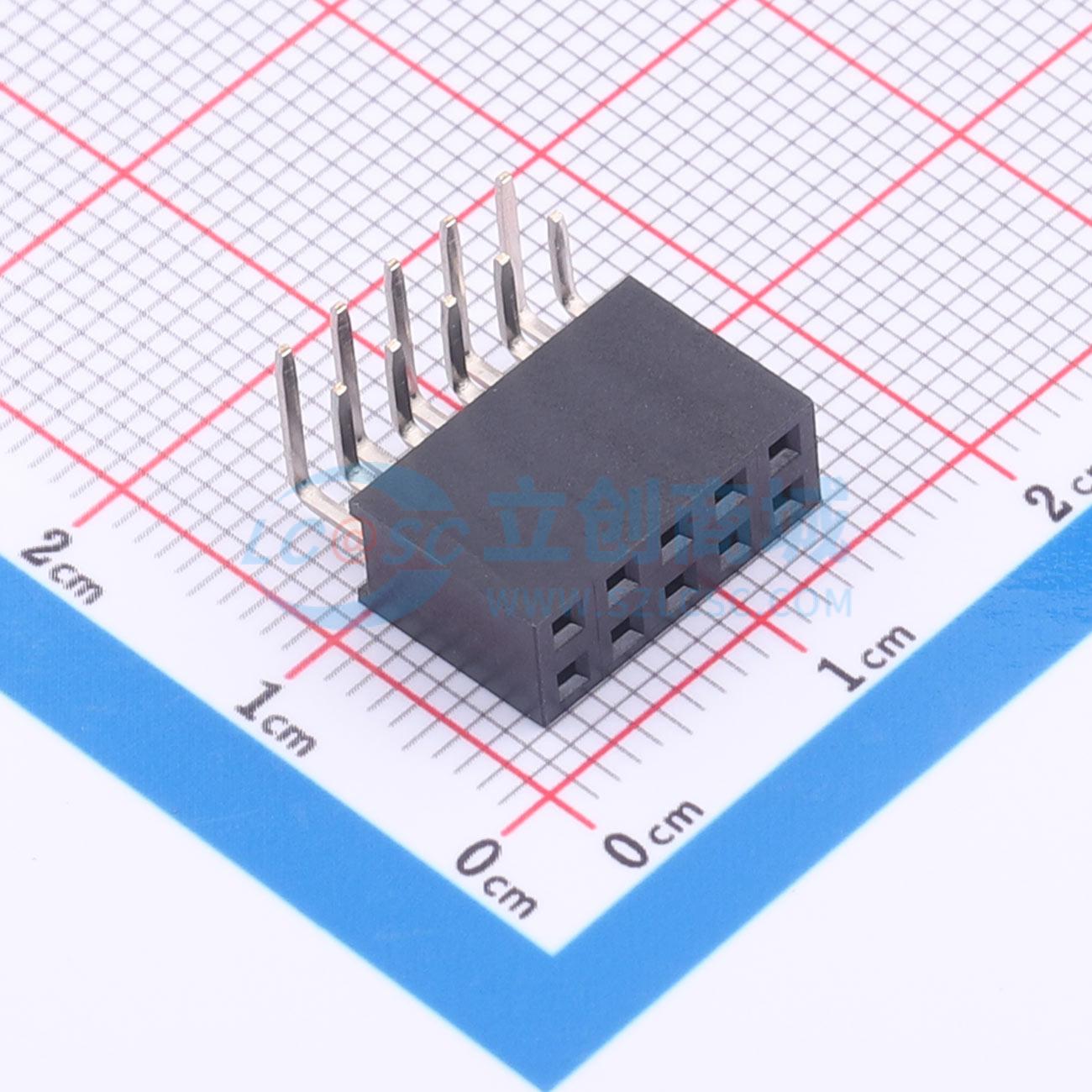

PM2.54-2x5PWZ-H8.5
2x2P 间距:2.54mm 弯插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 镀金，弯针/弯插，塑高H8.5mm，下针长3.2mm，6T耐温阻燃环保
- 品牌名称
- SHOU HAN(首韩)
- 商品型号
- PM2.54-2x5PWZ-H8.5
- 商品编号
- C55218882
- 商品封装
- 弯插,P=2.54mm
- 包装方式
- 管装
- 商品毛重
- 1.83913克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排母 | |
| 插孔结构 | 2x2P | |
| 间距 | 2.54mm | |
| 行距 | - | |
| 圆孔/方孔 | 方孔 | |
| 安装方式 | 弯插 | |
| 排数 | 双排 | |
| 总孔位数 | 5P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3A | |
| 额定电压 | 1kV | |
| 插孔方向 | 侧面 | |
| 塑高 | 8.5mm | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -40℃~+105℃ | |
| 针脚长度 | 4.2mm |
