温馨提醒：图片仅供参考，商品以实物为准

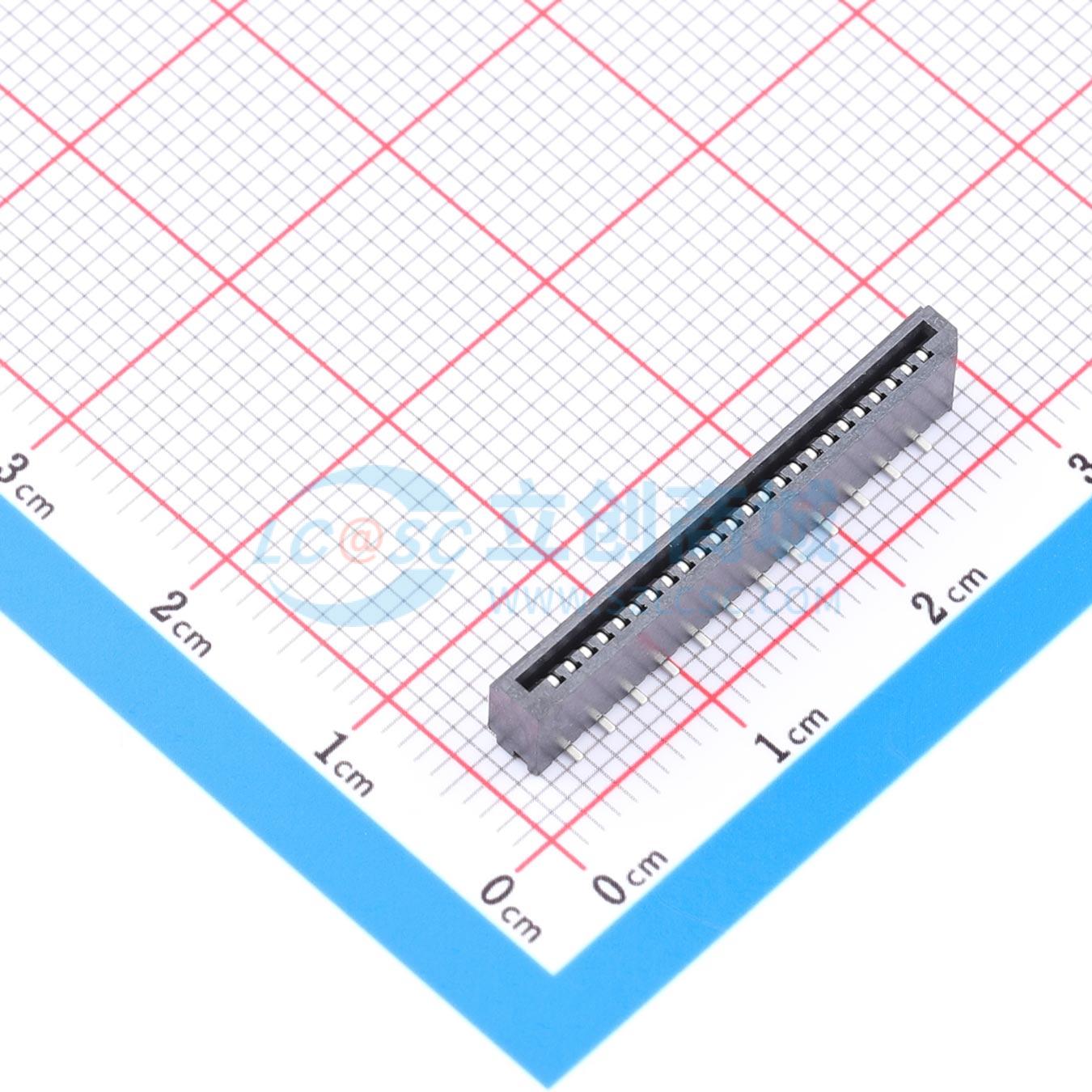

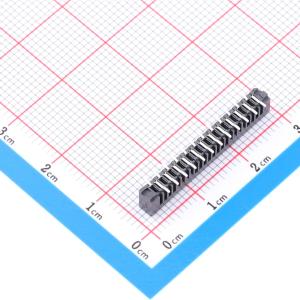

5001-FCZ1055-24R1-00-B
无锁 单侧触点/垂直 P数:24P 间距:1mm
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 无锁 单侧触点/垂直 P数:24P 间距:1mm
- 品牌名称
- JMEconn(文章济美)
- 商品型号
- 5001-FCZ1055-24R1-00-B
- 商品编号
- C55200842
- 商品封装
- SMD,P=1mm(交错脚)
- 包装方式
- 编带
- 商品毛重
- 1.566667克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | FFC/FPC连接器 | |
| 锁定特性 | 无锁 | |
| 触点类型 | 单侧触点/垂直 | |
| 触点数量 | 24P | |
| 间距 | 1mm | |
| 安装方式 | 立贴 | |
| 接入柔性电缆厚度 | 0.3mm |
| 属性 | 参数值 | |
|---|---|---|
| 板上高度 | 5.5mm | |
| 触头材质 | 铜合金 | |
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 50V | |
| FPC/FFC扣 | 不带扣 | |
| 正脚/反脚 | 正脚 |
