温馨提醒：图片仅供参考，商品以实物为准

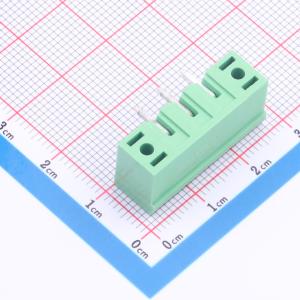

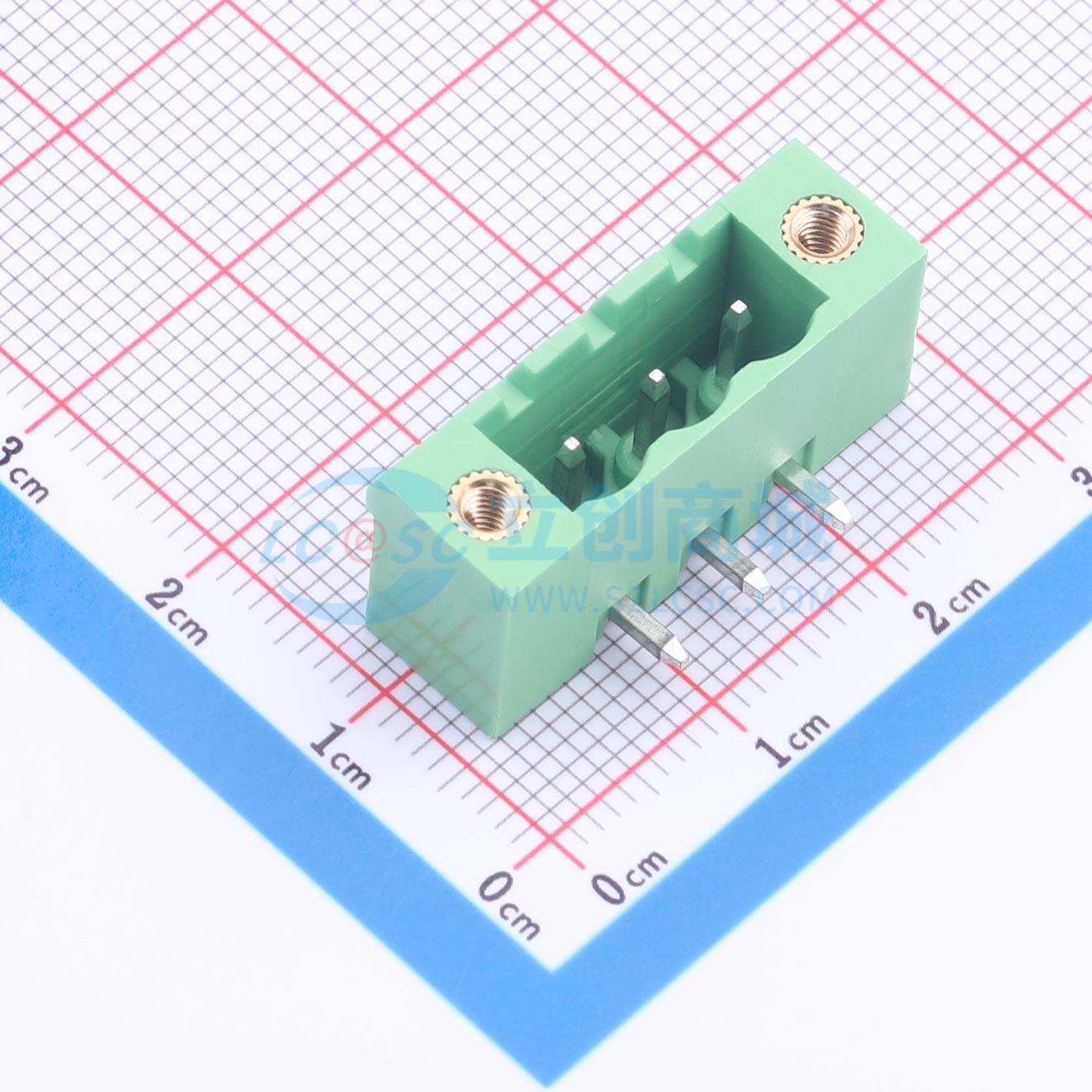

LAIL-PTB5.08-3P-GN-03S-WC
1x3P 5.08mm 排数:1 每排P数:3
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- LAILAN(莱联)
- 商品型号
- LAIL-PTB5.08-3P-GN-03S-WC
- 商品编号
- C55145051
- 商品封装
- 弯插,P=5.08mm
- 包装方式
- 袋装
- 商品毛重
- 2.531409克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 插拔式接线端子 | |
| 连接器类型 | 板端/插座-闭口 | |
| 结构 | 1x3P | |
| 间距 | 5.08mm | |
| 颜色 | 绿色 | |
| 安装方式 | 弯插 |
| 属性 | 参数值 | |
|---|---|---|
| 总PIN数 | 3P | |
| 排数 | 1 | |
| 每排PIN数 | 3 | |
| 额定电流 | 15A | |
| 额定电压 | 300V | |
| 工作温度 | -40℃~+105℃ |
