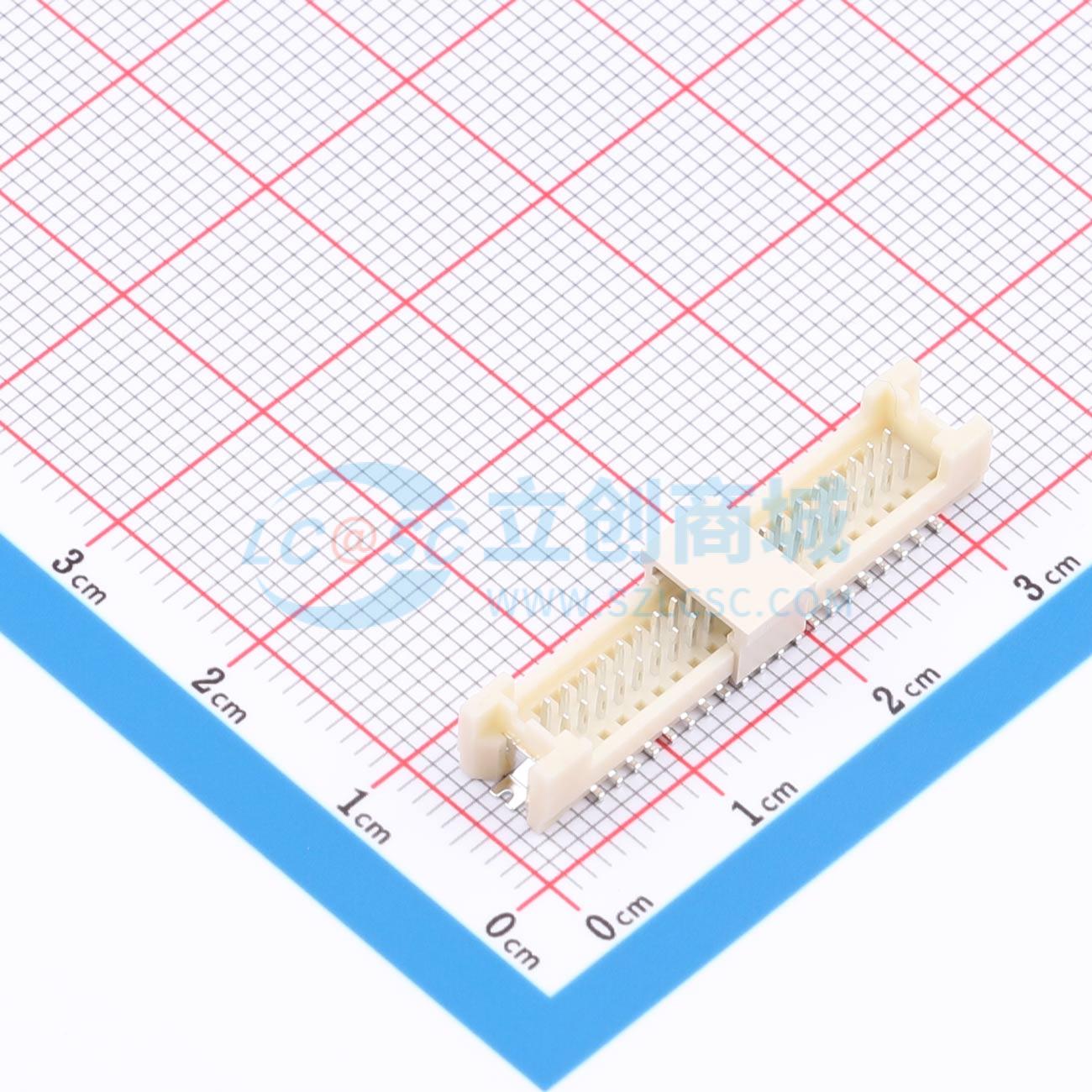

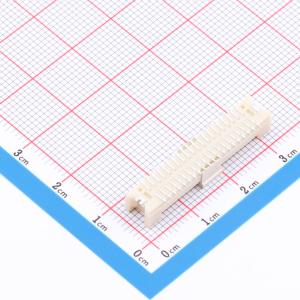

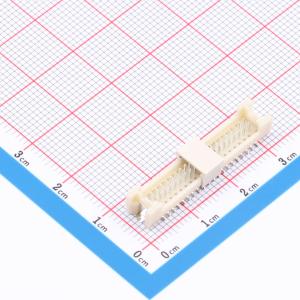

XY-DF1.25-40A51-TB
2x20P 间距:1.25mm
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- XYECONN(辛译)
- 商品型号
- XY-DF1.25-40A51-TB
- 商品编号
- C55137794
- 商品封装
- SMD,P=1.25mm
- 包装方式
- 编带
- 商品毛重
- 1.213克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x20P | |
| 间距 | 1.25mm | |
| 总PIN数 | 40P | |
| 排数 | 2 | |
| 每排PIN数 | 20 |
| 属性 | 参数值 | |
|---|---|---|
| 行距 | 1.25mm | |
| 额定电流 | 1A | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 150V | |
| Z轴-板上高度 | 5mm | |
| Y轴-板上底边宽度 | 7.25mm |
