温馨提醒：图片仅供参考，商品以实物为准

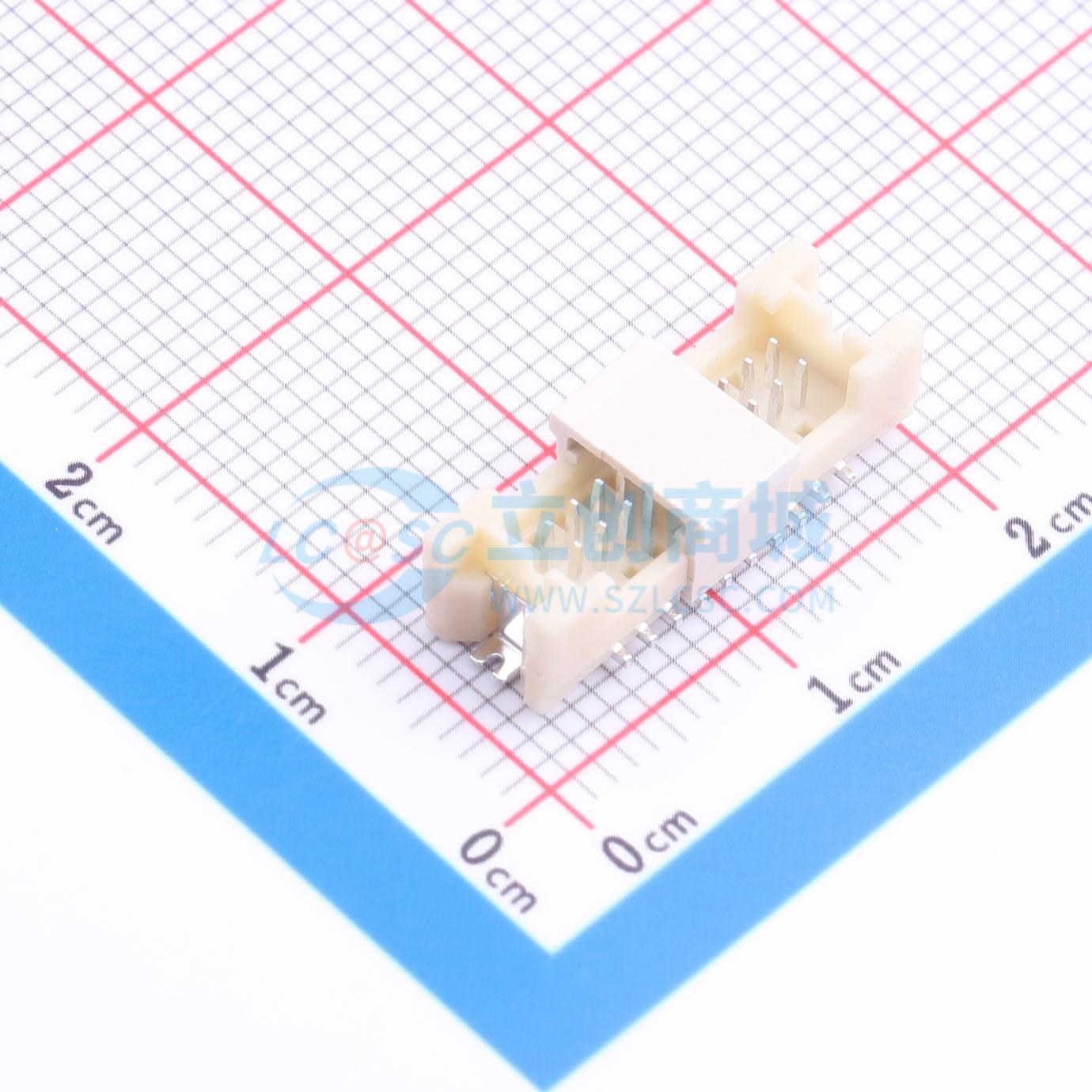

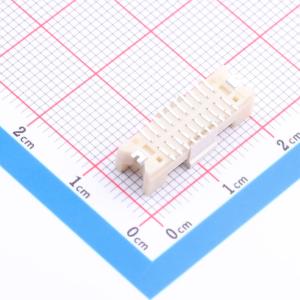

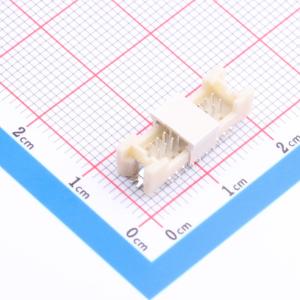

XY-DF1.25-20A51-TD
2x10P 间距:1.25mm 立贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- XYECONN(辛译)
- 商品型号
- XY-DF1.25-20A51-TD
- 商品编号
- C55137771
- 商品封装
- SMD,P=1.25mm
- 包装方式
- 编带
- 商品毛重
- 0.821克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x10P | |
| 间距 | 1.25mm | |
| 安装方式 | 立贴 | |
| 总PIN数 | 20P | |
| 排数 | 2 | |
| 每排PIN数 | 10 |
| 属性 | 参数值 | |
|---|---|---|
| 行距 | 1.25mm | |
| 额定电流 | 1A | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 150V | |
| Z轴-板上高度 | 5mm | |
| X轴-板上底边长度(间距线) | 18.75mm | |
| Y轴-板上底边宽度 | 7.25mm |
