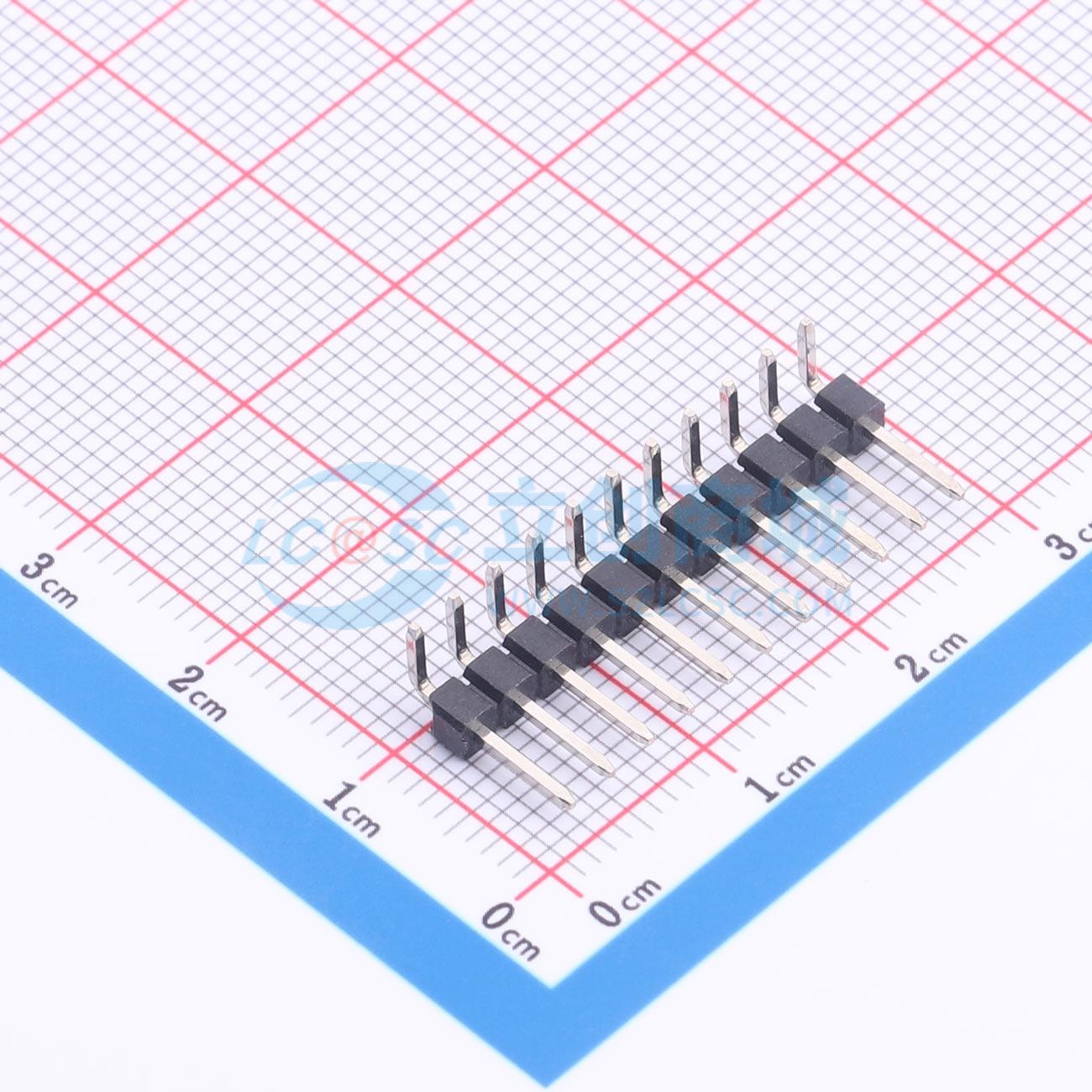

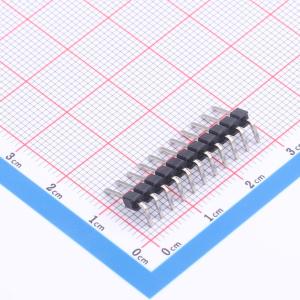

温馨提醒：图片仅供参考，商品以实物为准
FG-PZ2.54-01-11PW
1x11P 间距:2.54mm 方针 弯插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 排针2.54mm 间距 1*11 塑高2.54 弯插 ROHS
- 品牌名称
- FG(富港)
- 商品型号
- FG-PZ2.54-01-11PW
- 商品编号
- C55130783
- 商品封装
- 弯插,P=2.54mm
- 包装方式
- 袋装
- 商品毛重
- 0.7208克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排针 | |
| 插针结构 | 1x11P | |
| 间距 | 2.54mm | |
| 行距 | - | |
| 圆针/方针 | 方针 | |
| 安装方式 | 弯插 | |
| 排数 | 单排 |
| 属性 | 参数值 | |
|---|---|---|
| 总PIN位数 | 11P | |
| 配合针长度 | 6mm | |
| 塑高 | 2.5mm | |
| 端接针长度 | - | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 |
