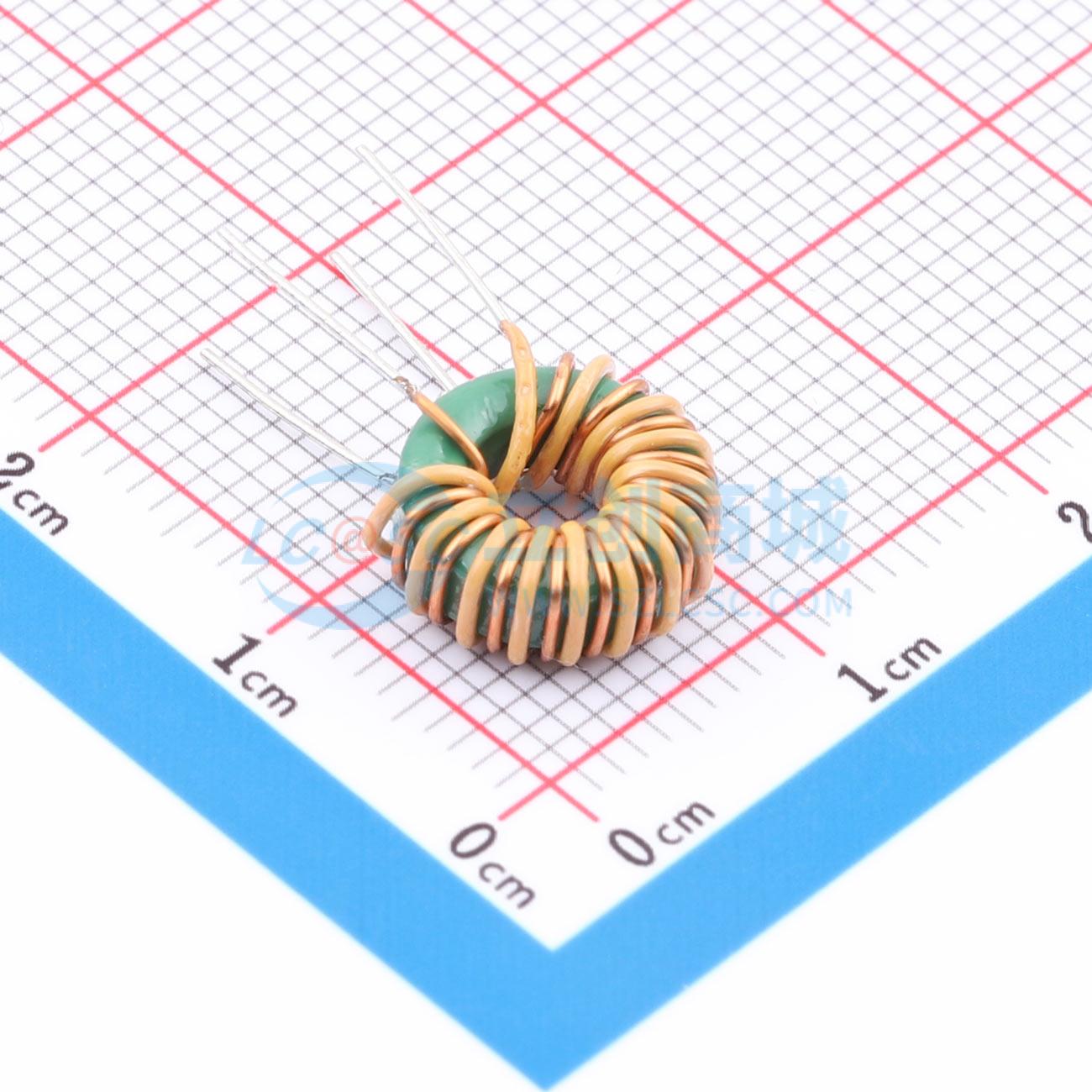

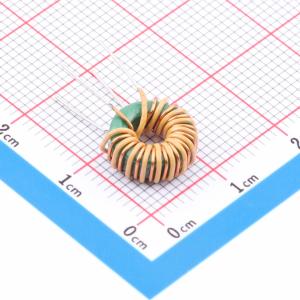

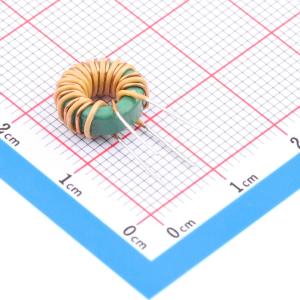

温馨提醒：图片仅供参考，商品以实物为准
TCMCAT953-102MINB042P
1mH 12X11mm 4A
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 插件，共模滤波器，共模电感，环形电感，磁环,过ENC 感值：1mH,精度：Min，直流电阻(DCR):55mΩ +20%,额定电流：4A，插件,12x11x6mm
- 品牌名称
- SXN(顺翔诺)
- 商品型号
- TCMCAT953-102MINB042P
- 商品编号
- C55115090
- 商品封装
- DIP-4P,D=12mm
- 包装方式
- 袋装
- 商品毛重
- 1.1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 共模滤波器 | |
| 线路数 | 2 | |
| 电感@频率 | 1mH@1kHz | |
| 额定电流 | 4A |
| 属性 | 参数值 | |
|---|---|---|
| 耐电压 | 1.5kV | |
| 直流电阻(DCR) | 55mΩ | |
| 工作温度 | -40℃~+125℃ |
