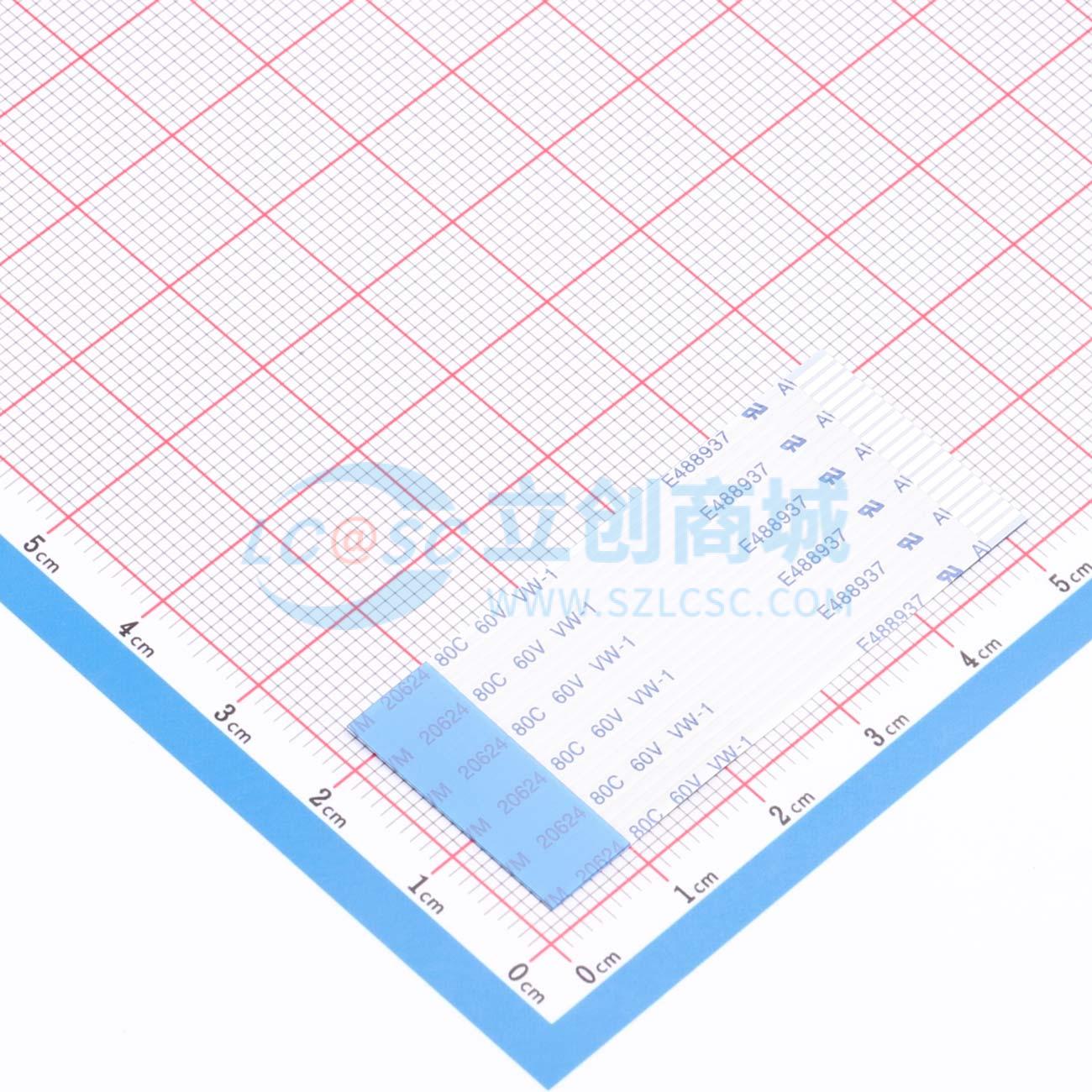

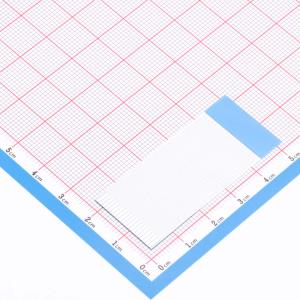

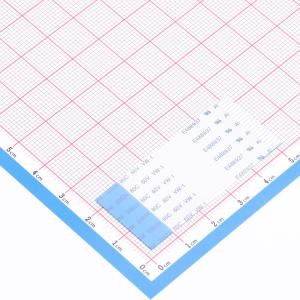

温馨提醒：图片仅供参考，商品以实物为准
1.0x20x50xB(4/4/8/8)(0.035x0.65)
1.0x20x50xB(4/4/8/8)(0.035x0.65)
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- LX(连线电子)
- 商品型号
- 1.0x20x50xB(4/4/8/8)(0.035x0.65)
- 商品编号
- C55113976
- 商品封装
- P=1mm
- 包装方式
- 袋装
- 商品毛重
- 0.452克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | FFC连接线(柔性扁平线缆) | |
| 总PIN数 | 20P | |
| 间距 | 1mm | |
| 插入厚度 | 0.3mm | |
| 触点 | 反向 |
| 属性 | 参数值 | |
|---|---|---|
| 总长度 | 5cm | |
| 补强板长度 | 8mm | |
| 金手指长度 | 4mm | |
| 是否带补强 | 双端补强 |
