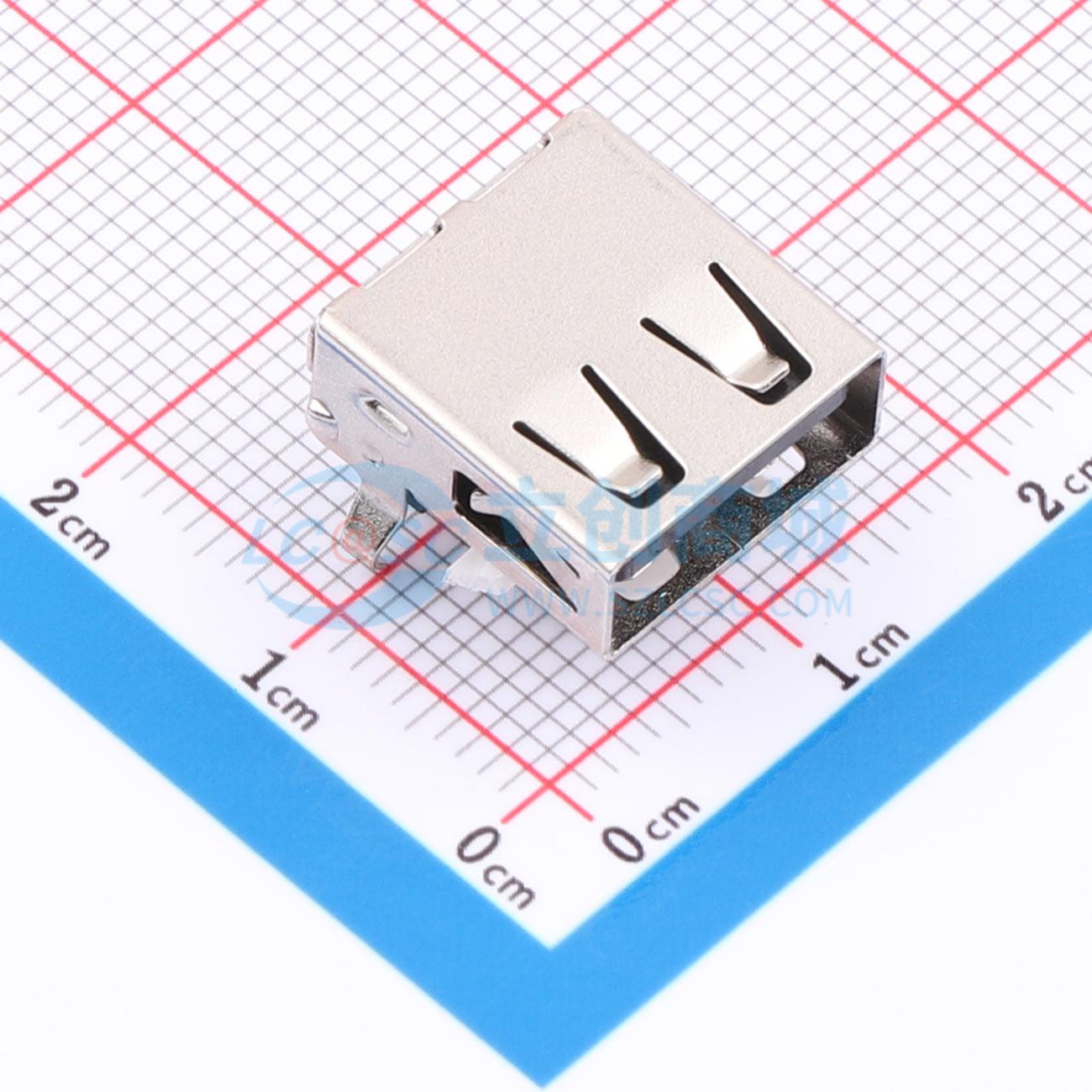

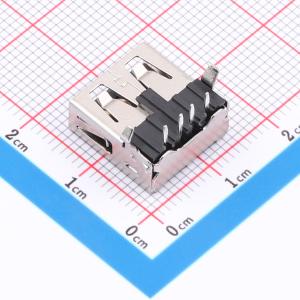

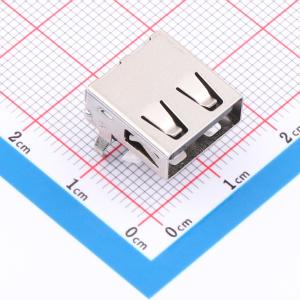

LAIL-TYPE-A-4P-03-WC
Type-A 母 弯插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 品牌名称
- LAILAN(莱联)
- 商品型号
- LAIL-TYPE-A-4P-03-WC
- 商品编号
- C55094583
- 商品封装
- 插件
- 包装方式
- 托盘
- 商品毛重
- 2.096162克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | USB连接器 | |
| 连接器类型 | Type-A | |
| 协议标准 | USB 2.0 | |
| 公母 | 母 | |
| 安装方式 | 弯插 | |
| 触点数量 | 4P |
| 属性 | 参数值 | |
|---|---|---|
| 端口数量 | 1 | |
| 额定电流 - 电源 | 1.5A | |
| 额定电压 | 30V | |
| 插拔寿命 | 5千次 | |
| 工作温度 | -25℃~+85℃ |
