温馨提醒：图片仅供参考，商品以实物为准

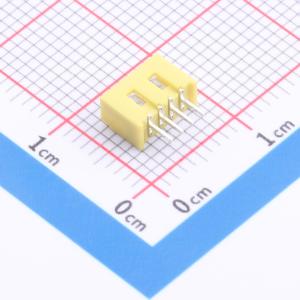

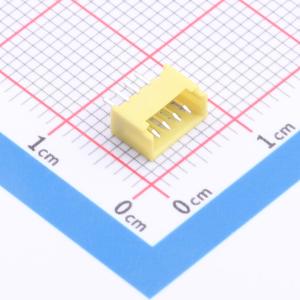

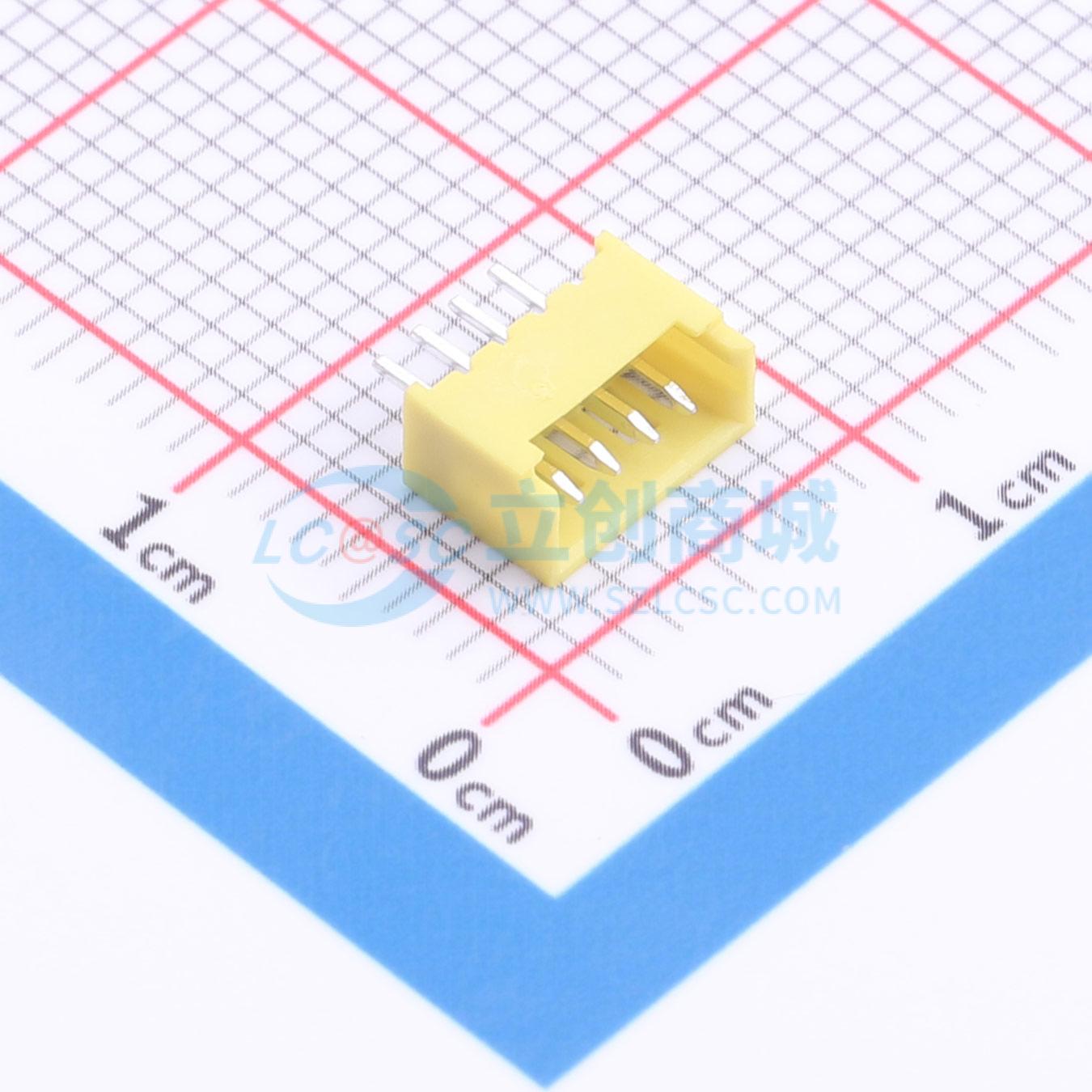

HMT-MX1.25-ZZH4P
1x4P 间距:1.25mm 直插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 1x4P 间距:1.25mm 直插 参考系列:PicoBlade(MX 1.25)
- 品牌名称
- HMTCONN(华明通)
- 商品型号
- HMT-MX1.25-ZZH4P
- 商品编号
- C55034930
- 商品封装
- 插件,P=1.25mm
- 包装方式
- 袋装
- 商品毛重
- 0.10405克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x4P | |
| 间距 | 1.25mm | |
| 安装方式 | 直插 | |
| 总PIN数 | 4P | |
| 排数 | 1 | |
| 每排PIN数 | 4 | |
| 触头材质 | 铜合金 | |
| 触头镀层 | 锡 |
| 属性 | 参数值 | |
|---|---|---|
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 125V | |
| 塑料材质 | PA66 | |
| 阻燃等级 | UL94V-2 | |
| 颜色 | 黄色 | |
| Z轴-板上高度 | 4.7mm | |
| X轴-板上底边长度(间距线) | 6.8mm | |
| Y轴-板上底边宽度 | 3.2mm |
