温馨提醒：图片仅供参考，商品以实物为准

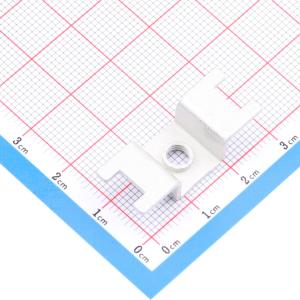

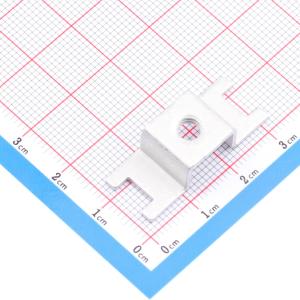

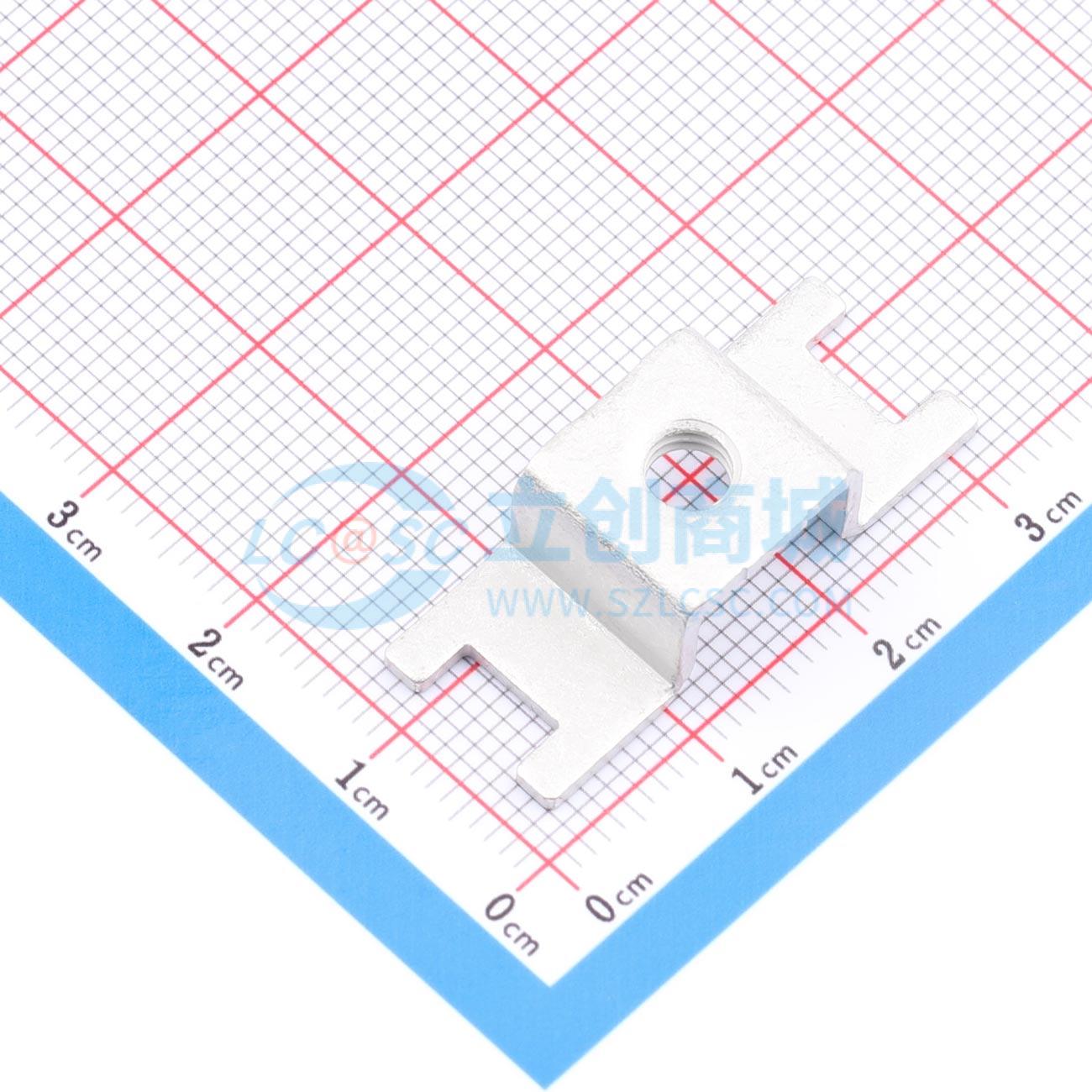

FG-M54-12-3011-SMT-C-01
FG-M54-12-3011-SMT-C-01
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- PCB焊接端子 厚度1.2 贴片 抽牙 M5 4焊脚 30x11.5x7.9mm
- 品牌名称
- FG(富港)
- 商品型号
- FG-M54-12-3011-SMT-C-01
- 商品编号
- C55014534
- 商品封装
- SMD-4P,30x11.5mm
- 包装方式
- 袋装
- 商品毛重
- 4.254克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | PCB焊接端子 | |
| 外观形状 | 贴片型 | |
| 螺孔规格 | M5 | |
| 本体高度 | 7.9mm |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 70A | |
| 本体材质 | 黄铜 | |
| 本体镀层 | 锡 | |
| 连接方向 | 顶部 |
