温馨提醒：图片仅供参考，商品以实物为准

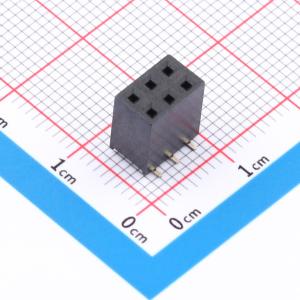

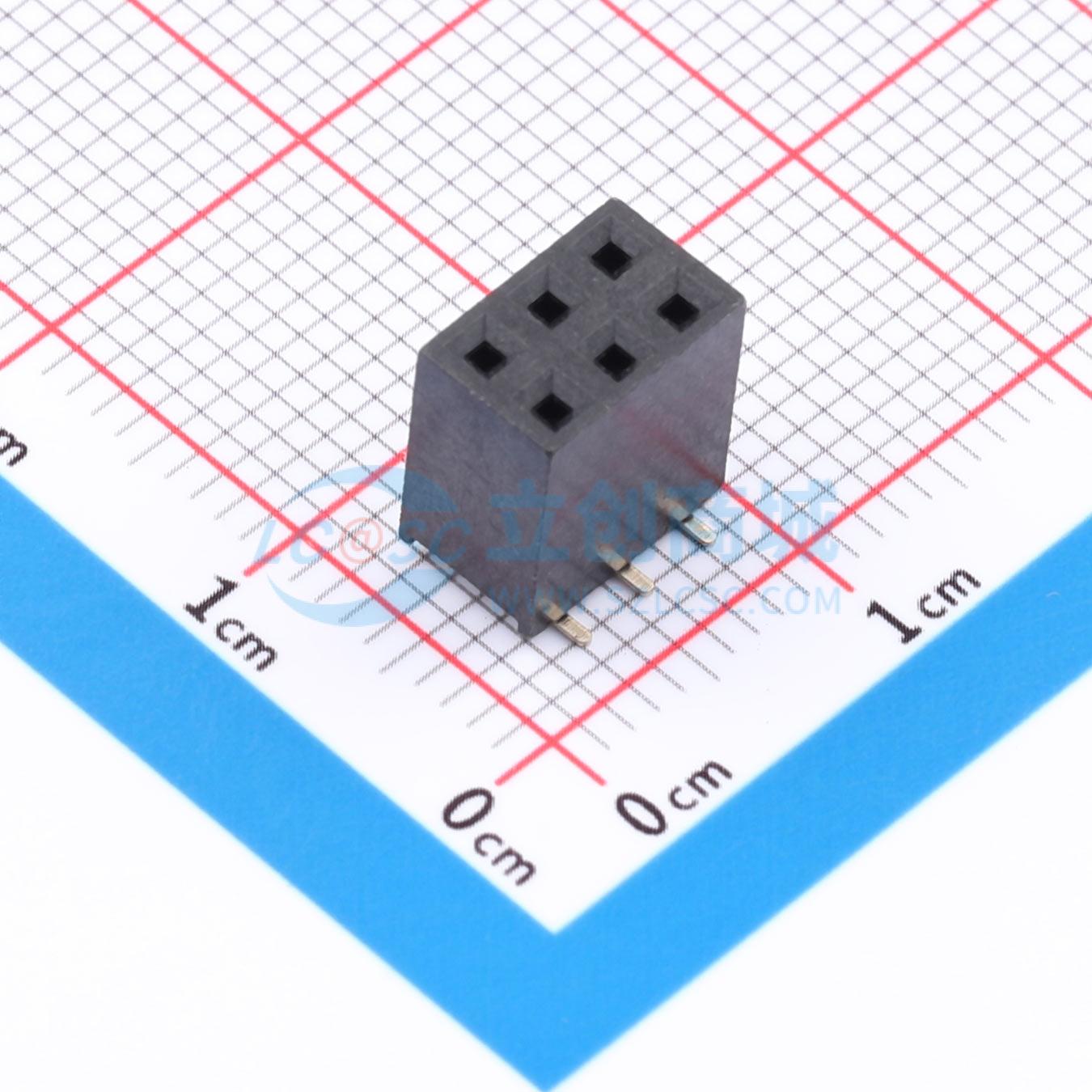

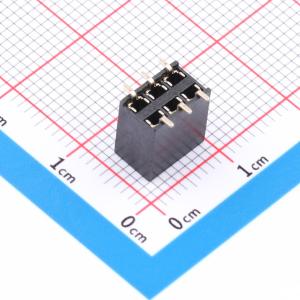

LAIL-PM2.54-3PX2-T
2x3P 间距:2.54mm
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 2x3P 间距2.54mm 立贴
- 品牌名称
- 莱联
- 商品型号
- LAIL-PM2.54-3PX2-T
- 商品编号
- C54973814
- 商品封装
- SMD,P=2.54mm
- 包装方式
- 管装
- 商品毛重
- 0.995775克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 排母 | |
| 插孔结构 | 2x3P | |
| 间距 | 2.54mm | |
| 行距 | 2.54mm | |
| 圆孔/方孔 | 方孔 | |
| 排数 | 双排 | |
| 总孔位数 | 6P |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3A | |
| 额定电压 | 250V | |
| 插孔方向 | 顶部 | |
| 塑高 | 8.5mm | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -25℃~+80℃ |
